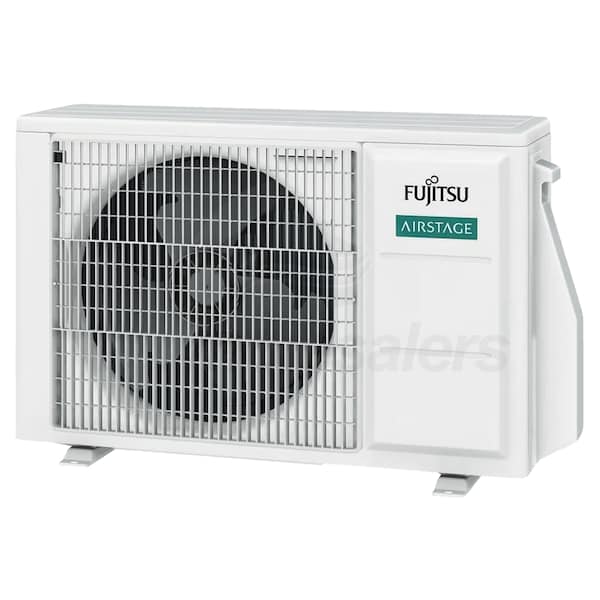

Fujitsu - 9k BTU - LZAH1 Outdoor Condenser - Single Zone Only

Model: AOUG09LZAH1 Item Number: 106451
Fujitsu AOUG09LZAH1
PREVIOUS
NEXT
Fujitsu AOUG09LZAH1
Enlarge Image
Our Price: $1,303.00
synchrony card icon
$218 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Friday, November 22nd
Shipping to60601
Fujitsu - 9k BTU - LZAH1 Outdoor Condenser - Single Zone Only
Fujitsu - 9k BTU - LZAH1 Outdoor Condenser - Single Zone Only Model: AOUG09LZAH1 Item Number: 106451
$1,303.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    86 Pounds Learn More
    86 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fujitsu AOUG09LZAH1

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center for alternate options.
  • Inverter Technology
  • The AOUG09LZAH1 outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a blue fin coating to the heat exchanger of the outdoor condenser. This improves its resistance to many common sources of corrosion and extends the unit's longevity.
  • Product Note
    This product requires a compatible Fujitsu mini split indoor unit and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser. The bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.


    Fujitsu provides a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at fujitsugeneral.com/us/support/downloads/halcyon/warranty.html.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Outdoor Condenser
    Product Line
    Airstage LZAH
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Outdoor Unit Size
    9000 BTU
    Performance
    Cooling BTU
    9000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    47 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -15 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Maximum Line Length
    66 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    24 7/8 Inches
    Product Width
    31 7/16 Inches
    Product Depth
    11 7/16 Inches
    Product Weight
    86 Pounds
    Shipping Height
    27 1/4 Inches
    Shipping Width
    37 Inches
    Shipping Depth
    14 3/4 Inches
    Shipping Weight
    95 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
