Fujitsu Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 12k + 12k Indoor - 19.0 SEER2

Model: F4H36W07071212 Item Number: 65973
Fujitsu F4H36W07071212
PREVIOUS
NEXT
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Enlarge Image
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
Fujitsu F4H36W07071212
View All
Originally $5,551.00, you save 5%
Our Price: $5,273.45
synchrony card icon
$66 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Monday, November 25th
Shipping to60601
Fujitsu Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 12k + 12k Indoor - 19.0 SEER2
Fujitsu Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 12k + 12k Indoor - 19.0 SEER2 Model: F4H36W07071212 Item Number: 65973
$5,273.45
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    210 Pounds Learn More
    210 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 5 items
  • product image

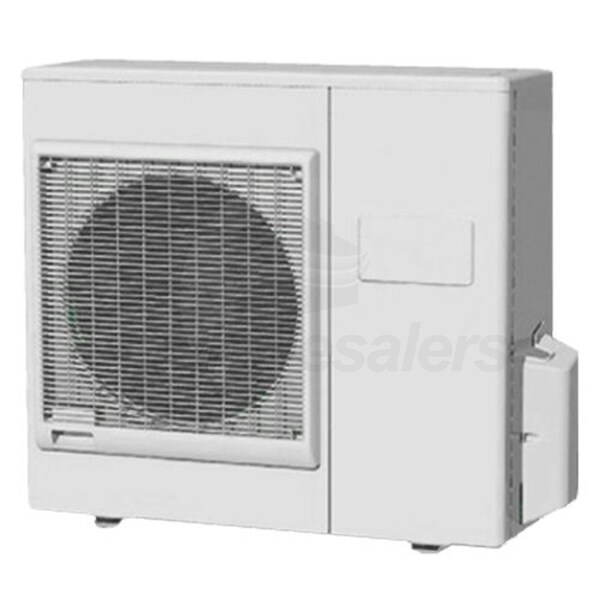

    (1) Fujitsu - 36k BTU - RLXFZ1 Outdoor Condenser - For 2-4 Zones (AOU36RLXFZ1)
  • product image

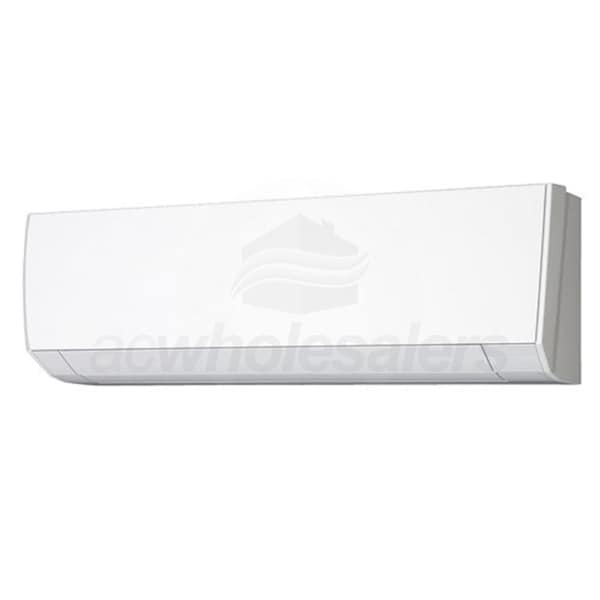

    (2) Fujitsu - 12k BTU - Wall Mounted Unit - For Multi or Single-Zone (ASUH12LPAS)
  • product image
    (2) Fujitsu - 7k BTU - Wall Mounted Unit - For Multi or Single-Zone (ASUH07LPAS)
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Enhanced Heating Capacity
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F4H36W07071212

Fujitsu's Multizone systems can have a multitude of combinations with wall mounted, compact cassette or slim duct type indoor units. Mix-and-match flexibility of evaporator type and capacity allows you to choose the indoor unit that best fits the application, whether it be hidden or showcased. These systems are ideal for nursing homes, doctor's offices, condominiums, apartments and residences - any place where individual cooling or heating is needed.
  • Inverter Technology
  • Inverter technology drives the compressor, allowing it to match output to demand. The result: a more stable and comfortable temperature within the space. This type of operation removes more moisture, reduces short-cycling, and improves efficiency.
  • Increased Connectable Capacity
  • Connect indoor units with as much as 130% of the outdoor unit capacity, allowing design flexibility. If all zones are active, indoor units will run at reduced output. As zones are satisfied, output will be redistributed zones that are still active.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a blue fin coating to the heat exchanger of their outdoor condensers. This improves their resistance to many common sources of corrosion and extends their longevity.
  • Advanced Filtration
  • A washable ion deodorizing filter uses fine ceramic particles to capture and remove odors. An apple catechin filter isolates and deactivates mold, bacteria, and dust. This combination creates a clean and healthy air flow from your indoor unit.
  • Timer Function
  • You can set a sleep timer to gradually decrease the output after you have gone to bed. It also supports a 24-hour timer, allowing you to set on and off time once per day. These timers allow you to curtail energy use without sacrificing comfort.
  • Dehumidify and Cool
  • Dry Mode demonstrates the Halcyon HFI's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Airflow Control
  • Swing mode disperses conditioned air evenly across your zone, resulting in consistent and thorough heating and cooling. Swing mode can be used with this unit's auto fan mode and auto changeover for automated comfort in rooms of all shapes and sizes.
  • Power Diffuser
  • This unit includes an airflow louver known as a power diffuser that directs heated air to the floor of the room and cold air outwards to blanket the room. This diffuser uses temperature sensors to ensure that your airflow is ideal in any application.
  • Economy Mode
  • The Halcyon HFI features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
  • Recommended line set sizes for indoor unit connectivity:
  • ASUH12LPAS: 1/4" x 3/8" Line Set (Qty 2)
  • ASUH07LPAS: 1/4" x 3/8" Line Set (Qty 2)
  • Product Note
    This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 5 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Wall Mounted
    Product Line
    Airstage HFI
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    4
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    7 + 7 + 12 + 12
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling Capacity
    35200 BTU
    Heating Capacity
    36400 BTU
    Cooling Power Input
    4000 Watts
    Heating Power Input
    3000 Watts
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    19.0
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    10.0
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.0
    Dimensions
    Product Weight
    210 Pounds
    Shipping Weight
    210 Pounds
    Certifications
    AHRI Certified
    Yes
    AHRI Reference Number
    8071537
    General Information
    Type
    Outdoor Condenser
    Product Line
    Airstage HFI RLXFZ
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    4
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Product Height
    32 11/16 Inches
    Product Width
    35 7/16 Inches
    Product Depth
    13 Inches
    Product Weight
    149 Pounds
    Shipping Width
    41 5/16 Inches
    Shipping Height
    38 3/16 Inches
    Shipping Depth
    17 1/2 Inches
    Shipping Weight
    165 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Wall Mounted
    Product Line
    Airstage LPAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    453 CFM
    Minimum Air Flow
    147 CFM
    Minimum Sound Level
    19 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    43 dB
    Electrical Data
    Voltage
    208/225 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 5/8 Inches
    Product Width
    32 13/16 Inches
    Product Depth
    8 3/4 Inches
    Product Weight
    29 Pounds
    Shipping Height
    10 7/8 Inches
    Shipping Width
    36 Inches
    Shipping Depth
    13 1/16 Inches
    Shipping Weight
    38 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    Airstage LPAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    7
    Installation Location
    Indoor
    Performance
    Cooling BTU
    7000
    Cooling Capacity
    7000 BTU
    Maximum Air Flow
    424 CFM
    Minimum Air Flow
    188 CFM
    Minimum Sound Level
    21 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    41 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 5/8 Inches
    Product Width
    32 13/16 Inches
    Product Depth
    8 3/4 Inches
    Product Weight
    21 Pounds
    Shipping Width
    10 7/8 Inches
    Shipping Height
    36 Inches
    Shipping Depth
    13 1/16 Inches
    Shipping Weight
    26 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
