Fujitsu Wall Mount 4-Zone System - 45,000 BTU Outdoor - 7k + 7k + 9k + 24k Indoor - 20.0 SEER2

Model: F4H45W07070924 Item Number: 85267
Fujitsu F4H45W07070924
PREVIOUS
NEXT
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Enlarge Image
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
Fujitsu F4H45W07070924
View All
Originally $6,498.00, you save 5%
Our Price: $6,173.10
synchrony card icon
$78 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Wednesday, December 4th
Shipping to60601
Fujitsu Wall Mount 4-Zone System - 45,000 BTU Outdoor - 7k + 7k + 9k + 24k Indoor - 20.0 SEER2
Fujitsu Wall Mount 4-Zone System - 45,000 BTU Outdoor - 7k + 7k + 9k + 24k Indoor - 20.0 SEER2 Model: F4H45W07070924 Item Number: 85267
$6,173.10
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    293 Pounds Learn More
    293 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 5 items
  • product image

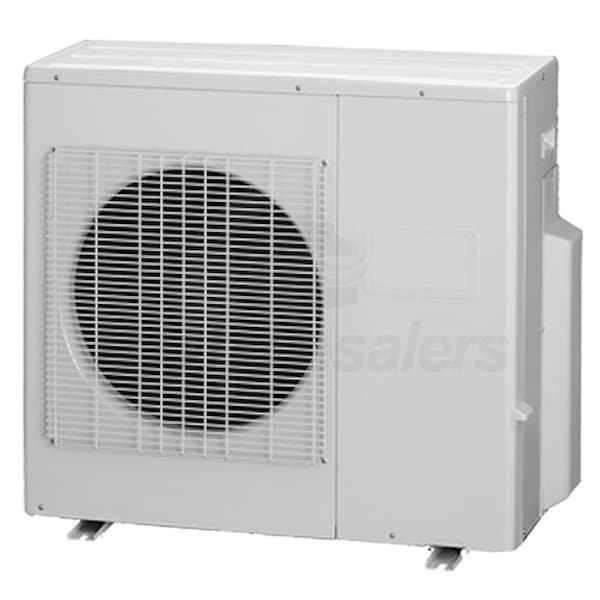

    (1) Fujitsu - 45k BTU - RLXFZ Outdoor Condenser - For 2-5 Zones (AOU45RLXFZ)
  • product image

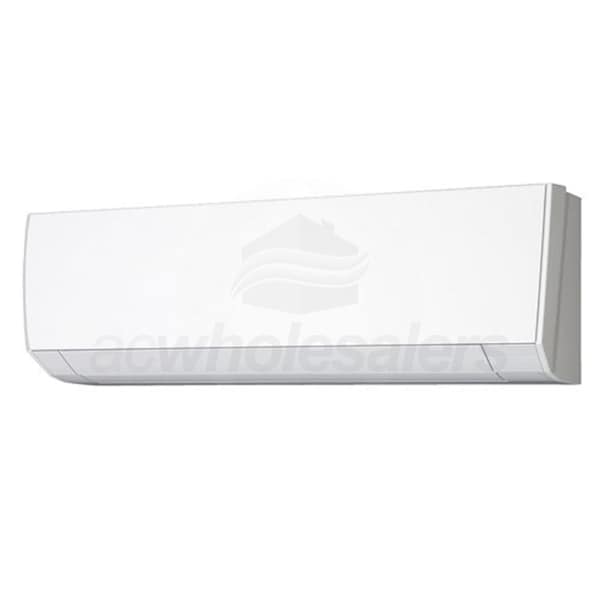

    (1) Fujitsu - 24k BTU - Wall Mounted Unit - For Multi or Single-Zone (ASUH24LPAS)
  • product image

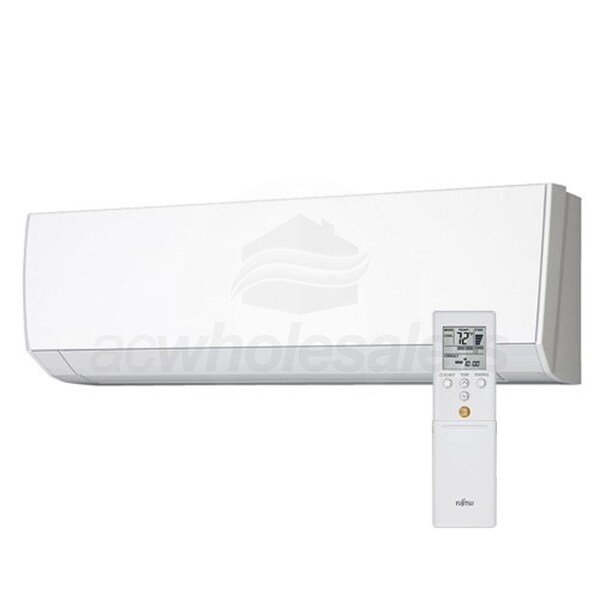

    (1) Fujitsu - 9k BTU - Wall Mounted Unit - For Multi or Single-Zone (ASUH09LPAS)
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Enhanced Heating Capacity
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F4H45W07070924

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F4H45W07070924 wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipement, the Halcyon HFI mini split system is a reliable and efficient choice. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
  • Inverter Technology
  • Inverter technology drives the compressor, allowing it to match output to demand. The result: a more stable and comfortable temperature within the space. This type of operation removes more moisture, reduces short-cycling, and improves efficiency.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a blue fin coating to the heat exchanger of their outdoor condensers. This improves their resistance to many common sources of corrosion and extends their longevity.
  • Advanced Filtration
  • A washable ion deodorizing filter uses fine ceramic particles to capture and remove odors. An apple catechin filter isolates and deactivates mold, bacteria, and dust. This combination creates a clean and healthy air flow from your indoor unit.
  • Timer Function
  • You can set a sleep timer to gradually decrease the output after you have gone to bed. It also supports a 24-hour timer, allowing you to set on and off time once per day. These timers allow you to curtail energy use without sacrificing comfort.
  • Dehumidify and Cool
  • Dry Mode demonstrates the Halcyon HFI's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Airflow Control
  • Swing mode disperses conditioned air evenly across your zone, resulting in consistent and thorough heating and cooling. Swing mode can be used with this unit's auto fan mode and auto changeover for automated comfort in rooms of all shapes and sizes.
  • Power Diffuser
  • This unit includes an airflow louver known as a power diffuser that directs heated air to the floor of the room and cold air outwards to blanket the room. This diffuser uses temperature sensors to ensure that your airflow is ideal in any application.
  • Recommended line set sizes for indoor unit connectivity:
  • ASUH07LPAS: 1/4" x 3/8" Line Set (Qty 2)
  • ASUH09LPAS: 1/4" x 3/8" Line Set
  • ASUH24LPAS: 1/4" x 1/2" Line Set
  • Product Note
    This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. Important Warranty Information: Fujitsu General does not extend its manufacturers warranty to products purchased over the Internet. Any replacement parts that would normally be covered under the manufacturers warranty will be provided by eComfort.com, but only when equipment has been installed by a qualified professional HVAC contractor. Installation by others voids all warranties. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 5 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Wall Mounted
    Product Line
    Airstage HFI
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    4
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    7 + 7 + 9 + 24
    Outdoor Unit Size
    45000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling Capacity
    45000 BTU
    Heating Capacity
    48000 BTU
    Cooling Power Input
    4370 Watts
    Heating Power Input
    3960 Watts
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    20.0
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    10.5
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.2
    Dimensions
    Product Weight
    293 Pounds
    Shipping Weight
    293 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8908617
    General Information
    Type
    Outdoor Condenser
    Product Line
    Airstage RLXFZ
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    5
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    45000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    264 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Line Set E Liquid Connection
    1/4 Inch
    Line Set E Gas Connection
    1/2 Inch
    Product Height
    39 5/16 Inches
    Product Width
    38 3/16 Inches
    Product Depth
    14 9/16 Inches
    Product Weight
    205 Pounds
    Shipping Height
    45 3/4 Inches
    Shipping Width
    45 1/4 Inches
    Shipping Depth
    18 13/16 Inches
    Shipping Weight
    215 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Wall Mounted
    Product Line
    Airstage LPAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A

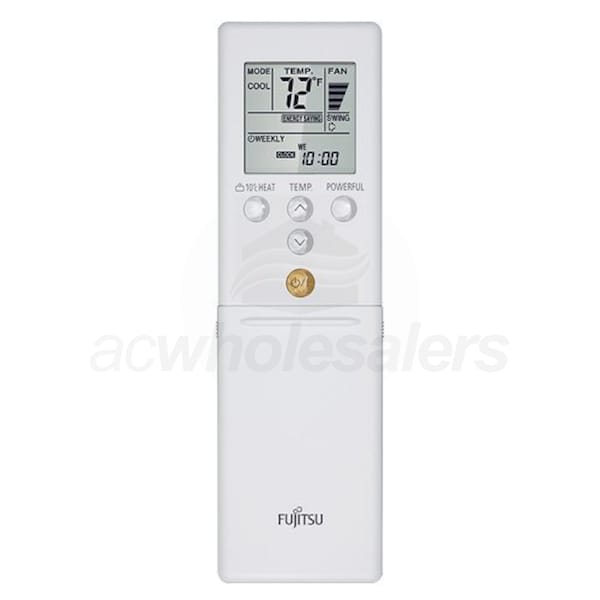

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Maximum Air Flow
    642 CFM
    Minimum Air Flow
    306 CFM
    Minimum Sound Level
    31 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Electrical Data
    Voltage
    208/227 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    11 Inches
    Product Width
    38 9/16 Inches
    Product Depth
    9 7/16 Inches
    Product Weight
    37 Pounds
    Shipping Height
    27 1/4 Inches
    Shipping Width
    37 Inches
    Shipping Depth
    14 3/4 Inches
    Shipping Weight
    46 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    Airstage LPAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    412 CFM
    Minimum Air Flow
    159 CFM
    Minimum Sound Level
    19 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    40 dB
    Electrical Data
    Voltage
    208/224 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 5/8 Inches
    Product Width
    32 13/16 Inches
    Product Depth
    8 3/4 Inches
    Product Weight
    26 Pounds
    Shipping Height
    10 7/8 Inches
    Shipping Width
    36 Inches
    Shipping Depth
    13 1/16 Inches
    Shipping Weight
    35 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    Airstage LPAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    7
    Installation Location
    Indoor
    Performance
    Cooling BTU
    7000
    Cooling Capacity
    7000 BTU
    Maximum Air Flow
    424 CFM
    Minimum Air Flow
    188 CFM
    Minimum Sound Level
    21 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    41 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 5/8 Inches
    Product Width
    32 13/16 Inches
    Product Depth
    8 3/4 Inches
    Product Weight
    21 Pounds
    Shipping Width
    10 7/8 Inches
    Shipping Height
    36 Inches
    Shipping Depth
    13 1/16 Inches
    Shipping Weight
    26 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More

    Share
    ×
    Fujitsu Wall Mount 4-Zone System - 45,000 BTU Outdoor - 7k + 7k + 9k + 24k Indoor - 20.0 SEER2
    Fujitsu F4H45W07070924
    Loading
    Fujitsu F4H45W07070924
    Fujitsu F4H45W07070924
    Fujitsu F4H45W07070924
    Fujitsu F4H45W07070924
    Fujitsu F4H45W07070924
    Fujitsu F4H45W07070924
    Fujitsu F4H45W07070924
    Fujitsu F4H45W07070924
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
