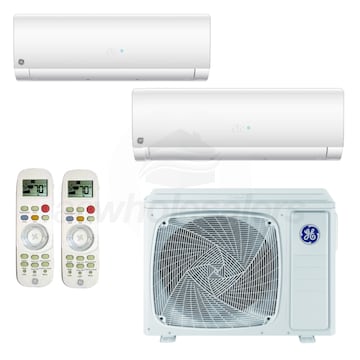

GE Wall Mounted 2-Zone System - 18,000 BTU Outdoor - 7k + 12k Indoor - 20.0 SEER
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
157.4 Pounds 157.4 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Type
Wall Mounted
Product Line
MultiLink Series
View More
Bundle Includes 3 items
(1) GE - 18k BTU - MultiLink Series Outdoor Condenser - For 2 Zone (ASH218JCDDA)
(1) GE - 7k BTU - MultiLink Series Wall Mounted Unit - For Multi-Zone (ASYW07CRDDA)
(1) GE - 12k BTU - MultiLink Series Wall Mounted Unit - For Multi-Zone (ASYW12CRDDA)
View Full Bundle
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features & Bundle Details
Features & Bundle Details
Overview for GE Mini Splits GE2L18MW07120000
Providing flexible comfort throughout your home, the GE MultiLink series delivers multi-zone options that fit your needs. Capable of producing heat down to an impressive -4°F, the MultiLink condenser will keep you comfortable in the coldest winters and hottest summers. The GE MultiLink wall mount units feature built-in Wi-Fi as well as GE SmartHQ™, providing smart convenience. The quiet indoor unit offers several airflow modes to fit the needs of your home.
Inverter Technology
The MultiLink Series features leading A-PAM DC Inverter Technology to provide efficient and quiet operation. The inverter is used to continuously regulate refrigerant flow and ensure there's no wasted energy.
Low Ambient Heating
With the ability to provide heat at ambient temperatures reaching -15° F, the MultiLink Series won't leave you hanging when it gets cold outside.
Quiet Operation
The MultiLink Series wall mount units feature a quiet mode that operates at a sound level down to 21 dB.
Blue Fin Coating
The MultiLink Series outdoor unit features a special coating to whisk away condensate water, preventing rust and extending its lifespan.
Warm Start
GE's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
Recommended line set sizes for indoor unit connectivity:
ASYW07CRDDA: 1/4" x 3/8" Line Set
ASYW12CRDDA: 1/4" x 3/8" Line Set
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation.This product requires the following accessories for installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
GE products include a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://www.geappliances.com/ductless/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 3 items
GE - 18k BTU - MultiLink Series Outdoor Condenser - For 2 Zone
Model: ASH218JCDDA
Item Number: 125279
Quantity: 1
GE - 7k BTU - MultiLink Series Wall Mounted Unit - For Multi-Zone
Model: ASYW07CRDDA
Item Number: 125282
Quantity: 1
GE - 12k BTU - MultiLink Series Wall Mounted Unit - For Multi-Zone
Model: ASYW12CRDDA
Item Number: 125284
Quantity: 1
Specifications
Specifications
Included In This Bundle
Bundle Overview
Bundle Overview
ASH218JCDDA Specifications
ASYW07CRDDA Specifications
ASYW12CRDDA Specifications
General Information
Type
Wall Mounted
Product Line
MultiLink Series
Product Category
Mini Split Heat Pump System
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
2
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 12
Outdoor Unit Size
18000 BTU
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Subscription Eligible
No
Performance
Cooling Power Input
1440 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-4 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2 SEER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
21.0
EER2 EER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
12.7
HSPF2 HSPF2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
10.0
Dimensions
Product Weight
157.4 Pounds
Shipping Weight
172.4 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
207698997
General Information
Type
Outdoor Condenser
Product Line
MultiLink Series
Product Category
Mini Split Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
18000 BTU
Performance
Cooling BTU
18000
Cooling Power Input
1565 Watts
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
98 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
27 5/8 Inches
Product Width
35 Inches
Product Depth
13 1/2 Inches
Product Weight
115 Pounds
Shipping Weight
130 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Product Line
MultiLink and Endure Series
Product Category
Mini Split Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
7000
Heating Capacity
8000 BTU
Maximum Air Flow
400 CFM
Minimum Air Flow
187 CFM
Minimum Sound Level
26 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
42 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 Inches
Product Width
33 3/4 Inches
Product Depth
7 3/4 Inches
Product Weight
21.2 Pounds
Shipping Weight
26.9 Pounds
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
Wall Mounted
Product Line
MultiLink and Endure Series
Product Category
Mini Split Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Heating Capacity
13000 BTU
Maximum Air Flow
426 CFM
Minimum Air Flow
200 CFM
Minimum Sound Level
26 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
42 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 Inches
Product Width
33 3/4 Inches
Product Depth
7 3/4 Inches
Product Weight
21.2 Pounds
Shipping Weight
26.9 Pounds
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
