Generac Guardian® 14kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi

Model: 7224 Item Number: 111025
Generac Guardian 7224
PREVIOUS
NEXT
Generac Guardian 7224
Generac Guardian 7224
Generac Guardian 7224
Generac Guardian 7224
Generac Guardian 7224
Generac Guardian 7224
Enlarge Image
Generac Guardian 7224
Generac Guardian 7224
Generac Guardian 7224
Generac Guardian 7224
Generac Guardian 7224
Generac Guardian 7224
View All
Originally $4,777.00
Add to Cart for Lower Price
synchrony card icon
$108 / Month
With our 18 months 0.00% APR*
18 fixed monthly payments required.
Factory-Direct
Ships in 2-5 Business Days
Generac Guardian® 14kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi
Generac Guardian® 14kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi Model: 7224 Item Number: 111025
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator - Standby
Size
Select Attribute
Auto Transfer Switch
Select Attribute
Kit
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Generac Guardian 7224

*Please Note - Some product images display optional fascia base trim kit*
  • 14k Guardian® Air-Cooled Standby Generator System
  • Protects your home and family during a power outage
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • 5-Year Limited Warranty
  • Plus 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • 100-Amp Automatic Transfer Switch w/ Integrated Load Center
  • NEMA 3R Outdoor Aluminum enclosure
  • Great when main breaker panel is located outdoors
  • 16-Circuit Essential Circuit Load Center
  • For large main service & only partial generator backup
  • Allows you to backup 120V & 240V circuits
  • Compatible w/ 1" standard, tandem, GFCI & AFCI breakers

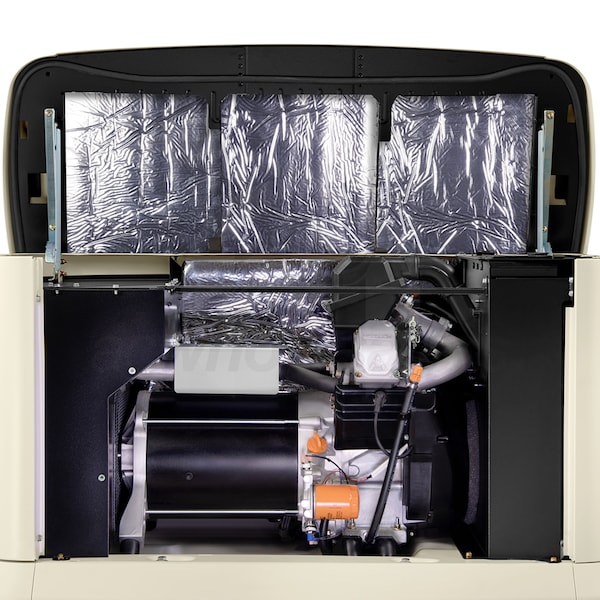

  • NEW Generac G-Force 800 Series Engine
  • Hydraulic lifters for improved performance & less maintenance
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • TRUE POWER™ Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser helps prevent oil seal drying and damage
  • QUIET-TEST™ Self-Test Mode
  • Runs at a lower RPM for a five or twelve minute test
  • Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
  • Corrosion resistant design for all weather conditions
  • Installation Flexibility*
  • Can be installed within 18" of a building
  • *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Also Includes
  • Smart battery charger & 14" Flexible fuel line connector
  • Please Note - Battery Not Included (Sold Separately)
  • Automatic Transfer Switch Model # RXG16EZA3
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator - Standby
    Overview
    Product Category
    Generator - Standby
    Weight
    385 Pounds
    CARB Compliant
    Yes
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Commercial Warranty
    5 Years
    Product Style
    Standby Generator
    Product Length
    48 Inches
    Product Width
    25.1 Inches
    Product Height
    29 Inches
    UPC
    696471082555
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    14000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    14000 Watts
    LP Power Capacity
    14000 Watts
    NG Fuel Consumption @ 50% Load
    195 ft³/hr
    NG Fuel Consumption @ 100% Load
    256 ft³/hr
    LP Fuel Consumption @ 50% Load
    1.81 gallons/hr
    LP Fuel Consumption @ 100% Load
    3.07 gallons/hr
    Rated Amps
    58.3 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55-65
    Transfer Switch
    Automatic (Included)
    Transfer Switch Amperage
    100-Amps
    Max Circuits
    16
    Battery
    Not Included
    Enclosure
    Aluminum
    Circuit Breaker Size
    60 Amps
    A/C Ton Rating
    3-Tons
    Mounting Pad
    Composite (Included)
    Transfer Switch Style
    Standard Installation
    ATS Load Prioritizing
    Not Compatible
    ATS Load Shedding
    Not Compatible
    ATS Poles
    2 Poles
    ATS Service Disconnect
    No
    Cooling System
    Air Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Wi-Fi Remote Monitoring
    Yes
    Engine
    Engine Brand
    Generac OHVI
    Starting System
    12v Auto Start
    CC
    816 CC
    Consumer Engine Warranty
    5 Years
    Commercial Engine Warranty
    5 Years
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
