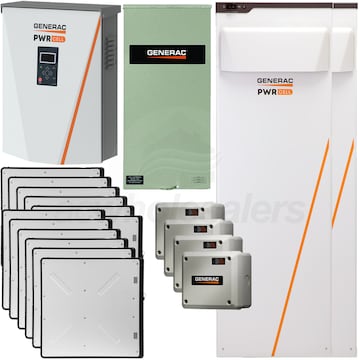

Generac PWRcell™ 36kWh Deluxe Managed Whole Home Package - 7.6kW (120/240V Single-Phase) Inverter, (2) Outdoor Cabinet w/ (12) 3.0 kWH Batteries + 200A SE

Model: PWRCELL-DLX-MWH-KIT Item Number: 113451
Generac PWRcell PWRCELL-DLX-MWH-KIT
PREVIOUS
NEXT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Enlarge Image
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
Generac PWRcell PWRCELL-DLX-MWH-KIT
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator - Solar
Bundle Includes 20 items
  • product image
    (1) Generac PWRcell™ 7.6kW (120/240V Single-Phase) Inverter w/ 300A CTs (APKE00014)
  • product image
    (2) Generac PWRcell™ Outdoor Rated (3R) Battery Cabinet (APKE00028)
  • product image
    (12) Generac PWRcell™ 3.0kWh DCB Battery Module (BJ-DCB05ZKBG)
Available Kits
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Generac PWRcell PWRCELL-DLX-MWH-KIT

PWRcell's revolutionary technology captures and stores electricity - either from solar panels, or the electrical grid. It allows you to use stored energy during peak demand times when electricity costs are high, which ultimately helps reduce your electric bill and save some money. In the case of a power outage, PWRcell is ready to supply backup power to your home.
  • Generac PWRcell™ 36kWh Deluxe Managed Whole House Inverter Package
  • Provides the max amount of energy storage for a single-inverter setup
  • Bi-Directional, Rebus™ Powered Design
  • A simple, efficient design for integrating smart batteries with solar
  • 7,600-Watt (Grid-Tie) & 8,000-Watt (Backup) Rated Watts (120/240V Single-Phase)
  • Provides up to 10,000 starting watts during backup operation
  • Plenty of power to start larger items around the house
  • User-Selectable Modes
  • For backup power, self-supply, time-of-use and zero-export
  • Grid Sell & Prioritized Charging From Renewables
  • Provides more flexibility to the homeowner
  • (2) PWRcell™ Outdoor Battery Cabinet
  • Provides 36 kWh of power
  • (12) Generac PWRcell™ 3 kWh DCB Battery Module (Included)
  • A powerful battery in a compact footprint
  • Free System Monitoring w/ PWRview&trade Web Portal & Mobile App
  • Provides real-time energy usage
  • Dashboards for solar & battery usage
  • Generac 200-Amp Service Entrance Rated Automatic Smart Transfer Switch
  • Installs between main meter & service panel
  • (4) Generac 50-Amp Smart Management Module (SMM)
  • Provides the flexibility to control of what circuits matter most
  • Includes (2) 300-Amp Universal Current Transformers (CTS)
  • For main service panels up to 300-Amps
  • 10-Year Limited Warranty On Inverter, Cabinets & Batteries
  • ***Please Note - Requires Solar Panels (Not Included)
  • Bundle Includes 20 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Product Category
    Generator - Solar
    Overview
    Product Category
    Generator - Solar
    Product Specs
    Battery Storage (Wh)
    36
    Battery Type
    DC-Coupled
    General Information
    Product Category
    Generator - Solar
    Overview
    Product Category
    Generator - Solar
    Weight
    62.7 Pounds
    Consumer Warranty
    10 Years
    Product Length
    24.5 Inches
    Product Width
    19.25 Inches
    Product Height
    8 Inches
    Product Specs
    Enclosure
    NEMA 3R
    AC Output / Grid-Tie
    Rated AC Power Output
    7600 Watts
    AC Output Voltage
    120/240V Single-Phase
    AC Frequency
    60 Hz
    Max Continuous Output Current
    32 A, RMS
    Ground-Fault Isolation Detection
    Included
    Charge Battery From AC
    Yes
    THD (Current)
    <2%
    Typical Nighttime Power Consumption
    <7 Watts
    AC Output / Backup
    Rated AC Backup Power Output (Islanded)
    8000 Watts
    Max AC Backup Power Output
    10000 Watts
    AC Backup Output Voltage
    120/240V Single-Phase
    AC Frequency
    60 Hz
    AC Circuit Breaker
    50 Amps
    THD Voltage
    <2%
    Automatic Switchover Time
    <1 Seconds
    Typical Nighttime Power Consumption
    30 Watts
    DC Input
    DC Imput Voltage
    360-420 VDC
    Nominal DC Bus Voltage
    380 VDC
    Max Import Current
    20
    Max Inmput Current
    30
    Reverse Polarity Protection
    Yes
    Ground-Fault Isolation Detection
    Yes
    Transformerless, Ungrounded
    Yes
    Typical Nighttime Power Consumption
    7 Watts
    DC Input / Battery
    Max Continuous Power
    8000 Watts
    Internal DC Distribution Breakers
    4 x 2-Pole 30 Amp
    DC Fuses on Plus & Minus
    40 Amp
    2-Pole Disconnection
    Yes
    Efficiency
    Peak Efficiency
    97%
    CEC Weighted Efficiency
    96.5%
    General Information
    Product Category
    Generator - Solar
    Overview
    Product Category
    Generator - Solar
    General Information
    Product Category
    Generator - Solar
    Overview
    Product Category
    Generator - Solar
    Weight
    55 Pounds
    Consumer Warranty
    10 Years
    Commercial Warranty
    10 Years
    Product Length
    17.5 Inches
    Product Width
    18 Inches
    Product Diameter
    3.5 Inches
    General Information
    Product Category
    Generator Transfer Switches
    Overview
    Product Category
    Generator Transfer Switches
    Weight
    39 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Product Length
    6.3 Inches
    Product Width
    13.5 Inches
    Product Height
    30 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    48000 Watts
    Rated Amps
    200 Amps
    Transfer Switch Amperage
    200-Amps
    Enclosure
    NEMA 3R
    Transfer Switch Style
    Service Disconnect
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Poles
    2 Poles
    ATS Service Disconnect
    Yes
    Max Utility Input
    200 Amps
    Max Generator Input
    200 Amps
    Maximum Wattage
    48000 Watts
    UL Listed
    Yes
    General Information
    Product Category
    Generator Accessories
    Overview
    Product Category
    Generator Accessories
    Weight
    2 Pounds
    Consumer Warranty
    3 Years
    Product Length
    6.17 Inches
    Product Width
    7.06 Inches
    Product Height
    3.7 Inches
    Product Specs
    Voltage
    240 Single-Phase
    Rated Amps
    50 Amps
    Enclosure
    NEMA 3R
