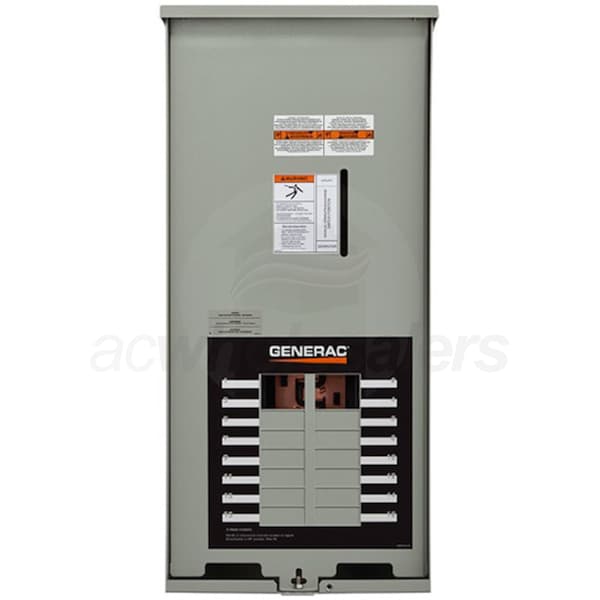

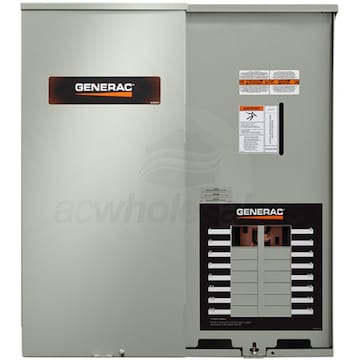

Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center

Model: RXG16EZA3 Item Number: 77439
Generac RXG16EZA3
PREVIOUS
NEXT
Generac RXG16EZA3
Generac RXG16EZA3
Generac RXG16EZA3
Enlarge Image
Generac RXG16EZA3
Generac RXG16EZA3
Generac RXG16EZA3
View All
Our Price: $629.00
synchrony card icon
$105 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 12-16 Weeks
Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center Model: RXG16EZA3 Item Number: 77439
$629.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator Transfer Switches
Recommended Accessories
View More
Installation Accessories
Generac Mobile Link™ Cellular 4G LTE Remote Monitoring System
Model: 7169
Qty
$327.99
Ships in 8-12 Weeks
Add To Cart
Features
View More

Features

Overview for Generac RXG16EZA3

  • Generac 100-Amp Outdoor AutomaticTransfer Switch
  • Designed to operate with Generac air-cooled generators (7-16kW Only)
  • 16-Circuit Integrated Load Center For Essential Circuit Backup
  • For large main service & only partial generator backup
  • Also when main electrical breaker panel is located outdoors
  • 16-Circuit Breaker Panel (Breakers Not Included)
  • Use with Siemens, Eaton, or Square D 1-Inch breakers
  • Expandable to 24-Circuits
  • Bottom (4) breaker spaces will accommodate tandem breakers
  • UL/CUL Listed
  • Suitable for use in optional standby systems (NEC702)
  • Aluminum NEMA 3R Indoor/Outdoor Enclosure
  • Electrostatically applied & baked powder paint to resist corrosion
  • Heavy Duty Generac Contactor - Rated @ 250 VAC - 1P
  • UL recognized device, designed for years of service
  • *Note - Generator controller handles all timing, sensing & exercise
  • Tech Spec: Only For Use w/ Generac Air-Cooled Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 10,000 Amps --- Lug Range: 1/0 - #14
  • 5-Year Limited Warranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator Transfer Switches
    Overview
    Product Category
    Generator Transfer Switches
    Weight
    39 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Product Length
    30.1 Inches
    Product Width
    13.5 Inches
    Product Height
    6.91 Inches
    UPC
    696471069907
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    16000 Watts
    Rated Amps
    100 Amps
    Enclosure
    NEMA 3R
    Number of Circuit Breakers
    16
    Transfer Switch Style
    Standard Installation
    ATS Load Prioritizing
    Not Compatible
    ATS Load Shedding
    Not Compatible
    ATS Poles
    2 Poles
    ATS Service Disconnect
    No
    Max Utility Input
    100 Amps
    Max Generator Input
    100 Amps
    Maximum Wattage
    16000 Watts
    UL Listed
    Yes
