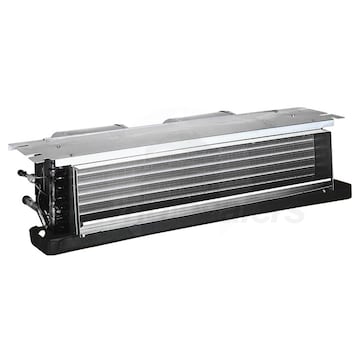

Goodman ACSF - 1.5 Ton - Air Handler - Ceiling-Mount - 208-230/1/60 - ECM Motor - 5 kW

Model: ACSF18MN1605 Item Number: 139917
Goodman ACSF18MN1605
PREVIOUS
NEXT
Goodman ACSF18MN1605
Enlarge Image
Originally $656.00
Add to Cart for Lower Price
synchrony card icon
$104 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Friday, November 22nd
Shipping to60601
Goodman ACSF - 1.5 Ton - Air Handler - Ceiling-Mount - 208-230/1/60 - ECM Motor - 5 kW
Goodman ACSF - 1.5 Ton - Air Handler - Ceiling-Mount - 208-230/1/60 - ECM Motor - 5 kW Model: ACSF18MN1605 Item Number: 139917
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Air Handler
    Product Line
    ACSF
    Product Category
    Air Handler
Size (Tons)
Learn More
Size (Tons)
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Select Attribute
Electric Heat Capacity (kW)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman ACSF18MN1605

Goodman air handlers are an integral part of finishing a total home environment control system. The ACSF plays a key role in reducing indoor humidity, creating a much more comfortable environment. It also includes an all-aluminum evaporator coil and internal thermal expansion valve. The ACSF works with the multi-speed ECM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
  • Galvanized-Steel Construction
  • Galvanized-Steel is corrosion resistant, requiring less maintenance to remain at peak efficiency.
  • All-Aluminum Coil
  • Goodman's ACSF coils use a reliable all-aluminum fins and tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Internal Thermostatic Expansion Valve
  • The ACSF has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Blower Motor
  • ACSF air handlers use direct-drive, multi-speed ECM motors allows air volume variation for heating and cooling.
  • Electric Heat
  • The ACSF air handlers come with a rust-resistant nickel chromium heating element that are sequence-controlled.
  • Condensate Management
  • The ACSF includes a high-temperature plastic drain pan with primary and secondary drain connections that are suitable for free-return installation. These elements help prevent the formation of condensation and keep your system running smoothly.
  • Easy Installation
  • The ACSF air handlers are ceiling mounted and have a 21" depth for easy attic access, making installation a breeze.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Air Handler
    Product Line
    ACSF
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    ECM
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Ceiling Mounted
    Installation Location
    Indoor
    Electric Heat
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Cooling BTU
    18000
    Electric Heat Capacity
    5.0 kW
    Maximum Air Flow
    842 CFM
    Minimum Air Flow
    698 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    28.5 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Drain Outlet Diameter
    3/4 Inch
    Product Height
    10 Inches
    Product Width
    43 1/4 Inches
    Product Depth
    11 1/4 Inches
    Shipping Weight
    69 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
