Goodman ARUF - 3 Ton - Air Handler - Multi-Position - PSC Motor (Scratch & Dent)

Model: ARUF37D14-SD Item Number: 76651
Goodman ARUF37D14-SD
PREVIOUS
NEXT

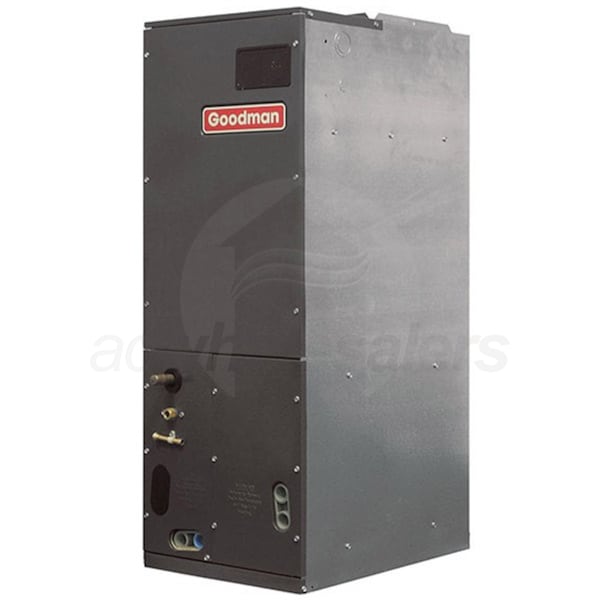

Goodman ARUF37D14-SD
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Air Handler
    Product Line
    ARUF
    Product Category
    Air Handler
Features
View More

Features

Overview for Goodman ARUF37D14-SD

***Scratch & Dent*** Dents on the wrapper. Dented Bottom Corner Scratches and Scuffs. The best air conditioner or heat pump in the world is all for naught if your home lacks proper airflow. That's where the Goodman ARUF air handler comes in. The ARUF is all about effective air distribution. It includes an all-aluminum evaporator coil, multi-speed fan motor, and flowrator. These components ensure that your home stays comfortable and your central system runs efficiently. The ARUF37D14 was designed and built with an emphasis on keeping the installation process short and the equipment's lifespan long to maximize the value for homeowners. If airflow issues are holding your central system back, invest in an ARUF air handler from Goodman.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Dehumidification
  • Goodman's air handlers make it easy to stay cool. The ARUF37D14 is designed to remove moisture from the air, letting you feel cool at higher temperatures.
  • SmartFrame™
  • The ARUF features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Secure Cabinet
  • This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
  • Condensate Management
  • The ARUF's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Air Handler
    Product Line
    ARUF
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    PSC
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    TXV Installed
    No
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Nominal Cooling Capacity
    36000 BTU
    Maximum Air Flow
    1680 CFM
    Minimum Air Flow
    1070 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    4 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    24 1/2 Inches
    Product Height
    53 7/16 Inches
    Product Width
    24 1/2 Inches
    Product Depth
    21 Inches
    Shipping Weight
    140 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
