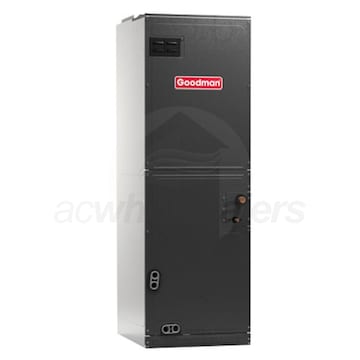

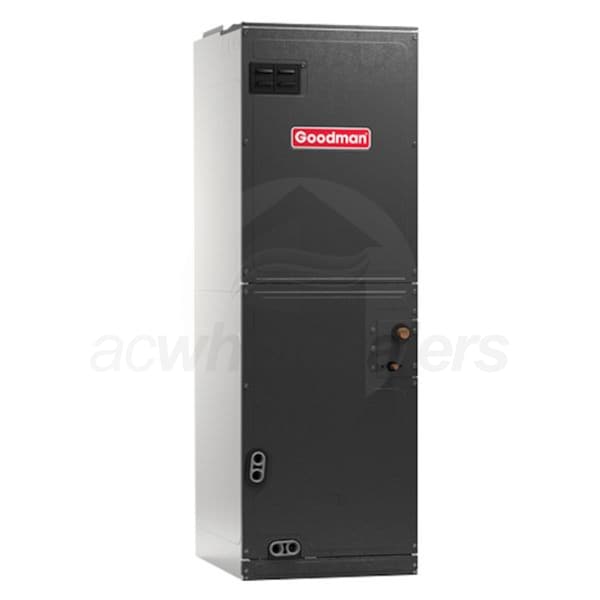

Goodman 2.5 Ton Air Conditioner Air Handler with Smart Frame Cabinet

Model: ASPT35B14 Item Number: 92869
Goodman ASPT35B14
PREVIOUS
NEXT
Goodman ASPT35B14
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    105 Pounds Learn More
    105 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
    UPC
    ASPT35B14
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman ASPT35B14

Overview for Goodman ASPT35B14 Air Conditioner Air Handler with Smart Frame Cabinet The Goodman brand of heating and cooling systems are manufactured to provide comfortable, affordable and energy efficient indoor solutions using the latest technology. But the company ultimately cohere to some original values, too. That’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.
  •
  • Direct drive, multi-speed ECM blower motor
  • All-aluminum evaporator coil
  • Coil mounting track for quick repositioning
  • Optimized for use with R-410A refrigerant
  • Rigid SmartFrame™ cabinet
  • Horizontal or vertical configuration capabilities
  • 21 inch depth for easier attic access
  • Internal Thermostatic Expansion Valve
  • The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    UPC
    ASPT35B14
    General Information
    Type
    Air Handler
    Product Line
    ASPT
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    EEM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 Tons
    Nominal Cooling Capacity
    28000 BTU
    Maximum Air Flow
    1310 CFM
    Minimum Air Flow
    875 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    45 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    105 Pounds
    Shipping Weight
    129 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
