Goodman 2.5 to 3 Ton Air Conditioner Evaporator Uncased Coil

Model: CAUF3137B6 Item Number: 26626
Goodman CAUF3137B6
PREVIOUS
NEXT
Goodman CAUF3137B6
Goodman CAUF3137B6
Enlarge Image
Goodman CAUF3137B6
Goodman CAUF3137B6
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
View Goodman CAUF - 3 Ton - Upflow/Downflow A Coil - Uncased
Model:
CAUFA3626B6
$734.00
Product Discontinued
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    53 Pounds Learn More
    53 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Evaporator Coil
    Product Line
    CAUF
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman CAUF3137B6

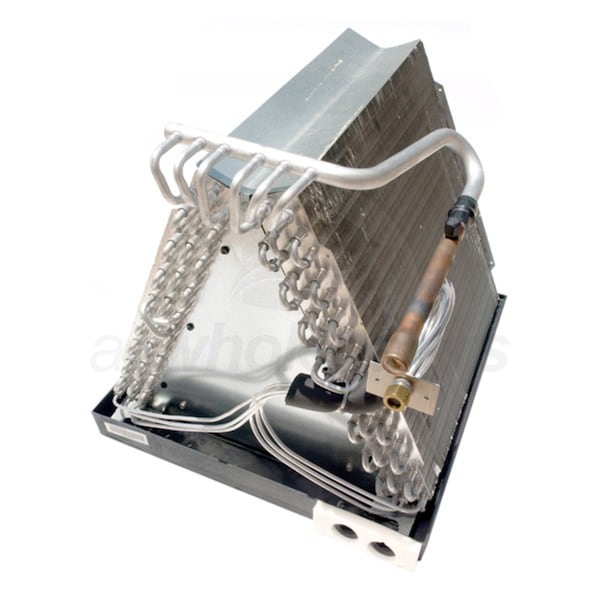

The all-aluminum evaporator coil is constructed from aluminum tubing, fins and panels giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. If you re looking for an evaporator coil that offers enhanced durability, coupled with enhanced performance (as tested in Goodman brand labs), this is the product for you.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Condensate Management
  • A rust-resistant thermoplastic drain pan provides a safe, effective way to trap the condensate that forms on the CAUF evaporator coil.
  • Multi-Refrigerant Compatibility
  • R-22 refrigerant is no longer in production, but many older systems still use it. The CAUF is compatible with both R-22 and its replacement, R-410A. This makes it the perfect fit for any homeowner.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Evaporator Coil
    Product Line
    CAUF
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Uncased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    TXV Installed
    No
    UPC
    663051505612
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 - 3.5 Tons
    Cooling BTU
    36000
    Nominal Minimum Cooling Capacity
    30000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    27 Inches
    Product Width
    16 1/2 Inches
    Product Depth
    20 1/8 Inches
    Product Weight
    53 Pounds
    Shipping Weight
    63 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
