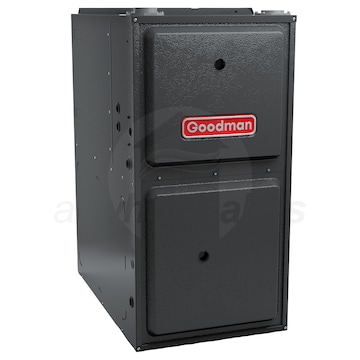

Goodman GM9C96 - 100k BTU - Gas Furnace - 96% AFUE

Model: GM9C961005CN Item Number: 117617
Goodman GM9C961005CN
PREVIOUS
NEXT
Goodman GM9C961005CN
Goodman GM9C961005CN
Enlarge Image
Goodman GM9C961005CN
Goodman GM9C961005CN
View All
Originally $2,137.00
Add to Cart for Lower Price
synchrony card icon
$339 / Month
Suggested monthly payments with 6 month financing.
Factory items ship direct from the manufacturer
Shipping times vary
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Goodman GM9C96 - 100k BTU - Gas Furnace - 96% AFUE
Goodman GM9C96 - 100k BTU - Gas Furnace - 96% AFUE Model: GM9C961005CN Item Number: 117617
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    140 Pounds Learn More
    140 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace
    UPC
    663051627291
Orientation
Learn More
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Select Attribute
Max. Airflow (CFM)
Select Attribute
Cabinet Width (Inches)
Select Attribute
British Thermal Unit (BTU)
Select Attribute
Heating (BTU)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman GM9C961005CN

Goodman GM9C96 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. It features Goodman's superior heat exchanger design for the primary heat exchanger and an additional secondary heat exchanger to ensure that your energy dollars aren't being vented out of your home. This combination results in a furnace that converts 96% of the energy used directly into heat for your home, Goodman's highest mark for a two-stage furnace. Instead of a standard multi-speed blower motor, the GM9C96 utilizes a 9-Speed ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GM9C96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GM9C96.
  • Advanced Heat Exchanger Design
  • The GM9C96 furnace employs a reliable aluminized-steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • Secondary Heat Exchanger
  • This furnace produces addition heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
  • Quiet Comfort
  • The blower, motor, and gas valve of the GM9C96 were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.
  • Venting Options
  • The GM9C96 offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.
  • Secure Cabinet
  • All GM9C96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.
  • Easy Integration
  • The GM9C96 makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.
  • Extended Warranty
  • Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Furnace
    UPC
    663051627291
    General Information
    Type
    Gas Furnace
    Product Line
    GM9C96
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Multi-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    R-32 Compliant
    No
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    Heating BTU
    100000
    High Fire Input
    100000 BTU
    High Fire Output
    96000 BTU
    Low Fire Input
    70000 BTU
    Low Fire Output
    67200 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    13.3 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    21 Inches
    Product Height
    34 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    140 Pounds
    Shipping Weight
    140 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    207349263
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
