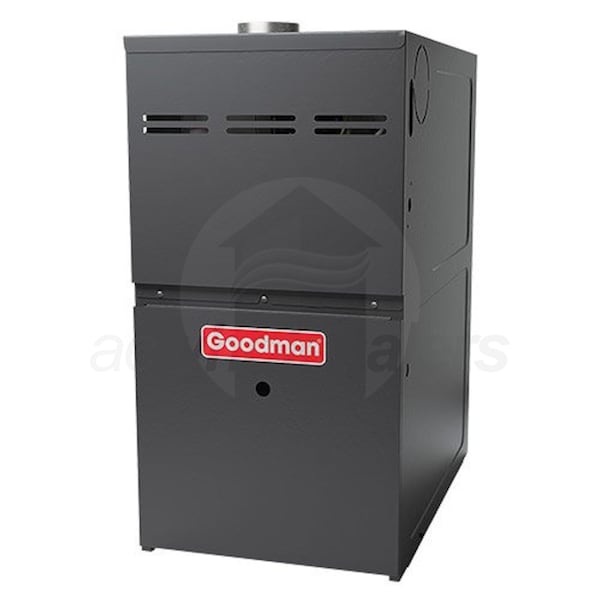

Goodman 80% AFUE 80,000 BTU 1 Stage Upflow Gas Furnace up to 4 Ton

Model: GMS80804BN Item Number: 26210
Goodman GMS80804BN
PREVIOUS
NEXT
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Enlarge Image
Goodman GMS80804BN
Goodman GMS80804BN
Watch Video
Goodman GMS80804BN
Watch Video
Goodman GMS80804BN
Watch Video
Goodman GMS80804BN
Watch Video
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
Goodman GMS80804BN
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
View Goodman GM9S80 - 80k BTU - Gas Furnace - 80% AFUE
Model:
GM9S800804BN
60 In-Stock
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    106 Pounds Learn More
    106 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Gas Furnace
    Product Line
    GMS8
Recommended Accessories
View More
Installation Accessories
Aprilaire Media Air Cleaner for Closet or Short Furnaces
Model: 2410
Qty
$163.00
In-Stock
Add To Cart
American Air Filter PerfectPleat HC M8 Filter MERV 8 16" x 25" x 1"
Model: 173-600-011
Learn More
Subscribe to Save
Increase filter quantity to receive better savings per filter.
Quality Learn More
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration.
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quality Learn More
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration.
Quantity
$6.99
In-Stock
Aprilaire Whole Home Electronic Air Cleaner
Model: 5000
Qty
$806.00
Only 4 In-Stock
Add To Cart
Diversitech Clearvue Condensate Pump 22' Lift w/ Tubing
Model: IQP-120T
Qty
$121.00
Ships in 2-5 Business Days
Add To Cart
Diversitech Clearvue Variable Speed Condensate Pump 22 Inch Lift 120V
Model: IQP-120
Qty
$96.00
In-Stock
Add To Cart
Diversitech Furnace Mounting Block - Qty 1
Model: FB-1
Qty
$6.00
In-Stock
Add To Cart
Goodman High Altitude Natural Gas Kit - 4,500 Ft. to 10,000 Ft.
Model: HANG20
Qty
$18.00
Ships in 2-5 Business Days
Add To Cart
Features
View More

Features

Overview for Goodman GMS80804BN

Overview for Goodman GMS80804BN
The Goodman brand GMS8/GDS8/GHS8 Multi-Speed Gas Furnace has an AFUE rating of 80%, which means that 80 cents of every $1.00 of heating energy expense warms your home. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
The Goodman GMS8 Single Stage, Multi-speed, Multi-position Series GMS80804BN Gas Furnace Heaters.
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.

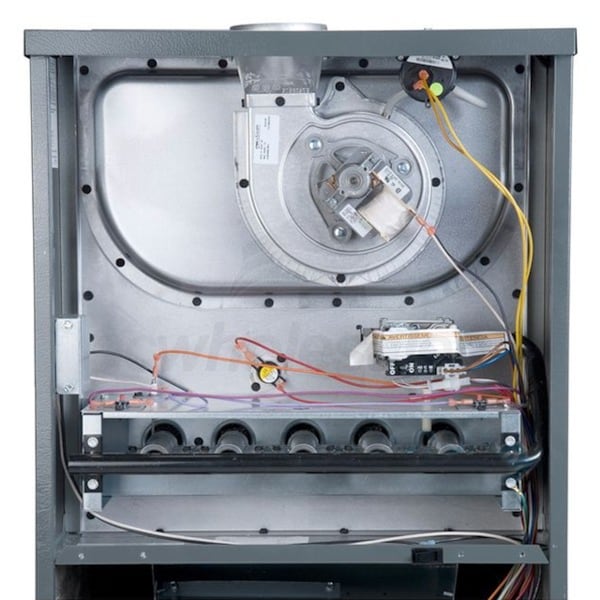

  • Advanced Heat Exchanger Design
  • The GMS8 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • Quiet Comfort
  • The blower, motor, and igniter of the GMS80804BN were selected for their incredibly low sound levels.
  • Secure Cabinet
  • All GMS8 furnaces are protected by a durable steel cabinet with a long-lasting powder paint finish. The heat exchanger section is lined with foil-insulation to prevent heat loss and the entire cabinet is rated for less than 2% air leakage.
  • Easy Integration

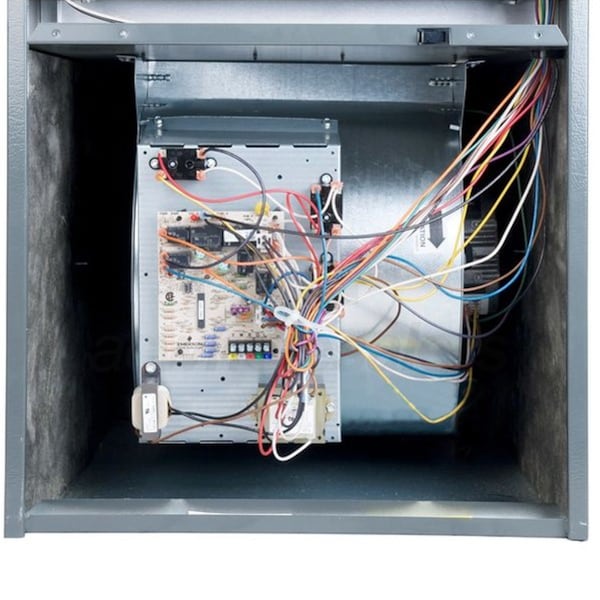

  • The GMS80804BN makes it simple to enhance your system with a humidifier; just wire it directly to the low-voltage terminal on the control board.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Gas Furnace
    Product Line
    GMS8
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    PSC Multi-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    UPC
    663051543782
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    64000 BTU
    Maximum Air Flow
    1600 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    No
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12.5 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    33 3/8 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    106 Pounds
    Shipping Weight
    106 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    5012601
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
