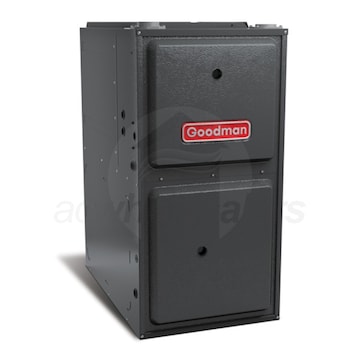

Goodman GMVC96 - 80k BTU - Two-Stage Gas Furnace - 96% AFUE

Model: GMVC960804CN Item Number: 26600
Goodman GMVC960804CN
PREVIOUS
NEXT
Goodman GMVC960804CN
Goodman GMVC960804CN
Enlarge Image
Goodman GMVC960804CN
Goodman GMVC960804CN
Watch Video
Goodman GMVC960804CN
Watch Video
Goodman GMVC960804CN
Watch Video
Goodman GMVC960804CN
Watch Video
Goodman GMVC960804CN
View All
Originally $2,567.00
Add to Cart for Lower Price
synchrony card icon
$407 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, April 14th
Shipping to43085
Goodman GMVC96 - 80k BTU - Two-Stage Gas Furnace - 96% AFUE
Goodman GMVC96 - 80k BTU - Two-Stage Gas Furnace - 96% AFUE Model: GMVC960804CN Item Number: 26600
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    141 Pounds Learn More
    141 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace
    UPC
    663051560987
Learn More
Gas Valve Stages
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Recommended Accessories
View More
Installation Accessories
DuraVent PolyPro - 3" Diameter - Elbow 90°
Model: 3PPS-E90C
Type
Pipe Diameter (Inches)
Qty
$19.04
Only 5 In-Stock
Add To Cart
DuraVent PolyPro - 2" Diameter - Wall Strap - Galvanized
Model: 2PPS-WSM
Type
Pipe Diameter (Inches)
Qty
$9.00
Ships in 3-4 Weeks
Add To Cart
Diversitech 3 Inch Horizontal or Vertical Concentric Vent
Model: CVENT-3
Application
Qty
$84.15
In-Stock
Add To Cart
American Air Filter PerfectPleat HC M8 Filter MERV 8 16" x 25" x 1"
Model: 173-600-011
Learn More
Subscribe to Save
Increase filter quantity to receive better savings per filter.
Quality Learn More
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration.
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quality Learn More
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration.
Quantity
$6.99
In-Stock
DuraVent PolyPro - 3" Diameter - Venting Starter Kit - Horizontal Twin Pipe Concentric - 73-3/4" to 78-1/4" Straight Run
Model: PPKIT-3HC-78
Vent Pipe Diameter (Inches)
Maximum Straight Run (Inches)
Qty
$374.00
Ships in 3-4 Weeks
Add To Cart
Goodman Drain Kit - Horizontal - Left Vertical Flue
Model: RF000142
Qty
$54.00
Ships in 4-7 Business Days
Add To Cart
Goodman Flush Mount Vent Kit - 3" or 2"
$33.14
Ships in 2-5 Business Days
Model: 0170K00000S
Qty
$33.14
Ships in 2-5 Business Days
Add To Cart
Nest Thermostat E ( Energy Saving ) White
Model: T4000ES
Qty
$169.00
Only 1 In-Stock
Add To Cart
DuraVent PolyPro - 2" Diameter - Venting Starter Kit - Vertical Single Pipe - 37-3/4" to 42-1/4" Straight Run
Model: PPKIT-2VS-42
Vent Pipe Diameter (Inches)
Maximum Straight Run (Inches)
Qty
$314.00
Ships in 3-4 Weeks
Add To Cart
DuraVent PolyPro - 2" Diameter - Venting Starter Kit - Vertical Twin Pipe Concentric - 37-3/4" to 42-1/4" Straight Run
Model: PPKIT-2VC-42
Vent Pipe Diameter (Inches)
Maximum Straight Run (Inches)
Qty
$450.00
Ships in 3-4 Weeks
Add To Cart
DuraVent PolyPro - 2" Diameter - Venting Starter Kit - Horizontal Single Pipe - 13-3/4" to 18-1/4" Straight Run
Model: PPKIT-2HS-18
Vent Pipe Diameter (Inches)
Maximum Straight Run (Inches)
Qty
$150.00
Ships in 3-4 Weeks
Add To Cart
DuraVent PolyPro - 2" Diameter - Venting Starter Kit - Horizontal Twin Pipe - 13-3/4" to 18-1/4" Straight Run
Model: PPKIT-2HT-18
Vent Pipe Diameter (Inches)
Maximum Straight Run (Inches)
Qty
$287.00
Ships in 3-4 Weeks
Add To Cart
Features
View More

Features

Overview for Goodman GMVC960804CN

Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GMVC96 furnace uses a pair of steel heat exchangers to convert 96% of the energy used into comfort, Goodman's highest mark for a two-stage furnace. It is equipped with an advanced variable-speed blower motor, which scales circulation to the specific demands of your application in real-time. The GMVC960804CN was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. If you're looking for consistent comfort and incredible efficiency from a two-stage furnace, it's tough to beat Goodman's GMVC96.
  • Advanced Heat Exchanger Design
  • The GMVC96 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • Secondary Heat Exchanger
  • This furnace produces additional heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
  • Quiet Comfort
  • The blower and gas valve of the GMVC960804CN were selected for their incredibly low sound levels. Additionally, this unit offers an airflow system and fan speed options that allow it to operate quietly while providing consistent comfort.
  • Venting Options
  • The GMVC960804CN offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.
  • Secure Cabinet
  • All GMVC96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.
  • ComfortBridge Compatible
  • This furnace is compatible with Goodman's ComfortBridge communicating controls. ComfortBridge control streamlines the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics and troubleshooting.
  • Auto-Comfort
  • Goodman's Auto-Comfort mode is available in applications where the GMVC960804CN is used to distribute cooled air. This mode scales output up to the cooling demand in stages for improved comfort, efficiency, and dehumidification.
  • Easy Integration
  • The GMVC960804CN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.
  • Extended Warranty
  • Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Furnace
    UPC
    663051560987
    General Information
    Type
    Gas Furnace
    Product Line
    GMVC96
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    76800 BTU
    Low Fire Input
    56000 BTU
    Low Fire Output
    53760 BTU
    Maximum Air Flow
    1600 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    10.6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    21 Inches
    Product Height
    34 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    141 Pounds
    Shipping Weight
    141 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7368835
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
