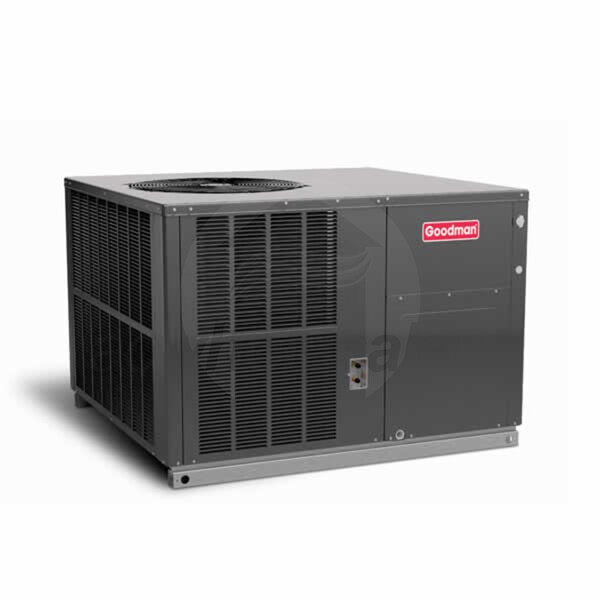

Goodman GPC14M - 2.0 Ton - Packaged Air Conditioner - 14.0 SEER - Downflow/Horizontal - 208-230/1/60

Model: GPC1424M41 Item Number: 69148
Goodman GPC1424M41
PREVIOUS
NEXT
Goodman GPC1424M41
Goodman GPC1424M41
Goodman GPC1424M41
Enlarge Image
Goodman GPC1424M41
Goodman GPC1424M41
Goodman GPC1424M41
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    319 Pounds Learn More
    319 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Packaged HVAC Unit
    UPC
    663051605497
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman GPC1424M41

Goodman's packaged air conditioners are the perfect cooling solution for nearly any residential or light commercial application. The GPC14M combines a Goodman condensor, evaporator coil, and blower to provide efficient cooling IN a single convenient unit. A rotary compressor means less maintenance, and Goodman's superior coil design helps to ensure efficient energy use. The GPC14M even includes convenient access panels that make for a quick installation and easy service.
  • Advanced Coil Design
  • The condenser coil of this packaged unit is designed with aluminum fins and copper tubing to maximize performance and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
  • Secure Cabinet
  • The cabinet of the GPC14M is built to last. A galvanized steel casing with a powder paint finish prevents fading and corrosion while louvered panels and a coil guard keep the most important components secure from damage.
  • Optional Electric Heat
  • With the GPC14M, you have the option to purchase an electric heat kit ranging from 5-20kw for field installation.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The EEM motor in the GPC14M reduces electrical consumption, ensuring efficient circulation.
  • Quiet Comfort
  • A sound insulated blower compartment and quiet horizontal discharge mean that the GPC14M provides comfort without disrupting your home.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The Goodman 20464501PDGK Horizontal Duct Cover Kit is required for downflow installation. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Packaged HVAC Unit
    UPC
    663051605497
    General Information
    Type
    Air Conditioner Packaged Unit
    Product Line
    GPC14M
    Product Category
    Packaged HVAC Unit
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410A
    Motor Type
    EEM
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow/Horizontal
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling Capacity
    24000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.0
    Maximum Air Flow
    1040 CFM
    Minimum Air Flow
    320 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    78 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    14.6 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Product Height
    34 3/4 Inches
    Product Width
    47 Inches
    Product Depth
    51 Inches
    Product Weight
    319 Pounds
    Shipping Weight
    319 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7513338
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
    Compressor Warranty
    Limited* 10 Years
