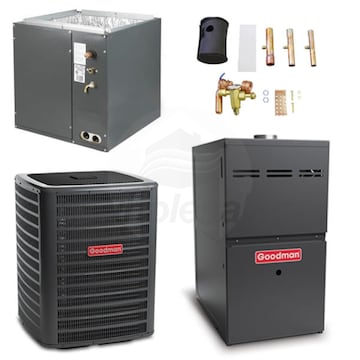

Goodman - 5.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 16.0 SEER - 80% AFUE - Upflow Installation

Model: GSXC1860GMVC8100U Item Number: 80963
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman GSXC1860GMVC8100U
PREVIOUS
NEXT
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Enlarge Image
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
Goodman GSXC1860GMVC8100U
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    481 Pounds Learn More
    481 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More
Bundle Includes 4 items
  • product image
    (1) Goodman GSXC18 - 5 Ton - Air Conditioner - 18 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC180601)
  • product image
    (1) Goodman GMVC80 - 100k BTU - Two-Stage Gas Furnace - 80% AFUE (GMVC801005CX)
  • product image
    (1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXC1860GMVC8100U

A Goodman high efficiency central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSXC18 air conditioner, a GMVC81005CX furnace, and a cased evaporator coil. With a SEER rating of 16 and a two-stage compressor, it is more efficient and consistent than a single stage counterpart. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSXC1860GMVC8100U air conditioner and furnace kit fits the bill perfectly.
  • Energy Efficient ECM Motor
  • PSC blower motors are energy hogs. The ECM motor in the GMVC81005CX provides more efficient, more intelligent airflow for your home.
  • UltraTech Compressor
  • A two-stage Copeland UltraTech scroll compressor provides the GSXC18 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
  • ComfortAlert
  • The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.
  • ComfortBridge Compatible
  • This air conditioner is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control streamlines the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics.
  • Advanced Heat Exchanger Design
  • The GMVC81005CX furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability.
  • Secondary Heat Exchanger
  • This furnace produces additional heat without using more fuel by directing combustion gases through a secondary heat exchanger before they are vented.
  • Venting Options
  • The GMVC81005CX offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air provided from within your home.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
    • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Model GMVC801005CX has been temporarily suspended from production.
    Bundle Includes 4 items
    • product kit image
      Goodman GSXC18 - 5 Ton - Air Conditioner - 18 Nominal SEER - Two-Stage - R-410a Refrigerant
      Model: GSXC180601
      Item Number: 79622
      Quantity: 1
    • product kit image
      Goodman GMVC80 - 100k BTU - Two-Stage Gas Furnace - 80% AFUE
      Model: GMVC801005CX
      Item Number: 100110
      Quantity: 1
    • product kit image
      Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil
      Model: CAPF4961C6
      Item Number: 26374
      Quantity: 1
    • product kit image
      Goodman 3.5 to 5 Ton Air Conditioner TXV Kit R410A Refrigerant
      Model: TX5N4
      Item Number: 26404
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSXC180601 Specifications
    GMVC801005CX Specifications
    CAPF4961C6 Specifications
    TX5N4 Specifications
    General Information
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling Capacity
    56500 BTU
    Nominal Cooling Capacity
    60000 BTU
    Heating BTU
    100000
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.0
    Maximum Air Flow
    1600 CFM
    Dimensions
    Product Weight
    481 Pounds
    Shipping Weight
    495 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    204635948
    General Information
    Type
    Condenser
    Product Line
    GSXC18
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling BTU
    60000
    Cooling Capacity
    60000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    18.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    74 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    31 Amps
    Recommended Breaker Size
    50 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    42 1/4 Inches
    Product Width
    35 3/4 Inches
    Product Depth
    35 3/4 Inches
    Product Weight
    304 Pounds
    Shipping Weight
    326 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years
    Compressor Warranty
    LIFETIME Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Gas Furnace
    Product Line
    GMVC80
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Installation Available
    Yes
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Heating BTU
    100000
    High Fire Input
    100000 BTU
    High Fire Output
    80000 BTU
    Low Fire Input
    70000 BTU
    Low Fire Output
    56000 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    10.6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    21 Inches
    Product Height
    33 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 Inches
    Shipping Weight
    124 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    202327701
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Installation Available
    Yes
    TXV Installed
    No
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 - 5.0 Tons
    Cooling BTU
    60000
    Nominal Minimum Cooling Capacity
    48000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    73 Pounds
    Shipping Weight
    83 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Evaporator Coil
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Product Category
    Forced Air Accessories
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
    Overview
    Product Category
    Forced Air Accessories
