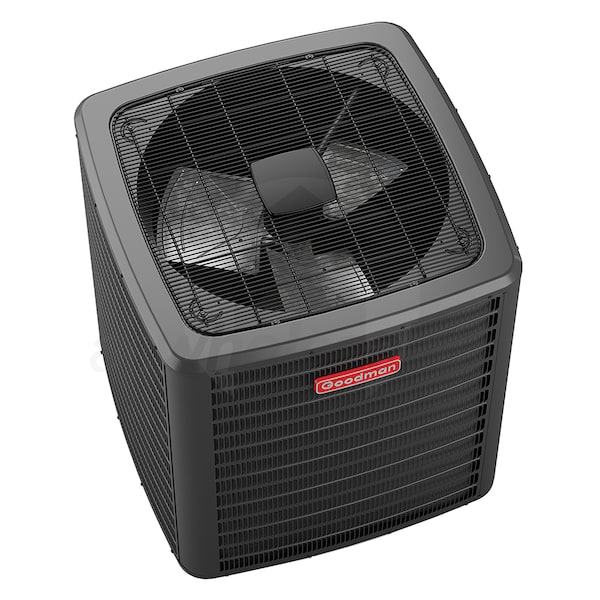

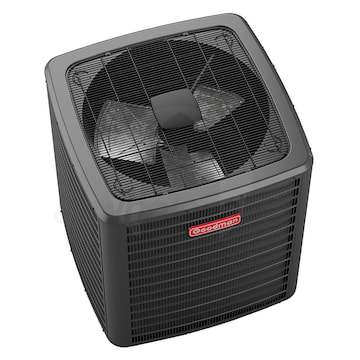

Goodman GSXC7 - 2.0 Ton - Air Conditioner - 17.2 SEER2 - Two Stage - R-410A Refrigerant - Premium

Model: GSXC702410 Item Number: 124453
Goodman GSXC702410
PREVIOUS
NEXT
Goodman GSXC702410
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    214 Pounds Learn More
    214 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Condenser
    Product Line
    GSXC7
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman GSXC702410

Goodman's air conditioners are all about reliable cooling at an affordable price. The GSXC7 line of air conditioners have a nominal SEER rating of 17.2 SEER2 and a Two-Stage Copeland Ultra-Tech scroll compressor. This means that your home's cooling is more efficient and consistent than it is with a standard single-stage AC. The savings don't stop at energy costs though, the GSXC7 is designed for quick installation and maintenance as well. It also includes advanced components that protect the coil and compressor to ensure the unit's longevity and your peace-of-mind. Order a GSXC7 today, and enjoy extremely efficient AC.
  • High Efficiency Scroll Compressor
  • This unit utilizes a high efficiency Two-Stage Copeland Ultra-Tech scroll compressor.
  • Quiet Comfort
  • This condenser also features a quiet two-speed ECM outdoor fan motor and a new venturi top panel for improved airflow and less noise.
  • Integrated Communicating Comfortbridge Technology
  • This air conditioner is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control streamlines the installation and maintenance processes by automatically detecting your equipment and providing diagnostics.
  • Coolcloud Compatible
  • Commissioning and diagnostics via Bluetooth indoor board using the CoolCloud application.
  • Copeland Comfortalert Built In Diagnostics
  • ComfortAlert diagnostics give homeowners peace-of-mind. This diagnostic module monitors and analyzes data from the Copeland Scroll compressor so you're able to pinpoint the root cause of the problem quickly and more accurately.
  • Copper Tube/Enhanced Aluminum Fin Coil
  • The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Factory-Installed Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • Ultra-Quiet
  • A compressor covered in a high-density sound blanket along with its high efficiency Two-Stage Copeland Ultra-Tech scroll compressor, makes for an extremely quiet air conditioner.
  • Secure Cabinet
  • The removable grille-style top design is UL 60335-2-40 compliant.
  • Heavy-Gauge Galvanized-Steel Cabinet
  • This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Specifications
    View More

    Specifications

    General Information
    Type
    Condenser
    Product Line
    GSXC7
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    71 dB
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    17.2
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    15.3 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    39 1/2 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    214 Pounds
    Shipping Weight
    236 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    Limited* 10 Years Years
    Compressor Warranty
    LIFETIME Years
