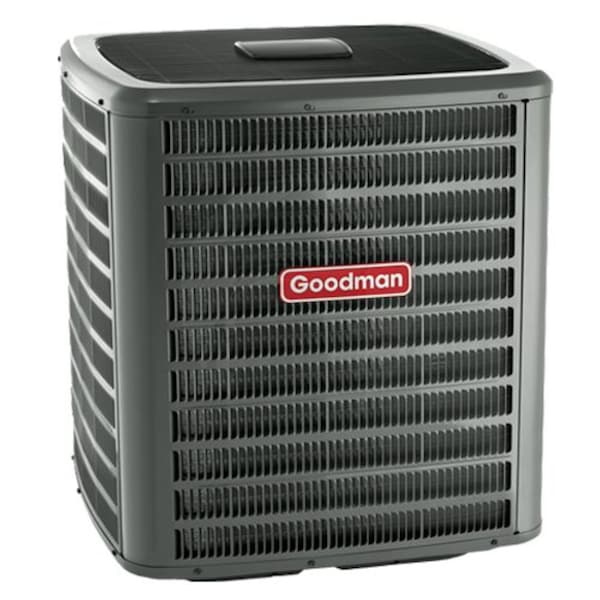

Goodman 3 Ton 16 SEER Heat Pump Air Conditioner Condenser

Model: GSZ160361 Item Number: 72291
Goodman GSZ160361
PREVIOUS
NEXT
Goodman GSZ160361
Goodman GSZ160361
Goodman GSZ160361
Goodman GSZ160361
Goodman GSZ160361
Goodman GSZ160361
Enlarge Image
Goodman GSZ160361
Goodman GSZ160361
Goodman GSZ160361
Watch Video
Goodman GSZ160361
Watch Video
Goodman GSZ160361
Watch Video
Goodman GSZ160361
Watch Video
Goodman GSZ160361
Watch Video
Goodman GSZ160361
Watch Video
Goodman GSZ160361
Goodman GSZ160361
Goodman GSZ160361
Goodman GSZ160361
View All
Not For Individual Sale
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    220 Pounds Learn More
    220 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Pump
    UPC
    663051551381
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman GSZ160361

Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GSZ16 heat pump has a nominal SEER rating of 16 and a HSPF rating of up to 9.0 to ensure efficient comfort regardless of your application. It includes advanced components that protect the coil and compressor to ensure reliable operation and peace of mind.
  • SmartShift
  • Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operation.
  • Filter Drier
  • A biflow filter drier is installed in the liquid line of this heat pump. It serves two important purposes: removing moisture and trapping impurities. This prevents freezing and blockages that can negatively impact the operation of the heat pump.
  • Advanced Coil Design
  • The condenser coil of this heat pump is designed with smaller aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • High-Efficiency Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Compressor Protection
  • Goodman installed two layers of compressor protection in the GSZ16. A suction accumulator that collects excess liquid refrigerant and a crankcase heater to help maintain a compressor temperature that discourages oil migration.
  • Quiet Comfort
  • The louvered top and three-bladed condenser fan of the GSZ16 was designed to reduce noise levels without compromising performance. This model also has a high-capacity discharge muffler to curtail vibration noise.
  • Secure Cabinet
  • The cabinet of the GSZ16 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • ECM Motor
  • The GSZ16 has an ECM motor that is cost and energy efficient and can reduce operating costs. They also are not prone to overheating.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Pump
    UPC
    663051551381
    General Information
    Type
    Heat Pump Condenser
    Product Line
    GSZ16
    Product Category
    Heat Pump
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    73 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    19 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    40 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    220 Pounds
    Shipping Weight
    240 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    Limited* 10 Years Years
