Grundfos UP15-10SU7P TLC Comfort System Circulator Pump, 1/25 HP, Stainless Steel, 115V, 3/4" FNPT Mount, Line Cord, Timer, Check Valve

Model: 595916 Item Number: 36819
Grundfos 595916
PREVIOUS
NEXT
Grundfos 595916
Enlarge Image
Our Price: $416.00
synchrony card icon
$70 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Thursday, December 19th
Shipping to60601
Grundfos UP15-10SU7P TLC Comfort System Circulator Pump, 1/25 HP, Stainless Steel, 115V, 3/4
Grundfos UP15-10SU7P TLC Comfort System Circulator Pump, 1/25 HP, Stainless Steel, 115V, 3/4" FNPT Mount, Line Cord, Timer, Check Valve Model: 595916 Item Number: 36819
$416.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    8 Pounds Learn More
    8 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Water Heater - Pumps and Controls
    UPC
    05700394894807
Features
View More

Features

Overview for Grundfos 595916

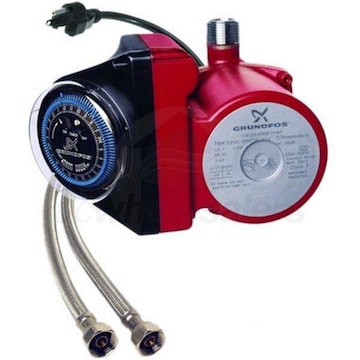

The Grundfos UP 15-10 SU7P/TLC includes a timer, line cord, check valve and 2 flex hoses (1/2" FNPS x 1/2" FNPS x 12"). The timer control is designed to switch the circulator on and off at preset times, allowing the user to configure the operation of the circulator during peak periods of use throughout the day.
  • Grundfos 595916 Features
  • Maintenance free
  • Low noise level
  • Low energy consumption
  • Wide range
  • Corrosion-resistant stainless steel pump housing
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Pumps and Controls
    UPC
    05700394894807
    General Information
    Product Category
    Water Heater - Pumps and Controls
    Control Type
    Timer
    Connection Type
    NPT
    Mount Type
    In-Line
    Material
    Stainless Steel
    Performance
    Maximum Head
    5.25 Feet
    Maximum Flow Rate
    6.16 GPM
    Minimum Fluid Temperature
    35.6 F
    Maximum Fluid Temperature
    150.8 F
    Maximum Operating Pressure
    145 PSI
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Connection Size
    3/4 Inch
    Product Height
    5 7/16 Inches
    Product Width
    6 1/4 Inches
    Product Depth
    3 7/16 Inches
    Product Weight
    8 Pounds
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    2 Years
