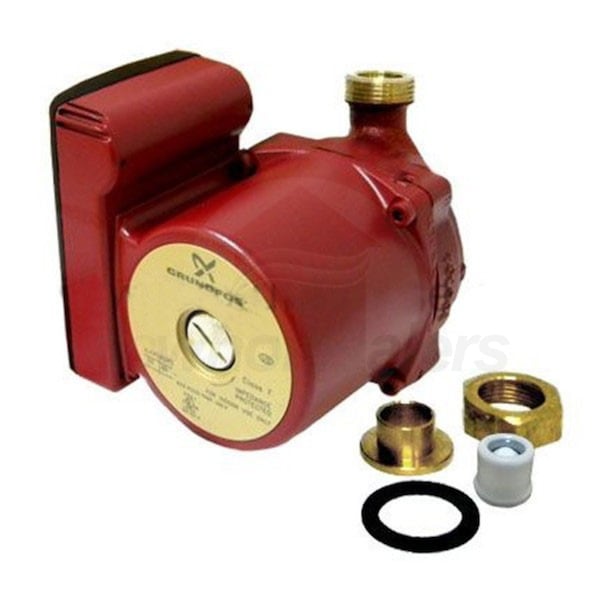

Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 3/4" Sweat - Check Valve

Model: 59896124 Item Number: 36777
Grundfos 59896124
PREVIOUS
NEXT
Grundfos 59896124
Enlarge Image
Our Price: $465.00
synchrony card icon
$78 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, November 18th
Shipping to60601
Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 3/4
Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 3/4" Sweat - Check Valve Model: 59896124 Item Number: 36777
$465.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    8 Pounds Learn More
    8 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    05700391411656
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Grundfos 59896124

Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-18BUC7 is a single speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Bronze Construction
  • The Grundfos UP15-18BUC7 is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UP15-18BUC7 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UP15-18BUC7 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    05700391411656
    General Information
    Product Line
    UP15-18
    Product Category
    Boiler Accessories
    Motor Type
    Single Speed
    Connection Type
    Sweat
    Mount Type
    In-Line
    Material
    Bronze
    Drive Type
    Wet Rotor
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    Yes
    Performance
    Maximum Head
    14.4 Feet
    Maximum Flow Rate
    14.5 GPM
    Minimum Fluid Temperature
    35.6 F
    Maximum Fluid Temperature
    230 F
    Horsepower
    1/25 HP
    Maximum Operating Pressure
    145 PSI
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.55 Amps
    Dimensions
    Connection Size
    3/4 Inch
    Product Height
    5 1/4 Inches
    Product Width
    5 1/8 Inches
    Product Depth
    7 3/4 Inches
    Product Weight
    8 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
