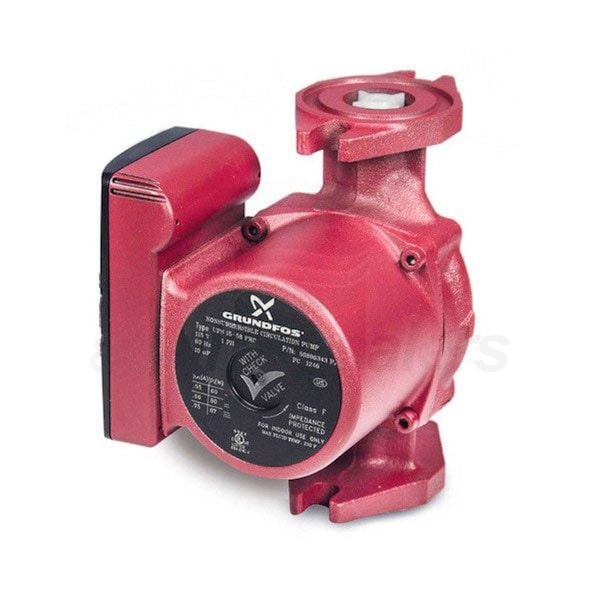

Grundfos UPS - 1/25 HP - 3-Speed Circulation Pump - Cast Iron - GF 15/26 Rotated Flange - Check Valve

Model: 59896343 Item Number: 36877
Grundfos 59896343
PREVIOUS
NEXT
Grundfos 59896343
Grundfos 59896343
Enlarge Image
Grundfos 59896343
Grundfos 59896343
View All
Our Price: $196.00
synchrony card icon
$33 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, November 25th
Shipping to60601
Grundfos UPS - 1/25 HP - 3-Speed Circulation Pump - Cast Iron - GF 15/26 Rotated Flange - Check Valve
Grundfos UPS - 1/25 HP - 3-Speed Circulation Pump - Cast Iron - GF 15/26 Rotated Flange - Check Valve Model: 59896343 Item Number: 36877
$196.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    7 Pounds Learn More
    7 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    05700395856408
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Grundfos 59896343

Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS15-58FRC is a three speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid cast iron construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Cast Iron Construction
  • The Grundfos UPS15-58FRC is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UPS15-58FRC pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UPS15-58FRC lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    05700395856408
    General Information
    Product Line
    UPS15-58
    Product Category
    Boiler Accessories
    Motor Type
    Multi-Speed
    Connection Type
    Flanged
    Mount Type
    In-Line
    Material
    Cast Iron
    Drive Type
    Wet Rotor
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    No
    Performance
    Maximum Head
    19.4 Feet
    Maximum Flow Rate
    17.2 GPM
    Minimum Fluid Temperature
    35.6 F
    Maximum Fluid Temperature
    230 F
    Horsepower
    1/25 HP
    Maximum Operating Pressure
    145 PSI
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.75 Amps
    Dimensions
    Product Height
    5 1/4 Inches
    Product Width
    5 5/48 Inches
    Product Depth
    6 1/2 Inches
    Product Weight
    7 Pounds
    Flange Connection
    GF 15/26
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
