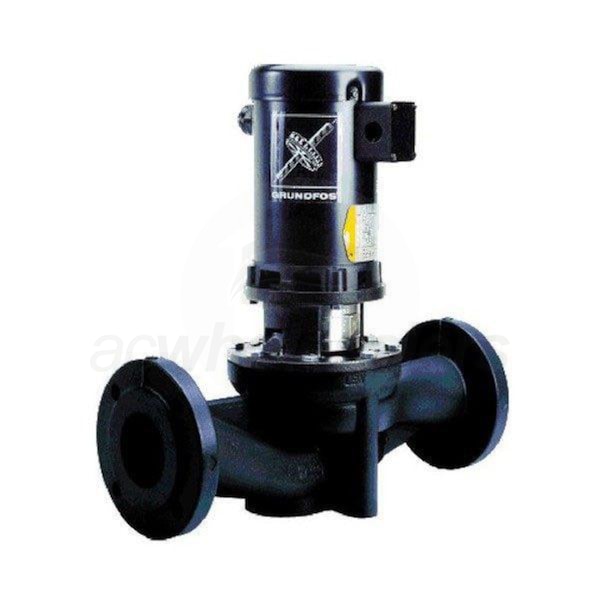

Grundfos TP40-160/2 Direct Coupled In-Line Circulator, PUMP END ONLY, Bronze, GF 40/43 Flange Mount - Requires 3/4 HP, 3,450 RPM Motor

Model: 91122126 Item Number: 36534
Grundfos 91122126
PREVIOUS
NEXT
Grundfos 91122126
Enlarge Image
Our Price: $4,253.00
synchrony card icon
$54 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Only 1 In-Stock
Ships Tuesday, November 26th
Shipping to60601
Grundfos TP40-160/2 Direct Coupled In-Line Circulator, PUMP END ONLY, Bronze, GF 40/43 Flange Mount - Requires 3/4 HP, 3,450 RPM Motor
Grundfos TP40-160/2 Direct Coupled In-Line Circulator, PUMP END ONLY, Bronze, GF 40/43 Flange Mount - Requires 3/4 HP, 3,450 RPM Motor Model: 91122126 Item Number: 36534
$4,253.00
Only 1 In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    52 Pounds Learn More
    52 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    05700394584326
Features
View More

Features

Overview for Grundfos 91122126

The Grundfos TP40-160/2 is a direct coupled, single-stage, in-line centrifugal pump. The TP 40-160/2 is a top-pull-out design, meaning the pump head (which includes the motor, motor stool and impeller) can be detached without interfering with the pump housing's pipework. This simplifies the routine service work needed to maintain the performance of these pumps, enabling a single person to service even the largest pumps. The Grundfos TP series pumps are specifically designed for the circulation of liquids in heating and air-conditioning systems. Typical applications for this bronze pump include: district heating/cooling, industrial cooling/processes, boiler/hydronic heating, domestic hot water, chilled water, air conditioning systems, cooling towers, radiant floor heating, solar and snow melt systems.
  • Advanced fan design
  • Results in dramatically reduced noise levels
  • All-in-one-solution
  • The coupling and shaft are friction-welded together in order to create a completely stable mechanical unit, drastically reducing the vibration levels and prolongs the lifetime of the shaft seals and bearings
  • Mechanically and hydraulically balanced impeller
  • Further minimizes vibration levels and axial forces while maximizing motor bearing and shaft seal lifetime
  • Anti-corrosion surface
  • Cataphoresis surface treatment consisting of Powercon cathodic electrocoating and zinc phosphate coating results in maximal protection against corrosion and a longer lasting inside surface that keeps efficiency high
  • Renewable neck rings
  • Makes it easy to upgrade your pump when necessary
  • Unique design of shaft seal chamber
  • Eliminates the need for external piping and ensures optimal water circulation, prolonging the lifetime of the shaft seal
  • Grundfos Blueflux IE3
  • Only motors with the official IE3 logo are certified maximum efficiency motors
  • Compact perfection
  • A large shaft diameter and a short distance from the impeller to the motor maximizes stability and results in lower maintenance costs
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    05700394584326
    General Information
    Product Line
    TP40-160/2
    Product Category
    Boiler Accessories
    Motor Type
    Single Speed
    Connection Type
    Flanged
    Mount Type
    In-Line
    Material
    Bronze
    Drive Type
    Close-Coupled
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    Yes
    Performance
    Maximum Head
    52.5 Feet
    Maximum Flow Rate
    59.4 GPM
    Minimum Fluid Temperature
    5 F
    Maximum Fluid Temperature
    284 F
    Maximum Operating Pressure
    145 PSI
    Dimensions
    Connection Size
    1 1/2 Inches
    Product Height
    11 1/2 Inches
    Product Depth
    8 Inches
    Product Weight
    52 Pounds
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    2 Years
