Overview for Grundfos 99452454

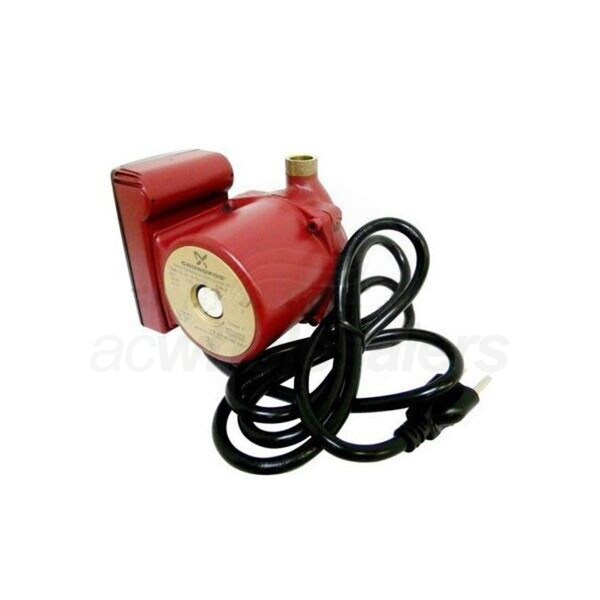

Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-10B5/TLC is a single speed circulator with a wet-rotor fluid movement design. The circulator also includes a digital timer for hassle-free operation. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while a line cord electrical connection supplies power to the pump with a simple outlet.
  • Durable Bronze Construction
  • The Grundfos UP15-10B5/TLC is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UP15-10B5/TLC pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UP15-10B5/TLC lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
  • Product Includes
  • Digital Timer
  • 6-Foot Line Cord
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    General Information
    Product Line
    UP15-10
    Product Category
    Boiler Accessories
    Motor Type
    Single Speed
    Connection Type
    Sweat
    Mount Type
    In-Line
    Material
    Bronze
    Drive Type
    Wet Rotor
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    Yes
    Performance
    Maximum Head
    6.23 Feet
    Maximum Flow Rate
    8.37 GPM
    Minimum Fluid Temperature
    35.6 F
    Maximum Fluid Temperature
    150.8 F
    Horsepower
    1/25 HP
    Maximum Operating Pressure
    145 PSI
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.22 Amps
    Dimensions
    Connection Size
    1/2 Inch
    Product Height
    6 5/16 Inches
    Product Width
    5 1/2 Inches
    Product Depth
    5 Inches
    Product Weight
    6.5 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
