Grundfos 1/16 HP Variable-Speed Circ Pump Stainless GF 15/26 Flange

Model: ALPHA2 15-55SF Item Number: 76802
Grundfos ALPHA2 15-55SF
PREVIOUS
NEXT

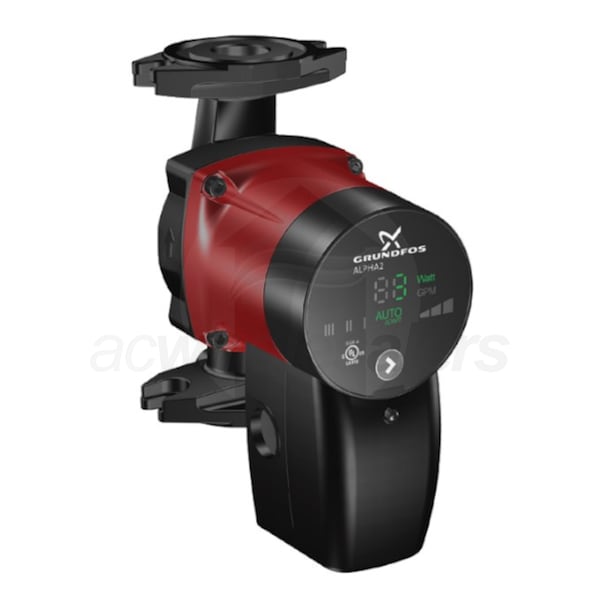

Grundfos ALPHA2 15-55SF
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Boiler Accessories
    UPC
    05712607918767
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Grundfos ALPHA2 15-55SF

With over 65 years of hydronic experience, Grundfos continues to lead the way with the ALPHA2. The ALPHA2 15-55SF is a variable speed circulator designed to provide consistent flow in a wide variety of applications. It comes complete with an integrated check-valve, foam insulation jacket, and nut captures for flanges. With a flange constructed of stainless steel, the ALPHA2 is designed to provide year after year of reliable use.
  • AUTOADAPT™
  • AUTOADAPT™ will reduce power consumption by up to 85%; finding the optimum setting and then continuing to adjust as needed.
  • Durable Stainless Steel Construction
  • The Grundfos ALPHA2 15-55SF flange is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
  • Preset Performance Modes
  • Grundfos ALPHA2 pumps come with a number of preset operation modes, designed to simplify the integration of the pump into your hydronic system.
  • Large, Easy-to-Read Display
  • The integrated bright LED-lit display allows at-a-glance readings of either flow rate or power consumption.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    05712607918767
    General Information
    Product Line
    ALPHA2
    Product Category
    Boiler Accessories
    Motor Type
    Variable Speed
    Connection Type
    Flanged
    Mount Type
    In-Line
    Material
    Stainless Steel
    Drive Type
    Wet Rotor
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    Yes
    Performance
    Maximum Head
    19 Feet
    Maximum Flow Rate
    21 GPM
    Minimum Fluid Temperature
    36 F
    Maximum Fluid Temperature
    230 F
    Horsepower
    1/16 HP
    Maximum Operating Pressure
    150 PSI
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.65 Amps
    Dimensions
    Product Height
    6 1/2 Inches
    Product Width
    3 9/16 Inches
    Product Depth
    6 3/8 Inches
    Flange Connection
    GF 15/26
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
