Honeywell Aquastat High/Low Limit Horizontal Mount Controller w/ SPDT

Model: L6006C1018 Item Number: 33901
Honeywell L6006C1018
PREVIOUS
NEXT
Honeywell L6006C1018
Enlarge Image
Our Price: $166.00
synchrony card icon
$28 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, December 23rd
Shipping to60601
Honeywell Aquastat High/Low Limit Horizontal Mount Controller w/ SPDT
Honeywell Aquastat High/Low Limit Horizontal Mount Controller w/ SPDT Model: L6006C1018 Item Number: 33901
$166.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    1.35 Pounds Learn More
    1.35 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Thermostats and Controls
    UPC
    085267000246
Features
View More

Features

Overview for Honeywell L6006C1018

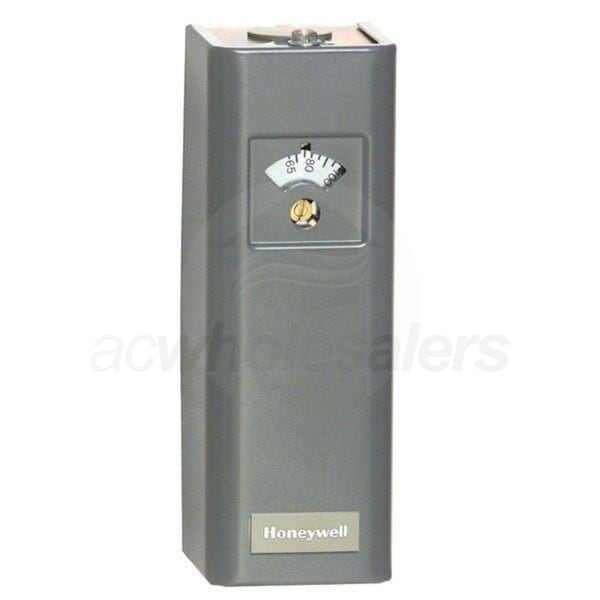

The Honeywell L6006C1018 Aquastat Controller For Circulator & High/Low Limit Applications is an immersion type device for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
  • Honeywell Home-Resideo L6006C1018 Features
  • Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint
  • Visible control point scale and external adjustment screw permit easy setting
  • Horizontal or vertical insertion of the sensing element
  • Direct or well immersion of the sensing element
  • Models available for strap-on mounting
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
  • Heat Conductive Compound
  • Product Includes
  • Heat Conductive Compound
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    UPC
    085267000246
    General Information
    Product Line
    L600
    Product Category
    Thermostats and Controls
    Limit Type
    High or Low
    High Differential Temperature Type
    Adjustable
    Performance
    Minimum Operating Temperature
    65 F
    Maximum Operating Temperature
    200 F
    Electrical Data
    Maximum Load at 120V - AFL
    8 Amps
    Maximum Load at 120V - ALR
    48 Amps
    Maximum Load at 240V - AFL
    5.1 Amps
    Maximum Load at 240V - Resistive
    30.6 Amps
    Voltage
    120/240 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Bulb Size
    3/8 Inch
    Product Height
    5 5/8 Inches
    Product Width
    2 Inches
    Product Length
    2 1/8 Inches
    Product Weight
    1.35 Pounds
    Certifications
    CSA Listed
    Yes
    UL Listed
    Yes
    American Gas Association Certification
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
