Honeywell Triple Aquastat Relay for Oil Applications, Vertical Case

Model: L8124A1007 Item Number: 35541

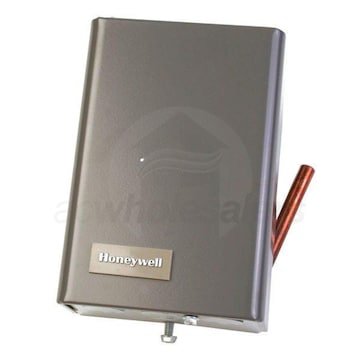

Honeywell L8124A1007
PREVIOUS
NEXT
Honeywell L8124A1007
Enlarge Image
Our Price: $372.00
synchrony card icon
$62 / Month
Suggested monthly payments with 6 month financing.
Only 4 In-Stock
Ships Monday, December 23rd
Shipping to60601
Honeywell Triple Aquastat Relay for Oil Applications, Vertical Case
Honeywell Triple Aquastat Relay for Oil Applications, Vertical Case Model: L8124A1007 Item Number: 35541
$372.00
Only 4 In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    3.05 Pounds Learn More
    3.05 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Thermostats and Controls
    UPC
    085267054850
Features
View More

Features

Overview for Honeywell L8124A1007

The Honeywell L8124A1007 Triple Aquastat Relay Immersion Type Controller for High Limit Protection is an immersion-type controller that combines high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.
  • Honeywell Home-Resideo L8124A1007 Features
  • Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems
  • Provide multizone control by using a separate circulator and R845 Relay for each zone
  • Mount directly to boiler
  • Requires 24 Vac thermostat with heat anticipator set at .2A
  • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
  • Product Includes
  • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    UPC
    085267054850
    General Information
    Product Line
    L812
    Product Category
    Thermostats and Controls
    Limit Type
    High and Low
    High Differential Temperature Type
    Fixed
    Low Differential Temperature Type
    Adjustable
    Performance
    Minimum Operating Temperature
    130 F
    Maximum Operating Temperature
    240 F
    Maximum Operating Pressure
    200 PSI
    Electrical Data
    Maximum Load at 120V - AFL
    7.4 Amps
    Maximum Load at 120V - ALR
    44.4 Amps
    Maximum Load at 240V - AFL
    3.7 Amps
    Maximum Load at 240V - Resistive
    22.2 Amps
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Height
    6 1/8 Inches
    Product Width
    3 1/8 Inches
    Product Length
    4 5/16 Inches
    Product Weight
    3.05 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
