Honeywell Aquastat Immersion Controller Relay 120-240F Range

Model: L8148J1009 Item Number: 33918
Honeywell L8148J1009
PREVIOUS
NEXT
Honeywell L8148J1009
Enlarge Image
Our Price: $343.00
synchrony card icon
$58 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, December 23rd
Shipping to60601
Honeywell Aquastat Immersion Controller Relay 120-240F Range
Honeywell Aquastat Immersion Controller Relay 120-240F Range Model: L8148J1009 Item Number: 33918
$343.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    4.35 Pounds Learn More
    4.35 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Thermostats and Controls
    UPC
    085267055239
Features
View More

Features

Overview for Honeywell L8148J1009

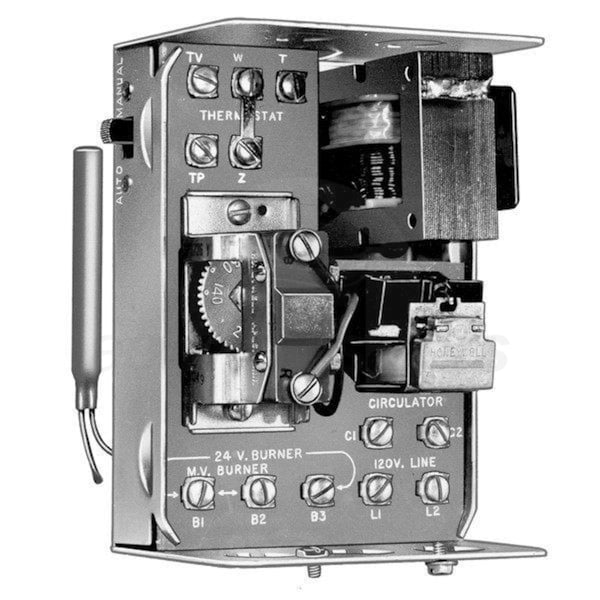

The Honeywell L8148J1009 Aquastat Relay Immersion Type Controller is an immersion-type controller that combines high limit protection with switching relay control of burner and circulator motors.
  • Honeywell Home-Resideo L8148J1009 Features
  • High limit opens burner circuit only
  • Include transformer and accessory terminals for adding a remote low limit controller
  • Case available for horizontal or vertical mounting
  • Well adapter, tube of heat conductive compound and range stops
  • Product Includes
  • Well adapter, tube of heat conductive compound and range stops
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    UPC
    085267055239
    General Information
    Product Line
    L814
    Product Category
    Thermostats and Controls
    Limit Type
    High
    High Differential Temperature Type
    Fixed
    Electrical Data
    Maximum Load at 120V - AFL
    7.4 Amps
    Maximum Load at 120V - ALR
    44.4 Amps
    Maximum Load at 240V - AFL
    3.7 Amps
    Maximum Load at 240V - Resistive
    22.7 Amps
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Capillary Length
    4 1/2 Inches
    Product Height
    6 1/8 Inches
    Product Width
    3 1/8 Inches
    Product Length
    4 5/16 Inches
    Product Weight
    4.35 Pounds
    Certifications
    CSA Listed
    Yes
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
