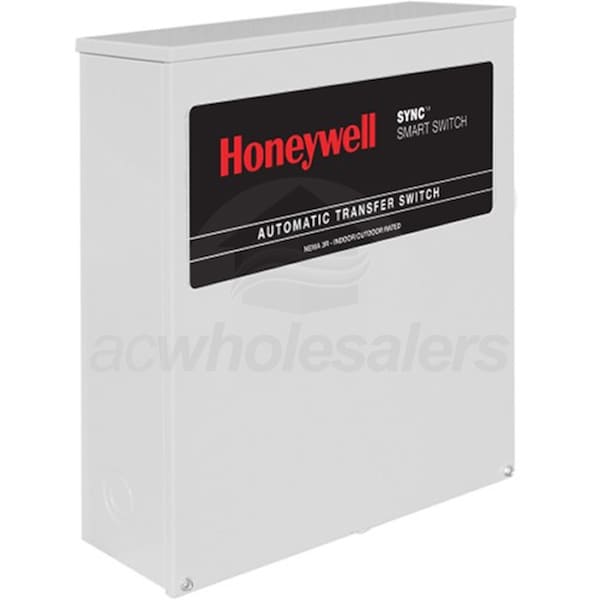

Honeywell™ 100-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management

Model: RXSK100A3 Item Number: 77440
Honeywell RXSK100A3
PREVIOUS
NEXT
Honeywell RXSK100A3
Enlarge Image
Our Price: $449.00

Factory-Direct
Ships in 16-20 Weeks
Honeywell™ 100-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management
Honeywell™ 100-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management Model: RXSK100A3 Item Number: 77440
$449.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    20 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
Recommended Accessories
View More
Installation Accessories
Generac Mobile Link™ Cellular 4G LTE Remote Monitoring System
Model: 7169
Qty
$327.99
In-Stock
Add To Cart
Features
View More

Features

Overview for Honeywell RXSK100A3

  • Honeywell™ 100-Amp Smart Automatic Transfer Switch
  • Designed speficially for Honeywell™ SYNC™ Controllers
  • Designed For Standard Installation*
  • Requires a sub-panel for overload protection
  • DPM Technology So Your Generator Works Smarter
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (8) Generac Load Managers (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable & pad-lockable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Honeywell Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 10,000 Amps --- Lug Range: 1/0 - #14
  • Best-In-Class 5-Year Limited Warranty - UL Listed
  • Specifications
    View More

    Specifications

    Overview
    Weight
    20 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Product Length
    20 Inches
    Product Width
    14.5 Inches
    Product Height
    7 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    24000 Watts
    Rated Amps
    100 Amps
    Enclosure
    NEMA 3R
    Transfer Switch Style
    Standard Installation
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Poles
    2 Poles
    ATS Service Disconnect
    No
    Max Utility Input
    100 Amps
    Max Generator Input
    100 Amps
    Maximum Wattage
    24000 Watts
    UL Listed
    Yes
