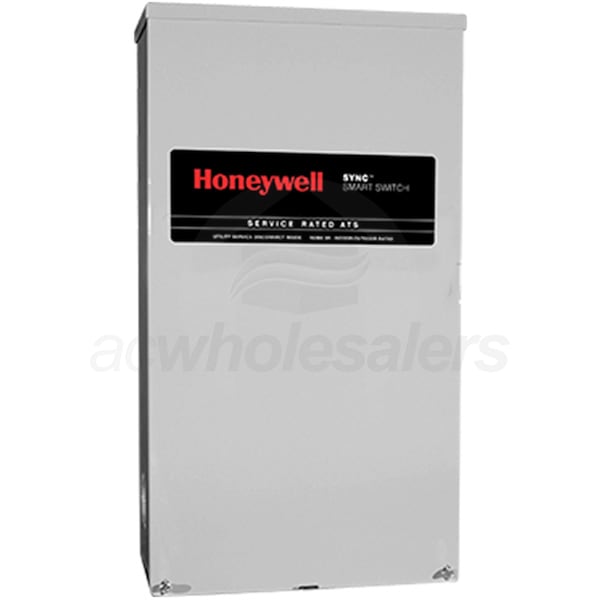

Honeywell™ 200-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management (Service Disconnect)

Model: RXSM200A3 Item Number: 77444
Honeywell RXSM200A3
PREVIOUS
NEXT
Honeywell RXSM200A3
Enlarge Image
Our Price: $869.00

Factory-Direct
Ships in 3-4 Weeks
Honeywell™ 200-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management (Service Disconnect)
Honeywell™ 200-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management (Service Disconnect) Model: RXSM200A3 Item Number: 77444
$869.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator Transfer Switches
Recommended Accessories
View More
Installation Accessories
Generac Mobile Link™ Cellular 4G LTE Remote Monitoring System
Model: 7169
Qty
$327.99
Ships in 8-12 Weeks
Add To Cart
Features
View More

Features

Overview for Honeywell RXSM200A3

  • Honeywell™ 200-Amp Automatic Transfer Switch
  • Designed specifically for Honeywell™ SYNC™ Controllers
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • DPM Technology So Your Generator Works Smarter
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (8) Generac Load Managers (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Honeywell Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: 2/0 - #14
  • Best- In-Class 5-Year Limited Warranty - UL Listed
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator Transfer Switches
    Overview
    Product Category
    Generator Transfer Switches
    Weight
    39 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Product Length
    30 Inches
    Product Width
    13.5 Inches
    Product Height
    7 Inches
    UPC
    696471069808
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    48000 Watts
    Rated Amps
    200 Amps
    Enclosure
    NEMA 3R
    Transfer Switch Style
    Service Disconnect
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Poles
    2 Poles
    ATS Service Disconnect
    Yes
    Max Utility Input
    200 Amps
    Max Generator Input
    200 Amps
    Maximum Wattage
    48000 Watts
    UL Listed
    Yes
