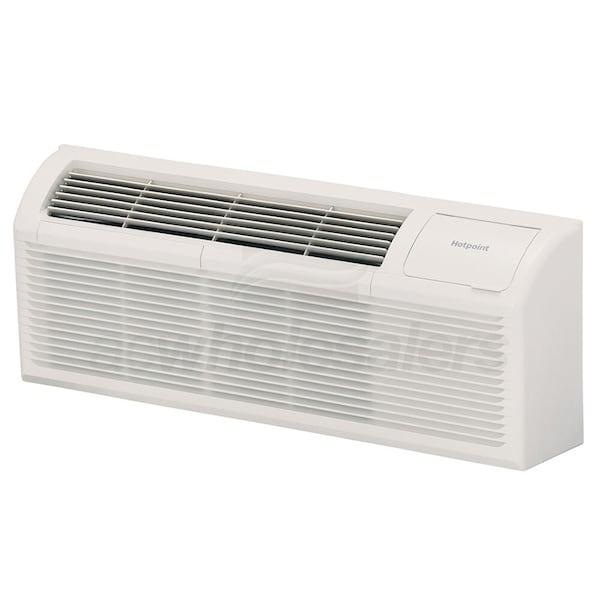

Hotpoint - 9k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.4 kW Electric Heat - 208-230 Volt - R-32

Model: AH12H09D3B Item Number: 145775
Hotpoint AH12H09D3B
PREVIOUS
NEXT
Hotpoint AH12H09D3B
Hotpoint AH12H09D3B
Enlarge Image
Hotpoint AH12H09D3B
Hotpoint AH12H09D3B
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    107 Pounds Learn More
    107 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    PTAC
    Product Line
    AH12H
Cooling Capacity (BTU/Hr)
Select Attribute
Voltage (Volts)
Select Attribute
Electric Heat Capacity (kW)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Hotpoint AH12H09D3B

Engineered for durability, Hotpoint PTACs are built with durable materials to withstand the elements. The self-diagnostics feature helps you identify service needs, making service calls quick and easy. Hotpoint PTACs gives the guests control over their comfort with an easy-to-use control panel.
  • Three Speed Fan
  • Hotpoint PTACs come with three different fan speeds to choose from, giving every guest control over their own comfort.
  • Four Temperature Limiting Options
  • All Hotpoint PTACs offer four temperature options for comfort and peak efficiency.
  • Intuitive Display
  • The control panel of the Hotpoint PTACs allow guest to easily set their preferred settings, helping reduce maintenance calls.
  • Power Cord Included
  • Hotpoint PTACs are equipped with a LCDI cord for fast and easy installation.
  • Freeze and Frost Protection
  • Hotpoint PTACs operate in peak conditions with indoor frost and automatic freeze control.
  • Auto Power Recovery
  • Hotpoint PTACs automatically resume operation after a power failure, reducing maintenance calls.
  • Self-Diagnostics
  • Each Hotpoint PTAC comes with a nine-point diagnostic code system that makes it easy to solve service issues.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
  • The state of California requires 10.8 EER and 2.9 COP when replacing your PTAC. In new construction applications, the state of California requires 14 EER and 3.7 COP.
  • Specifications
    View More

    Specifications

    General Information
    Type
    PTAC
    Product Line
    AH12H
    Product Category
    PTAC Unit
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heat Pump + Electric Heat
    Refrigerant Type
    R-32
    Electric Heat
    Yes
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    UPC
    084691923947
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Heating Capacity
    8100 BTU
    Electric Heat Capacity
    3.4 kW
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.4
    Cooling Power Input
    785 Watts
    Maximum Air Flow
    435 CFM
    Minimum Air Flow
    394 CFM
    Heating Power Input
    716 Watts
    Minimum Operating Temperature
    62 F
    Maximum Operating Temperature
    86 F
    COP Learn More
    COP
    Coefficient of performance or COP is a rating that indicates a system's heating efficiency. The higher the COP, the more efficiently the system heats.
    3.4
    Electrical Data
    Plug Type
    NEMA 6-20P
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Product Height
    16 Inches
    Product Width
    42 Inches
    Product Depth
    21 Inches
    Product Weight
    107 Pounds
    Shipping Weight
    132 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
