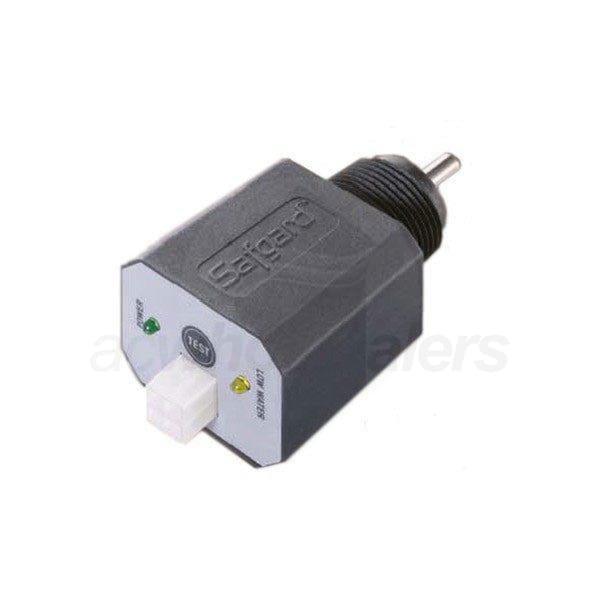

Hydrolevel Safgard 1100 Low Water Cut-Off with Burner Circuit Test Button, 24 VAC, Standard Wiring Harness

Model: 1100 Item Number: 36194
Hydrolevel 1100
PREVIOUS
NEXT
Hydrolevel 1100
Enlarge Image
Our Price: $128.00
synchrony card icon
$22 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
Hydrolevel Safgard 1100 Low Water Cut-Off with Burner Circuit Test Button, 24 VAC, Standard Wiring Harness
Hydrolevel Safgard 1100 Low Water Cut-Off with Burner Circuit Test Button, 24 VAC, Standard Wiring Harness Model: 1100 Item Number: 36194
$128.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    15 Pounds Learn More
    15 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    642277451101
Features
View More

Features

Overview for Hydrolevel 1100

The Safgard 1100 Series low water cut-offs by Hydrolevel combine Hydrolevel's 35 years of electronic boiler control experience, advanced microchip technology and design input from heating professionals. The result is the smallest, easiest-to-install, low water cut-offs available for residential hot water boilers. Hydrolevel controls utilize a non-moving, heavy duty, electronic probe to sense liquid levels. The probe can be installed in an equalizing line or directly into a boiler or water tank in accordance with manufacturers' instructions and local and State codes. When water is in contact with the probe, it completes a circuit between the stainless steel probe tip and the tank or boiler surface in which the probe is installed. When water level drops below the probe, the circuit opens. Hydrolevel low water cut-offs for hydronic heating systems use the water signal to allow the burner to operate. If the water level drops below the probe, the circuit opens and the cut-off shuts down the burner. With today's homes designed to maximize living space, boilers are being squeezed into ever-smaller areas. In a closet, under the stairs or any tight spot, the compact size of the 1100 Series is designed to fit any application setting. Hydrolevel provides step-by-step, diagramed instructions for fast, easy installation and wiring. The Model 1100 includes a plug-in wire harness with labeled quick-connects for 24 volt wiring with no guessing. The Model 1100 and Model 1150 are the only cut-offs designed for residential water boilers to offer a test button. This feature allows for testing the control without lowering the water level. And with the 1100 Series, the prescribed maintenance does not require annual probe removal as with other brands. The 1100 Series features Power and Low Water indicating lights for easy troubleshooting. The 1100 Series cut-offs feature heavy duty relay contacts and a tough, impact-resistant housing made from state-of-the-art polymers.
  • Low Maintenance
  • No moving parts to wear or hang up, as in float devices
  • Compact Size
  • Designed to fit in tight spaces
  • More Probe Plate Space
  • Large probe tip puts more conductive surface in the water, leading to more dependable operation and less chance of nuisance boiler shutdowns
  • Power and Low Water LED Indicators
  • Makes troubleshooting fast and easy
  • Automatic Reset
  • Shuts down the burner when water drops below the probe. Automatically restores the burner circuit upon return of a safe water level
  • Test Button
  • Tests control operation without lowering the water level
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    642277451101
    General Information
    Product Category
    Boiler Accessories
    Performance
    Maximum Operating Pressure
    50 PSI
    Electrical Data
    Voltage
    24 Volts
    Power Consumption
    1 Watt
    Frequency
    60 Hz
    Dimensions
    Product Height
    1 3/8 Inches
    Product Width
    1 35/48 Inches
    Product Depth
    3 3/4 Inches
    Product Weight
    15 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
