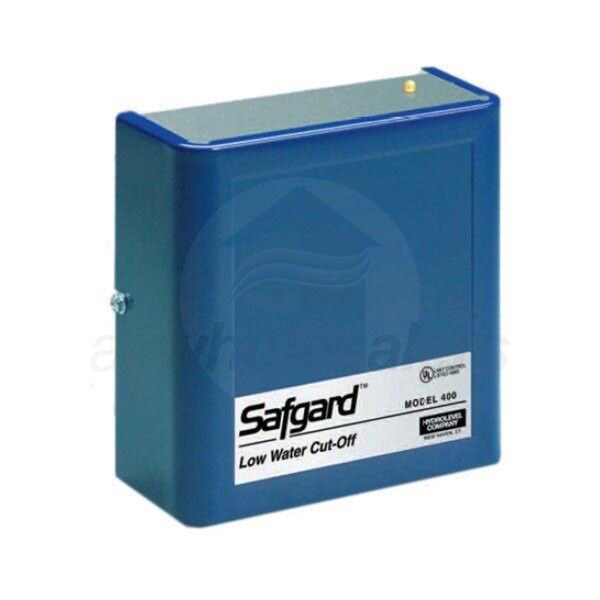

Hydrolevel Safgard 400 Steam Boiler Low Water Cut-Off, 24 VAC, EL1214-R 3/4" NPT Remote Mount Probe

Model: 400R Item Number: 36218
Hydrolevel 400R
PREVIOUS
NEXT
Hydrolevel 400R
Enlarge Image
Our Price: $256.00
synchrony card icon
$43 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
Hydrolevel Safgard 400 Steam Boiler Low Water Cut-Off, 24 VAC, EL1214-R 3/4
Hydrolevel Safgard 400 Steam Boiler Low Water Cut-Off, 24 VAC, EL1214-R 3/4" NPT Remote Mount Probe Model: 400R Item Number: 36218
$256.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    15 Pounds Learn More
    15 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    642277454027
Features
View More

Features

Overview for Hydrolevel 400R

The Safgard 400 Series Low Water Cut-Offs by Hydrolevel are used as the primary low water cut-off on residential and light commercial steam heating boilers. They are also used in low pressure steam process applications. Hydrolevel controls utilize a non-moving, heavy duty, electronic probe to sense liquid levels. The probe can be installed in an equalizing line or directly into a boiler or water tank. When water is in contact with the probe, it completes a circuit between the stainless steel probe tip and the tank or boiler surface in which the probe is installed. When the water level drops below the probe, the circuit opens. Hydrolevel low water cut-offs for steam heating systems use the water signal to allow the burner to operate. If the water level drops below the probe, the circuit opens and the cut- off shuts down the burner. Hydrolevel primary controls for steam boilers utilize both on- time and off-time delays to prevent boiler short-cycling and to facilitate proper automatic boiler water feeding.
  • Low Maintenance
  • No moving parts to wear or hang up, as in float devices.
  • Advanced Solid State Design
  • High quality, economical, boiler protection.
  • Delayed Burner Shutdown
  • 15 second off-time delay in low water condition prevents burner short cycling due to surging and priming.
  • Probe Plus 30
  • Thirty second on- time delay allows solenoid valves and automatic feeders to bring feed water past the probe to a safe operating level.
  • Automatic Reset
  • Automatically restarts the boiler after 30 second on-time delay when water reaches the probe.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    642277454027
    General Information
    Product Category
    Boiler Accessories
    Connection Type
    NPT
    Performance
    Maximum Operating Pressure
    15 PSI
    Electrical Data
    Voltage
    24 Volts
    Power Consumption
    2 Watts
    Frequency
    60 Hz
    Dimensions
    Connection Size
    3/4 Inch
    Product Weight
    15 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
