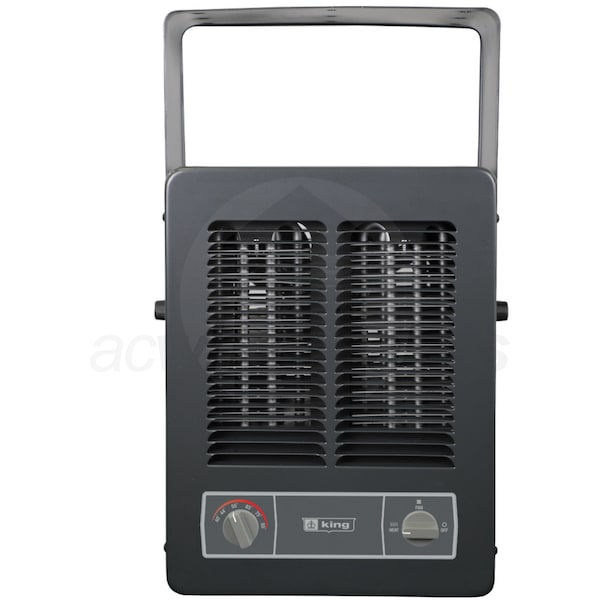

King Electric - Compact Unit Heater with 24V Contol - 6000W - 1-3 Phase - 480V

Model: KBP4806-3MP Item Number: 115084
King Electric KBP4806-3MP
PREVIOUS
NEXT
King Electric KBP4806-3MP
King Electric KBP4806-3MP
King Electric KBP4806-3MP
King Electric KBP4806-3MP
Enlarge Image
King Electric KBP4806-3MP
King Electric KBP4806-3MP
King Electric KBP4806-3MP
King Electric KBP4806-3MP
View All
Our Price: $1,692.73
synchrony card icon
$283 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 2-5 Business Days
King Electric - Compact Unit Heater with 24V Contol - 6000W - 1-3 Phase - 480V
King Electric - Compact Unit Heater with 24V Contol - 6000W - 1-3 Phase - 480V Model: KBP4806-3MP Item Number: 115084
$1,692.73
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    23 Pounds Learn More
    23 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
    UPC
    093319151976
Features
View More

Features

Overview for King Electric KBP4806-3MP

The King Electric KBP unit heater flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space. During the cool down period, the KBP unit heater increases the heat exchange in the room by dissipating heat from the elements. The KBP unit heater comes standard with a 3-position switch and an accurate built-in thermostat, making it a great fit for both residential and commercial applications.
  • King Electric KB PlatinumX Series Features
  • Original Pic-A-Watt Element
  • Fan Delay To Dissipate Heat
  • Selector Switch
  • Product Includes
  • Built-in Thermostat
  • Universal Wall/Ceiling Bracket
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    UPC
    093319151976
    General Information
    Type
    Unit Heaters
    Product Line
    KBP
    Product Category
    Unit Heater
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Blower Motor Type
    Long Life Cast Iron Motor
    Mount Type
    Wall/Ceiling
    Minimum Setpoint Range
    40 F
    Maximum Setpoint Range
    90 F
    Color
    Almond
    Performance
    Heating BTU
    20473
    Heating Capacity
    20473 BTU
    Heating Capacity (kW)
    6 kW
    Maximum Air Flow
    270 CFM
    Heating Power Input
    6000 Watts
    Electrical Data
    Voltage
    480 Volts
    Minimum Circuit Ampacity
    13 Amps
    Recommended Breaker Size
    20 Amps
    Current Draw
    13 Amps
    Dimensions
    Product Height
    13 5/8 Inches
    Product Width
    10 3/8 Inches
    Product Depth
    11 1/4 Inches
    Product Weight
    23 Pounds
    Shipping Weight
    26 Pounds
    Certifications
    Country of Origin
    US
    UL Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Heating Element Warranty
    5 Years
