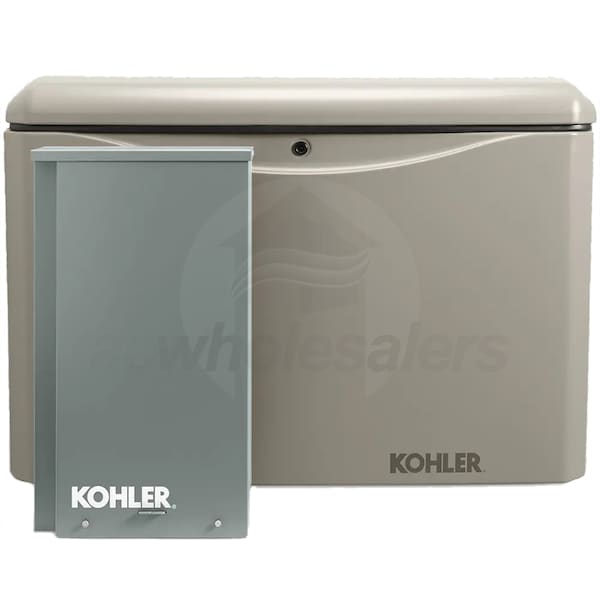

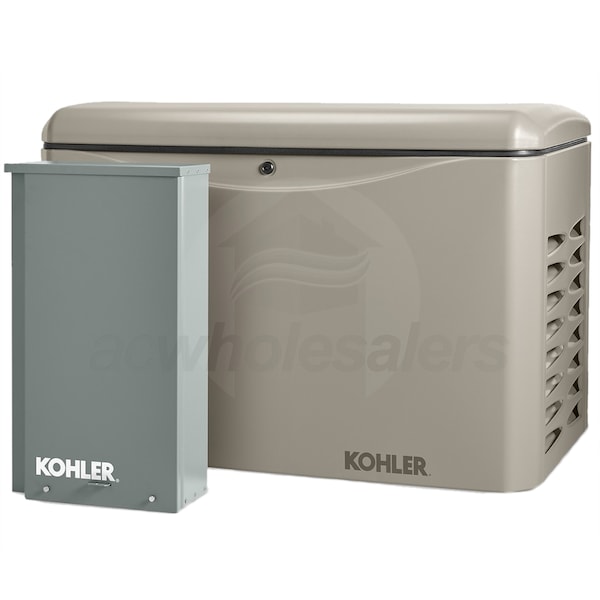

Kohler 20RCAL-200SELS 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding)

Model: 20RCAL-200SELS Item Number: 102509
Kohler 20RCAL-200SELS
PREVIOUS
NEXT
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Enlarge Image
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
Kohler 20RCAL-200SELS
View All
Our Price: $6,000.00
synchrony card icon
$106 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
In-Stock
Ships Thursday, November 14th
Shipping to60601
Kohler 20RCAL-200SELS 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding)
Kohler 20RCAL-200SELS 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding) Model: 20RCAL-200SELS Item Number: 102509
$6,000.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator - Standby
Enclosure Color
Select Attribute
Auto Transfer Switch
Select Attribute
Kit
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Kohler 20RCAL-200SELS

  • 20kW (LPG) / 18kW (NG) Air-Cooled Standby Generator
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
  • NEMA 3R Enclosure mounts between meter & main service panel
  • Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***

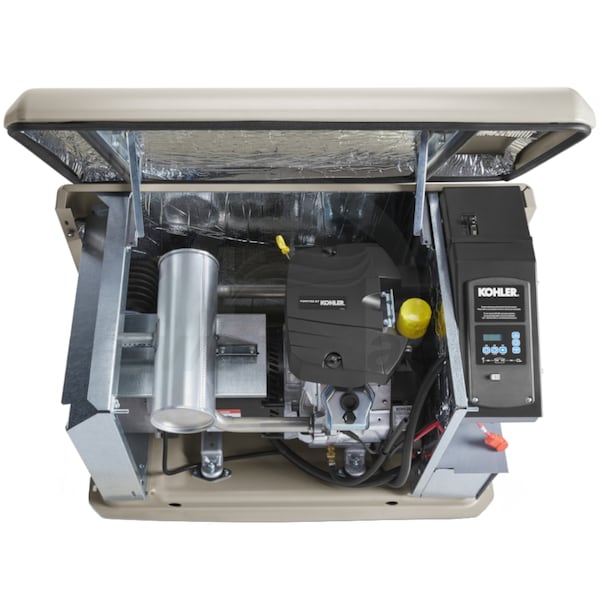

  • Kohler Command PRO® OHV Engine
  • Meets emission regulations for U.S. EPA & California
  • Powerful and reliable engine with hydraulic valve lifters
  • New 100% Corrosion-Proof Aluminum Enclosure
  • Aluminum base can be mounted on gravel or cement pad
  • Meets 181 MPH wind rating; Impact-resistant down to -30° F
  • Powerful Performance w/ PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • Fast Response Time
  • Kohler™ generators restore power in as little as 10 seconds
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 69 dB(A) at 7 m (23 ft)
  • RDC2 (6-Button) Digital Controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • ATS status via LED lights on controller; Built-In 2.5A Battery Charger
  • Real time clock allows you to easily set weekly exercise
  • OnCue® Plus Remote Monitoring System (Included)
  • Built-in Ethernet card, no hardware needed for OnCue
  • Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately)
  • KOHLER® Energy Management App
  • Get real-time alerts on generator status, remote control & maintenance records
  • Easier Installation
  • Streamline design reduces time required to install generator
  • Installation Flexibility*
  • Can be installed within 18" of a building / home
  • *Always check local building codes
  • ***Requires PRM (Sold Separately)
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator - Standby
    Overview
    Product Category
    Generator - Standby
    Weight
    555 Pounds
    CARB Compliant
    Yes
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Commercial Warranty
    5 Years
    Product Style
    Standby Generator
    Product Length
    47 Inches
    Product Width
    26.2 Inches
    Product Height
    32.2 Inches
    UPC
    650531447500
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    20000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    18000 Watts
    LP Power Capacity
    20000 Watts
    NG Fuel Consumption @ 50% Load
    161 ft³/hr
    NG Fuel Consumption @ 100% Load
    281 ft³/hr
    LP Fuel Consumption @ 50% Load
    2.3 gallons/hr
    LP Fuel Consumption @ 100% Load
    3.9 gallons/hr
    Rated Amps
    83 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    69 Run (64 Test) dbA
    Transfer Switch
    Automatic (Included)
    Transfer Switch Amperage
    200-Amps
    Battery
    Not Included (500 CCA)
    Enclosure
    Aluminum
    A/C Ton Rating
    2 x 5-Tons
    Transfer Switch Style
    Service Disconnect
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Service Disconnect
    Yes
    Cooling System
    Air Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Wi-Fi Remote Monitoring
    Sold Separately
    Engine
    Engine Brand
    Kohler
    Starting System
    12v Auto Start
    CC
    999 CC
    Consumer Engine Warranty
    5 Years
    Commercial Engine Warranty
    5 Years
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
