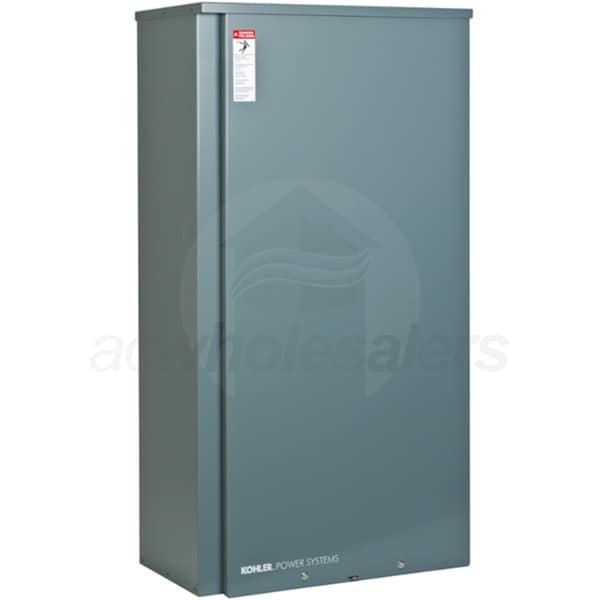

Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch

Model: RXT-JFNC-0200A-QS7 Item Number: 8059
Kohler RXT-JFNC-0200A-QS7
PREVIOUS
NEXT
Kohler RXT-JFNC-0200A-QS7
Kohler RXT-JFNC-0200A-QS7
Enlarge Image
Kohler RXT-JFNC-0200A-QS7
Kohler RXT-JFNC-0200A-QS7
View All
Our Price: $745.00
synchrony card icon
$125 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Thursday, November 14th
Shipping to60601
Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch
Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch Model: RXT-JFNC-0200A-QS7 Item Number: 8059
$745.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator Transfer Switches
Amp Rating
Select Attribute
Service Disconnect
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Kohler RXT-JFNC-0200A-QS7

  • Kohler RXT Series 200-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Combined Interface / Load Management Board
  • Built-In Load Shed - Manage (2) HVAC loads
  • Manage up to (4) Non-Essential loads***
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Rated at 200-Amps @ 240-Volts
  • ***Requires PRM (Sold Separately)
  • 5-Year Limited Warranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator Transfer Switches
    Overview
    Product Category
    Generator Transfer Switches
    Weight
    15 Pounds
    Consumer Warranty
    5 Years
    Product Depth
    7.1 Inches
    Product Width
    13.2 Inches
    Product Height
    24.5 Inches
    UPC
    650531124739
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Amps
    200 Amps
    Enclosure
    NEMA 3R
    Transfer Switch Style
    Standard Installation
    ATS Load Shedding
    Built-In
    ATS Poles
    2 Poles
    ATS Service Disconnect
    No
    Max Utility Input
    200 Amps
    Max Generator Input
    200 Amps
    Maximum Wattage
    48000 Watts
    UL Listed
    Yes
