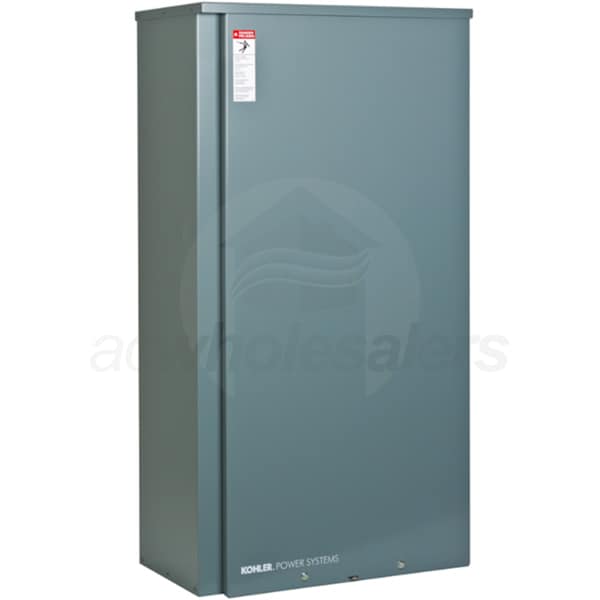

Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (Service Disconnect)

Model: RXT-JFNC-400ASEQS4 Item Number: 8703
Kohler RXT-JFNC-400ASEQS4
PREVIOUS
NEXT
Kohler RXT-JFNC-400ASEQS4
Enlarge Image
Our Price: $3,909.00
synchrony card icon
$69 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Backordered
Estimated Availability May 29, 2025
Shipping to43085
Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (Service Disconnect) Model: RXT-JFNC-400ASEQS4 Item Number: 8703
$3,909.00
Backordered
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator Transfer Switches
Recommended Accessories
View More
Installation Accessories
Kohler 50-Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches
Model: GM92001
Qty
$130.00
Only 5 In-Stock
Add To Cart
Kohler Fuel Regulator Heater Kit (20RES, 20RESL, 20RESA, 20RESAL)
Model: GM79141-KP3-QS
Qty
$309.00
Only 1 In-Stock
Add To Cart
Kohler Programmable Interface Module (PIM)
Model: GM81529-KP1
Qty
$297.00
Ships in 3-4 Weeks
Add To Cart
Features
View More

Features

Overview for Kohler RXT-JFNC-400ASEQS4

  • Kohler RXT Series 400-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Service Entrance Rated
  • Includes disconnect circuit breakers on both sources
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Combined Interface / Load Management Board
  • Built-In Load Shed - Manage (2) HVAC loads
  • Manage up to (4) Non-Essential loads***
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Rated at 400-Amps @ 240-Volts
  • ***Requires PRM (Sold Separately)
  • 5-Year Limited Warranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator Transfer Switches
    Overview
    Product Category
    Generator Transfer Switches
    Weight
    101 Pounds
    Consumer Warranty
    5 Years
    Product Depth
    12.9 Inches
    Product Width
    22 Inches
    Product Height
    42.3 Inches
    UPC
    650531125262
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Amps
    400 Amps
    Enclosure
    NEMA 3R
    Transfer Switch Style
    Service Disconnect
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Poles
    2 Poles
    ATS Service Disconnect
    Yes
    Max Utility Input
    400 Amps
    Max Generator Input
    400 Amps
    Maximum Wattage
    96000 Watts
    UL Listed
    Yes
