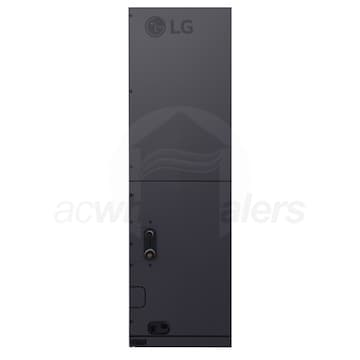

LG Multi-Position Air Handler Unit - Single-Zone - 24k BTU - R-32

Model: KNSLB241A Item Number: 161580
LG KNSLB241A
LG KNSLB241A
Enlarge Image
Originally $2,184.00, you save 5%
Our Price: $2,074.80
synchrony card icon
$346 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 3-4 Weeks
LG Multi-Position Air Handler Unit - Single-Zone - 24k BTU - R-32
LG Multi-Position Air Handler Unit - Single-Zone - 24k BTU - R-32 Model: KNSLB241A Item Number: 161580
$2,074.80
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    116 Pounds Learn More
    116 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split System Components
Recommended Accessories
View More
Installation Accessories
Mini Split 15' Length 5/8" ID PVC Braided Drain Tubing
Model: DRAINTUBING-15
Length (ft)
Qty
$18.00
Ships in 2-5 Business Days
Add To Cart
Mueller - 3/8" x 5/8" Insulated Mini Split Line Set - 50' Length - Factory Flared
Model: MLS385812-50
Length (ft)
Qty
$410.00
Ships in 3-4 Weeks
Add To Cart
LG - Button Sensor
$57.00
Only 5 In-Stock
Model: ZRTBS01
Qty
$57.00
Only 5 In-Stock
Add To Cart
LG Wi-Fi Module w/ SmartThinQ Compatibility
Model: PWFMDD200
Qty
$99.00
In-Stock
Add To Cart
LG Wired Remote Control Extension Cable - 32 Feet
Model: PZCWRC1
Qty
$29.00
In-Stock
Add To Cart
LG Wired Simple Remote Controller
Model: PREMTC00U
Qty
$167.00
In-Stock
Add To Cart
Features
View More

Features

Overview for LG KNSLB241A

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The KNSLB241A is a multi-position air handler unit that can be installed with nearly any pre-existing duct work. LG's air handlers are designed to provide powerful heating and cooling for the larger rooms in your home. Capable of managing high air speeds and volumes effortlessly, the KNSLB241A is an impressive solution to your home's heating and cooling needs.
  • Enhanced Connectivity
  • LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.
  • Quiet Design
  • The KNSLB241A can operate at volumes as low as 29 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the Sleep Mode and Timer functions, you can set this indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.
  • Dehumidify
  • LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Hot-Start
  • When the Hot-Start function is enabled, the KNSLB241A's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Multi-Position
  • The KNSLB241A can be installed in either a vertical or a horizontal orientation, making it a versatile solution for all manners of duct systems.
  • Product Note
    This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    Specifications
    View More

    Specifications

    General Information
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-32
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    UPC
    195174101339
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    23200 BTU
    Heating Capacity
    27000 BTU
    Moisture Removal
    4.23 Pints/Hour
    Maximum Air Flow
    800 CFM
    Minimum Air Flow
    580 CFM
    Minimum Sound Level
    29 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    36 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    49 19/48 Inches
    Product Width
    18 Inches
    Product Depth
    21 19/48 Inches
    Product Weight
    116 Pounds
    Shipping Weight
    129 Pounds
    Certifications
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
