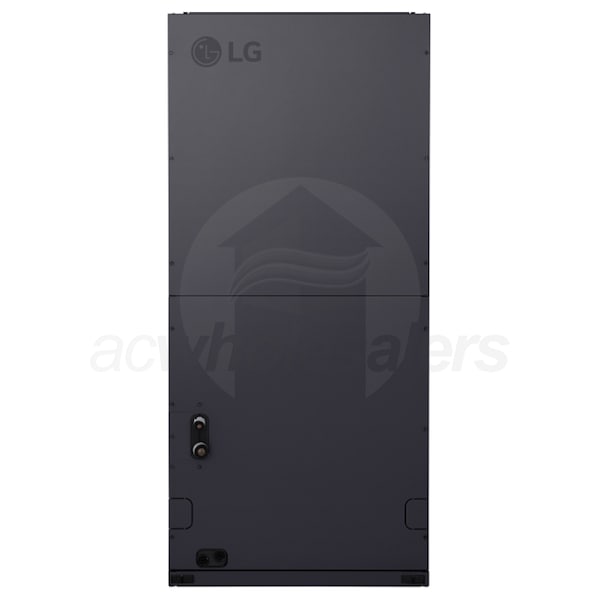

LG Multi-Position Air Handler Mini Split Heat Pump System - Single-Zone - 60k BTU - 17.5 SEER2 - R-32

Model: KSSLB601A Item Number: 163702
LG KSSLB601A
LG KSSLB601A
LG KSSLB601A
LG KSSLB601A
LG KSSLB601A
LG KSSLB601A
Enlarge Image
LG KSSLB601A
LG KSSLB601A
LG KSSLB601A
LG KSSLB601A
LG KSSLB601A
View All
Our Price: $8,163.00
synchrony card icon
$103 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 3-4 Weeks
LG Multi-Position Air Handler Mini Split Heat Pump System - Single-Zone - 60k BTU - 17.5 SEER2 - R-32
LG Multi-Position Air Handler Mini Split Heat Pump System - Single-Zone - 60k BTU - 17.5 SEER2 - R-32 Model: KSSLB601A Item Number: 163702
$8,163.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    366.4 Pounds Learn More
    366.4 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split Heat Pump System
Bundle Includes 4 items
  • product image
    (1) LG Outdoor Condenser - Single-Zone - 60k BTU - R-32 (KUSXB601A)
  • product image
    (1) LG Multi-Position Air Handler Unit - Single-Zone - 60k BTU - R-32 (KNSLB601A)
  • product image
    (1) LG Wired Simple Remote Controller (PREMTC00U)
Recommended Accessories
View More
Required Accessories Add All Required
Bramec Electrical Whip 1/2 Inch x 4 Ft.
Model: 18831
Qty
$20.00
In-Stock
Add To Cart
Diversitech ULTRALITE Condenser Mounting Pad 24x48x3
Model: UC2448-3
Qty
$77.00
In-Stock
Add To Cart
Mini Split 15' Length 5/8" ID PVC Braided Drain Tubing
Model: DRAINTUBING-15
Length (ft)
Qty
$18.00
In-Stock
Add To Cart
Mueller - 3/8" x 3/4" Insulated Mini Split Line Set - 25' Length - Factory Flared
Model: MLS383412-25
Length (ft)
Qty
$365.00
In-Stock
Add To Cart
Bramec Non-Fused Metal Disconnect 60A
Model: 20650
Qty
$19.00
In-Stock
Add To Cart
ICM Controls HVAC Surge Protector - 120-240 V
Model: ICM517A
Qty
$70.00
In-Stock
Add To Cart
RectorSeal NFP - Telescopic Wall Sleeve - 2-1/2" ID - 2-7/8" OD
Model: NFP-75
Qty
$13.94
In-Stock
Add To Cart
RectorSeal WBB300 Outdoor Condenser Wall Bracket, supports up to 300 lbs.
Model: WBB300
Qty
$105.62
In-Stock
Add To Cart
Installation Accessories
Fortress Line Set Cover 3-1/2" Straight Ducting White
Model: LD92W
Size
Color
Qty
$46.70
In-Stock
Add To Cart
Fortress Line Set Cover Wall Duct Kit - 12 Foot - White 3-1/2"
Model: LDK92W
Size
Color
Qty
$137.43
In-Stock
Add To Cart
Fortress Twistlock Line Set Duct Clip - 12 Pack
Model: 84099
Qty
$5.30
In-Stock
Add To Cart
LG - Button Sensor
$57.00
Ships in 2-5 Business Days
Model: ZRTBS01
Qty
$57.00
Ships in 2-5 Business Days
Add To Cart
LG - Simple Dry Contact
$104.00
Backordered
Model: PDRYCB100
Qty
$104.00
Backordered
Add To Cart
LG Air Conditioner Base Pan Heater
Model: PQSH1200
Qty
$228.00
In-Stock
Add To Cart
LG BVC3 MultiSite™ Remote Controller with Humidity and Motion
Model: PREMTBVC3
Qty
$269.00
Only 2 In-Stock
Add To Cart
LG BVC4 MultiSite™ Remote Controller with Humidity, Motion and Zigbee
Model: PREMTBVC4
Qty
$320.00
In-Stock
Add To Cart
LG MultiSITE™ Remote Controller with Humidity
$249.00
Ships in 7-14 Business Days
Model: PREMTBVC2
Qty
$249.00
Ships in 7-14 Business Days
Add To Cart
LG Wi-Fi Module w/ SmartThinQ Compatibility
Model: PWFMDD200
Qty
$99.00
In-Stock
Add To Cart
LG Wired Remote Control Extension Cable - 32 Feet
Model: PZCWRC1
Qty
$29.00
In-Stock
Add To Cart
LG Wired Simple Remote Controller
$167.00
Ships in 4-7 Business Days
Model: PREMTC00U
Qty
$167.00
Ships in 4-7 Business Days
Add To Cart
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG KSSLB601A

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The KSSLB601A is a multi-position air handling system that can be installed with nearly any pre-existing duct work. LG's air handlers are designed to provide powerful heating and cooling for the larger rooms in your home. Capable of managing high air speeds and volumes effortlessly, the KSSLB601A is an impressive solution to your home's heating and cooling needs.
  • Inverter Technology
  • LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Quiet Design
  • The KNSLB601A indoor unit features a cross flow fan that restricts the pressure of air flow and lowers sound levels. Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.
  • Dehumidify
  • LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Multi-Position
  • The KNSLB601A can be installed in either a vertical or a horizontal orientation, making it a versatile solution for all manners of duct systems.
  • Sleep Mode
  • With the Sleep Mode and Timer functions, you can set the indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the KUSXB601A's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Enhanced Connectivity
  • LG's new R-32 mini split systems use a 5-conductor cable instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-32
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    60
    Outdoor Unit Size
    60000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 3/4"
    Performance
    Cooling BTU
    60000
    Cooling Capacity
    52500 BTU
    Heating Capacity
    56500 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    47 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    5 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    17.5
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    12.0
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.4
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    32 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Weight
    366.4 Pounds
    Shipping Weight
    401.4 Pounds
    Certifications
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    General Information
    Type
    Outdoor Condenser
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-32
    Installation Location
    Outdoor
    Base Pan Heater Included
    No
    Performance
    Cooling BTU
    60000
    Cooling Capacity
    52500 BTU
    Heating Capacity
    56500 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    56 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    32 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    246 Feet
    Gas Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    54 17/48 Inches
    Product Width
    37 19/48 Inches
    Product Depth
    13 Inches
    Product Weight
    213.4 Pounds
    Shipping Weight
    232.4 Pounds
    Certifications
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-32
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    60
    Installation Location
    Indoor
    Performance
    Cooling BTU
    60000
    Cooling Capacity
    52500 BTU
    Heating Capacity
    56500 BTU
    Moisture Removal
    9.10 Pints/Hour
    Maximum Air Flow
    1750 CFM
    Minimum Air Flow
    1400 CFM
    Minimum Sound Level
    39 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    47 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    55 7/8 Inches
    Product Width
    25 Inches
    Product Depth
    21 3/8 Inches
    Product Weight
    153 Pounds
    Shipping Weight
    169 Pounds
    Certifications
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Mini Split Controller
    Product Category
    Mini Split Accessories
    Maximum Number of Zones
    16
    Power Source
    Hard-Wired
    Dimensions
    Product Height
    4 3/4 Inches
    Product Width
    5/8 Inch
    Product Length
    2 3/4 Inches
    Product Weight
    0.18 Pounds
    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Wire Kit
    Product Category
    Mini Split Accessories
    Dimensions
    Product Length
    33 Feet
    Product Weight
    0.25 Pounds
    Certifications
    Country of Origin
    Korea
    Overview
    Product Category
    Mini Split Accessories
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Manuals
    View More

    ×
    LG Multi-Position Air Handler Mini Split Heat Pump System - Single-Zone - 60k BTU - 17.5 SEER2 - R-32
    LG KSSLB601A
    Loading
    LG KSSLB601A
    LG KSSLB601A
    LG KSSLB601A
    LG KSSLB601A
    LG KSSLB601A
    ×
    Customer Review Images
    Loading
