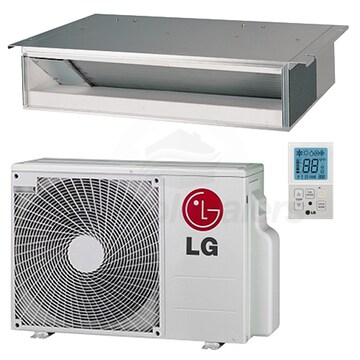

LG 9,000 BTU 18.5 SEER Horizontal Ducted Heat Pump System

Model: LD097HV4 Item Number: 80467
LG LD097HV4
PREVIOUS
NEXT
LG LD097HV4
LG LD097HV4
LG LD097HV4
LG LD097HV4
LG LD097HV4
LG LD097HV4
Enlarge Image
LG LD097HV4
LG LD097HV4
LG LD097HV4
Watch Video
LG LD097HV4
Watch Video
LG LD097HV4
Watch Video
LG LD097HV4
LG LD097HV4
LG LD097HV4
LG LD097HV4
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    121 Pounds Learn More
    121 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ducted
    Product Sub-line
    Low-Static Ducted
Bundle Includes 2 items
  • product image
    (1) LG 9,000 BTU Ductless Heat Pump Air Conditioner Condenser (LUU097HV)
  • product image
    (1) LG 9,000 BTU Low Static Ducted Heat Pump Air Handler (LDN097HV4)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LD097HV4

Overview for LG LD097HV4All LG's single zone and multi-zone system solutions offer stylish and energy-efficient products to the residential and light commercial consumer. One-to-one systems that include an outdoor unit and a ducted indoor unit, this LG 9,000 BTU 18.5 SEER Horizontal Ducted Heat Pump System is a single zone system with high static ducted indoor units for ceiling-concealed installation, and contains wired wall controller for easy control.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 2 items
    • product kit image

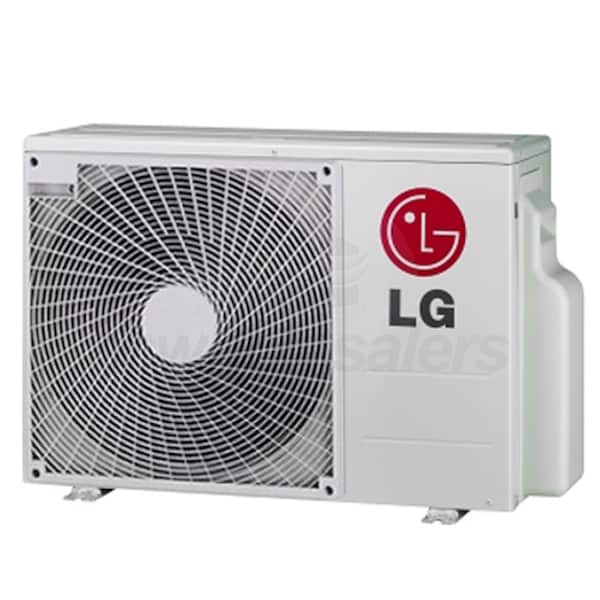

      LG 9,000 BTU Ductless Heat Pump Air Conditioner Condenser
      Model: LUU097HV
      Item Number: 71412
      Quantity: 1
    • product kit image

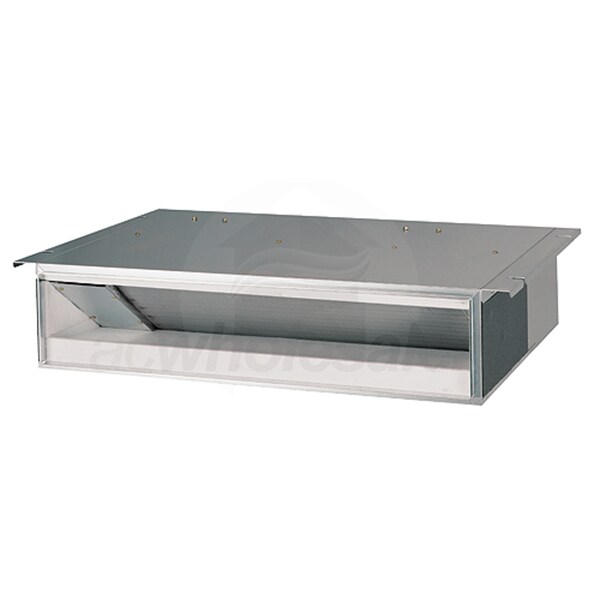

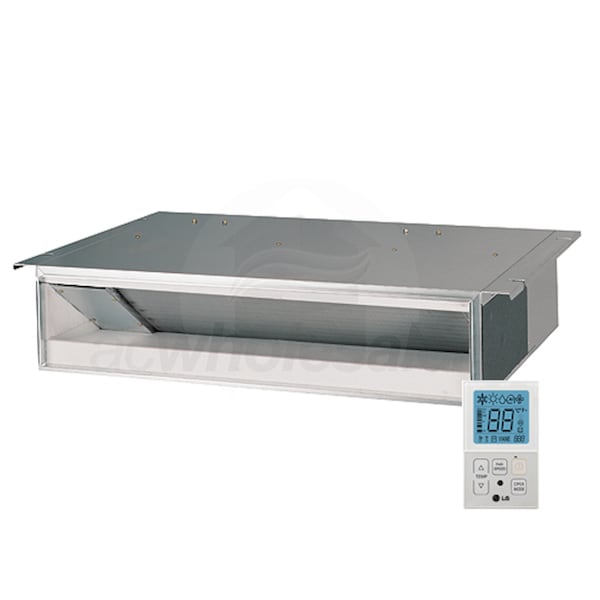

      LG 9,000 BTU Low Static Ducted Heat Pump Air Handler
      Model: LDN097HV4
      Item Number: 70245
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Ducted
    Product Sub-line
    Low-Static Ducted
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Line Set Size
    1/4" x 3/8"
    Performance
    Cooling Capacity
    9000 BTU
    Heating Capacity
    9000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    18.5
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.7
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    10.3
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    0 F
    Dimensions
    Product Weight
    121 Pounds
    Shipping Weight
    135 Pounds
    Certifications
    AHRI Certified
    Yes
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    9000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    51 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    0 F
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Maximum Line Length
    66 Feet
    Gas Connection Size
    1/3 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    21 23/48 Inches
    Product Width
    33 47/48 Inches
    Product Depth
    13 11/12 Inches
    Product Weight
    82 Pounds
    Shipping Weight
    89 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Concealed Duct
    Product Line
    Multi F
    Product Sub-line
    Low-Static Ducted
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    318 CFM
    Minimum Air Flow
    194 CFM
    Minimum Sound Level
    23 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    30 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 23/48 Inches
    Product Width
    30 23/48 Inches
    Product Depth
    27 9/16 Inches
    Product Weight
    39 Pounds
    Shipping Weight
    46 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
