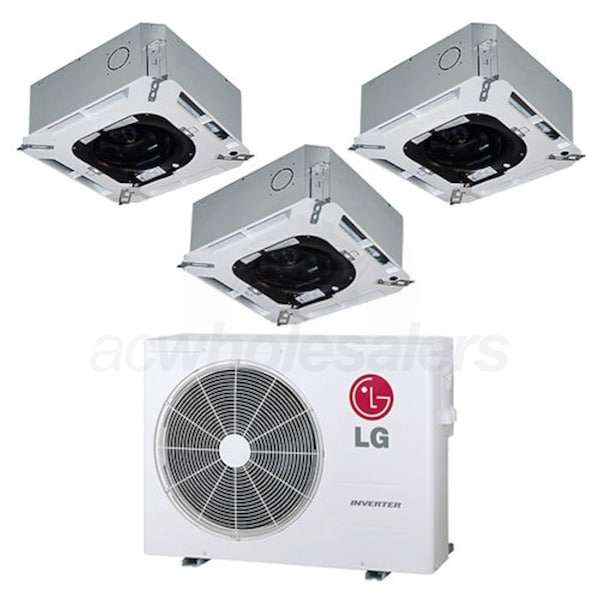

LG 21,000 BTU 21.7 SEER Recessed Tri Zone Heat Pump System 7+7+7
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
100 Pounds 100 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Type
Ceiling Cassette
Operating Mode
Heating and Cooling
View More
Bundle Includes 4 items
(1) LG 24,000 BTU Ductless Multi Zone Heat Pump Air Conditioner Condenser (LMU24CHV)
(3) LG 7,000 BTU Ceiling Cassette For Multi-Zone w/o Grille (LMCN078HV-NG)
View Full Bundle
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features & Bundle Details
Features & Bundle Details
Overview for LG LMU24CHV 3-LMCN078HV-NG
Overview for LG LMU24CHV 3-LMCN077HVLG Ceiling Cassette Air Conditioning Systems offer convenient solutions that are cost-effective. These innovative systems are split into two efficient units. The Ceiling-Cassette interior unit Features four-way controlled louvers and choice of fan speeds to provide the necessary air distribution. The larger, Flex Multi-Split systems operate two, three or four interior units that are mounted in separate rooms. Each indoor unit comes with its own remote control, allowing the customer to set the temperature individually in different rooms. These units are connected to a single exterior unit. The interior units are available in a variety of styles, including Art Cool, Standard, Ceiling Cassette, and Ceiling Concealed Duct models. Dual-,Tri- and Quad-Zone are Heat Pump systems.
Bundle Includes 4 items

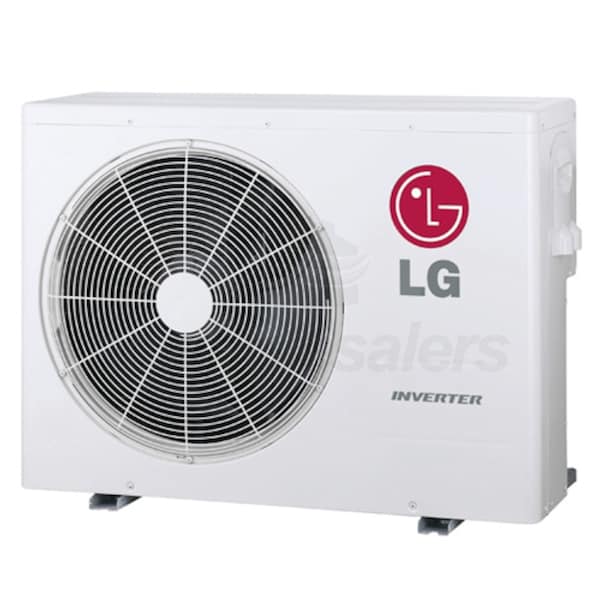

LG 24,000 BTU Ductless Multi Zone Heat Pump Air Conditioner Condenser
Model: LMU24CHV
Item Number: 50832
Quantity: 1
LG 7,000 BTU Ceiling Cassette For Multi-Zone w/o Grille
Model: LMCN078HV-NG
Item Number: 95029
Quantity: 3
Specifications
Specifications
Included In This Bundle
Bundle Overview
Bundle Overview
LMU24CHV Specifications
LMCN078HV-NG Specifications
General Information
Type
Ceiling Cassette
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 7 + 7
Outdoor Unit Size
24000 BTU
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
21.7
Cooling Power Input
1.48 Watts
Heating Power Input
1.8 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
100 Pounds
Shipping Weight
108 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
General Information
Type
Outdoor Condenser
Product Line
Multi F
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
52 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
246.1 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Product Height
25 19/24 Inches
Product Width
34 1/4 Inches
Product Depth
12 29/48 Inches
Product Weight
100 Pounds
Shipping Weight
108 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Grille
Not Included
Required Grille Model
PT-UQC
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
265 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
24 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
31 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
26 Pounds
Shipping Weight
31 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
