LG 30,000 BTU 22 SEER Ductless Dual Zone Heat Pump System 15+15

Model: LMU30CHV LMN158HVT LMN158HVT Item Number: 87405
LG LMU30CHV LMN158HVT LMN158HVT
PREVIOUS
NEXT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
Enlarge Image
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
Watch Video
LG LMU30CHV LMN158HVT LMN158HVT
Watch Video
LG LMU30CHV LMN158HVT LMN158HVT
Watch Video
LG LMU30CHV LMN158HVT LMN158HVT
Watch Video
LG LMU30CHV LMN158HVT LMN158HVT
Watch Video
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
LG LMU30CHV LMN158HVT LMN158HVT
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    137 Pounds Learn More
    137 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Operating Mode
    Heating and Cooling
Bundle Includes 3 items
  • product image
    (1) LG 30,000 BTU Ductless Multi Zone Heat Pump Air Conditioner Condenser (LMU30CHV)
  • product image
    (2) LG 15,000 BTU Flex Multi Wall Mounted Heat Pump Air Handler (LMN158HVT)
Recommended Accessories
View More
Installation Accessories
Mueller - 1/4" x 3/8" Insulated Mini Split Line Set - 25' Length - Factory Flared
Model: MLS143812-25
Length (ft)
Qty
$200.00
In-Stock
Add To Cart
Fortress Line Set Cover Wall Duct Kit - 12 Foot - White 3-1/2"
Model: LDK92W
Color
Qty
$137.43
In-Stock
Add To Cart
Mini Split 15' Length 5/8" ID PVC Braided Drain Tubing
Model: DRAINTUBING-15
Length (ft)
Qty
$18.00
In-Stock
Add To Cart
Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 25' Length
Model: MSCABLE144-25
Length (ft)
Qty
$45.00
In-Stock
Add To Cart
Aspen Mini Aqua - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Model: ASP-MA-UNI
Qty
$325.46
In-Stock
Add To Cart
Diversitech E Lite Equipment Pad 18 x 38 x 3
Model: EL1838-3
Qty
$38.50
In-Stock
Add To Cart
Diversitech Electrical Whip 1/2 Inch X 4' Non-Metallic
Model: 6-12-4NM
Qty
$12.00
In-Stock
Add To Cart
Diversitech Electrical Whip 1/2 Inch X 6' Non-Metallic
Model: 6-12-6NM
Qty
$23.00
In-Stock
Add To Cart
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LMU30CHV LMN158HVT LMN158HVT

Overview for LG LMU30CHV LMN158HVT LMN158HVTThe LG LMU30CHV LMN158HVT LMN158HVT Ductless Dual Zone Heat Pump System is a convenient solution that is cost-effective, quiet, and attractive. The LG 2-LMN158HVT wall-mounted heat pump air handlers are slim, lightweight, and aesthetically pleasing units. Also each LG indoor heat pump unit comes with its own remote control, allowing you to set the temperature individually in different rooms. The LG 2-LMN158HVT heat pump air handler units are connected to the LG LMU30CHV heat pump exterior unit. The LG interior units are available in a variety of styles, including Art Cool, Standard, Ceiling Cassette, and Ceiling Concealed Duct models.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 3 items
    • product kit image

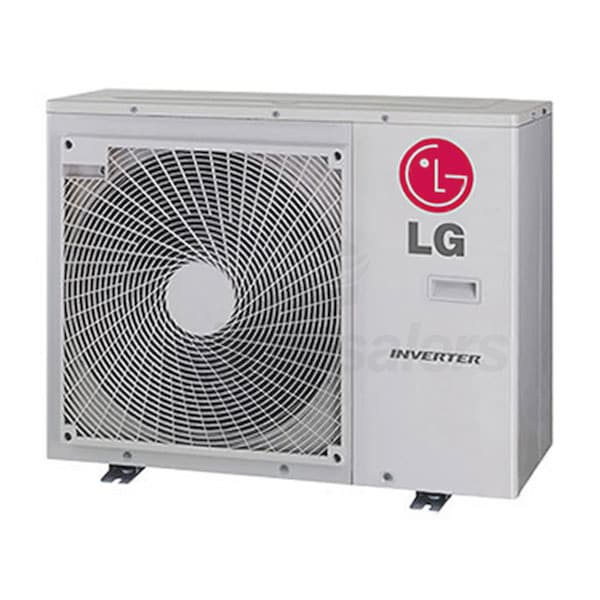

      LG 30,000 BTU Ductless Multi Zone Heat Pump Air Conditioner Condenser
      Model: LMU30CHV
      Item Number: 55817
      Quantity: 1
    • product kit image
      LG 15,000 BTU Flex Multi Wall Mounted Heat Pump Air Handler
      Model: LMN158HVT
      Item Number: 61727
      Quantity: 2
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15 + 15
    Performance
    Cooling Power Input
    2.31 Watts
    Heating Power Input
    2.49 Watts
    Dimensions
    Product Weight
    137 Pounds
    Shipping Weight
    148 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    General Information
    Type
    Outdoor Condenser
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    4
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    30000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    25 Amps
    Dimensions
    Maximum Line Length
    246.1 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    3/8 Inch
    Product Height
    32 41/48 Inches
    Product Width
    37 5/12 Inches
    Product Depth
    15 1/2 Inches
    Product Weight
    137 Pounds
    Shipping Weight
    148 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Wall Mounted
    Product Line
    Multi F
    Product Sub-line
    Standard
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15
    Installation Location
    Indoor
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Maximum Air Flow
    371 CFM
    Minimum Air Flow
    247 CFM
    Minimum Sound Level
    34 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    43 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Drain Outlet Diameter
    5/8 Inch
    Product Height
    11 1/4 Inches
    Product Width
    34 7/8 Inches
    Product Depth
    8 1/4 Inches
    Product Weight
    20 Pounds
    Shipping Weight
    26 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
