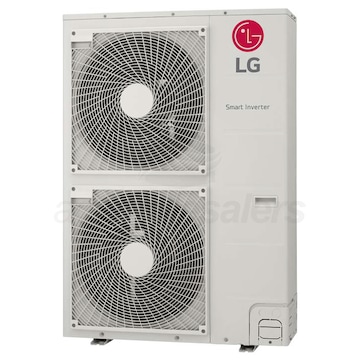

LG - 60k BTU - Outdoor Condenser - For 2-8 Zones

Model: LMU601HV Item Number: 116433
LG LMU601HV
PREVIOUS
NEXT
LG LMU601HV
Enlarge Image
Originally $4,299.00, you save 5%
Our Price: $4,084.05
synchrony card icon
$52 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Only 4 In-Stock
Ships Tuesday, February 11th
Shipping to43085
LG - 60k BTU - Outdoor Condenser - For 2-8 Zones
LG - 60k BTU - Outdoor Condenser - For 2-8 Zones Model: LMU601HV Item Number: 116433
$4,084.05
Only 4 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    214 Pounds Learn More
    214 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
    UPC
    195174022146
Recommended Accessories
View More
Installation Accessories
Diversitech ULTRALITE Condenser Mounting Pad 24x48x3
Model: UC2448-3
Qty
$77.00
In-Stock
Add To Cart
Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 25' Length
Model: MSCABLE144-25
Qty
$45.00
In-Stock
Add To Cart
Mueller - 3/8" x 3/4" Insulated Mini Split Line Set - 25' Length - Factory Flared
Model: MLS383412-25
Length (ft)
Qty
$365.00
In-Stock
Add To Cart
LG Multi F - Branch Box - 4 Ports
Model: PMBD3640
Number of Ports
Qty
$394.00
In-Stock
Add To Cart
Bramec 60A Non-Fused Metal Disconnect with 4" Electrical Whip 8GA Kit
Model: NFDWHIP-8
Qty
$36.00
In-Stock
Add To Cart
LG Air Conditioner Base Pan Heater
Model: PQSH1200
Qty
$228.00
In-Stock
Add To Cart
LG Air Conditioner Wind Baffle
Model: ZLABGP04A
Qty
$126.00
Backordered
Add To Cart
LG Y Branch Adaptor both gas and liquid For 2 Indoor Units
Model: PMBL5620
Qty
$146.00
In-Stock
Add To Cart
RectorSeal Fix-It-Foot RMB16L Low Profile Rubber Riser, supports up to 220 lbs., 16" L
Model: RMB16L
Qty
$58.85
Only 3 In-Stock
Add To Cart
Features
View More

Features

Overview for LG LMU601HV

This product requires two or more compatible indoor units for functionality.LG's devotion to providing efficient ductless solutions can be seen in their Multi F MAX outdoor condenser. The LMU601HV is a multi-zone mini split outdoor condenser capable of supplying ductless heating and cooling for up to eight rooms in your home. With inverter technology and nearly two dozen compatible indoor units in a variety of styles, the LMU601HV is a great choice for nearly any applications.
  • Inverter Technology
  • LG's multi-zone outdoor condensers are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU600HV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Low Ambient Operations
  • Cold temperatures can't slow the Multi F line of outdoor condensers down. This outdoor unit supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit.
  • Quiet Design
  • Thanks to a brushless direct current motor and a twin rotary compressor, the LMU600HV is significantly quieter than traditional air conditioning systems. These components reduce mechanical sound, electrical sound, and vibrations within the unit.
  • Product Note
    This product requires at least two compatible LG mini split indoor units and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Branch Box - An LG branch box is required to connect this condenser to LG mini split indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Product Compatible With
    • LG LMN077HVT Wall Mounted Mini Split Indoor Unit
    • LG LSN090HSV4 Wall Mounted Mini Split Indoor Unit
    • LG LSN120HSV4 Wall Mounted Mini Split Indoor Unit
    • LG LMN157HVT Wall Mounted Mini Split Indoor Unit
    • LG LSN180HSV4 Wall Mounted Mini Split Indoor Unit
    • LG LMN247HVT Wall Mounted Mini Split Indoor Unit
    • LG LMAN097HVP Wall Mounted Designer Mini Split Indoor Unit
    • LG LMAN127HVP Wall Mounted Designer Mini Split Indoor Unit
    • LG LAN090HSV4 Wall Mounted Designer Mini Split Indoor Unit
    • LG LAN120HSV4 Wall Mounted Designer Mini Split Indoor Unit
    • LG LAN180HSV4 Wall Mounted Designer Mini Split Indoor Unit
    • LG LMCN077HV Ceiling Cassette Mini Split Indoor Unit
    • LG LMCN097HV Ceiling Cassette Mini Split Indoor Unit
    • LG LMCN125HV Ceiling Cassette Mini Split Indoor Unit
    • LG LMCN185HV Ceiling Cassette Mini Split Indoor Unit
    • LG LMDN096HV Concealed Duct Mini Split Indoor Unit
    • LG LMDN126HV Concealed Duct Mini Split Indoor Unit
    • LG LMDN186HV Concealed Duct Mini Split Indoor Unit
    • LG LMHN240HV Concealed Duct Mini Split Indoor Unit
    • LG LMVN240HV Vertical Air Handler Mini Split Indoor Unit
    • LG LMVN360HV Vertical Air Handler Mini Split Indoor Unit
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    UPC
    195174022146
    General Information
    Type
    Outdoor Condenser
    Product Line
    Multi F
    Product Sub-line
    MAX
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    8
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Branch Box Required Learn More
    Branch Box Required
    By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
    Yes
    Performance
    Cooling BTU
    60000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    58 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    45 Amps
    Dimensions
    Maximum Line Length
    475.7 Feet
    Gas Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    54 17/48 Inches
    Product Width
    37 5/12 Inches
    Product Depth
    13 Inches
    Product Weight
    214 Pounds
    Shipping Weight
    236 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
    Reviews
    4.0 out of 5 stars4.0 out of 5 stars
    (1)
    View More

    Reviews

    Overall Rating from 1 Reviews
    icons-ratings-full
    4.00 / 5
    5 Stars
    (0)
    4 Stars
    (1)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Star
    (0)
    100%of Customers Recommend This Product
    Features
    4.0/5
    Quality
    4.0/5
    Performance
    4.0/5
    Value
    4.0/5
    Sort By:
    4
    Rated Out Of 5
    4.0 out of 5 stars4.0 out of 5 stars
    LG 60k Btu
    By Michael R.
    Check Mark
    Verified Buyers
    Check Mark
    Michael R. Recommends This
    Purchased 04/09/2024
    Review Posted 05/02/2024
    System is currently being installed, so operations are to be expected from the LG brand. I’ve plans for an identical system inside the same building, after this 1st is operational. ACWholesalers is an easy and fluid vendor to work with. LG design software NEEDS to be ported onto Apple platforms.
