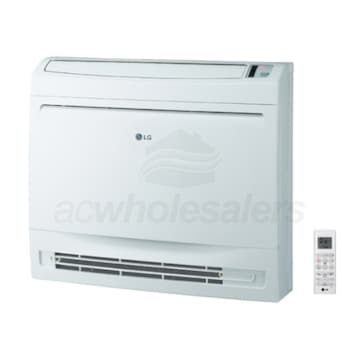

LG 12,000 BTU Low Wall Console Unit

Model: LQN120HV4 Item Number: 106102
LG LQN120HV4
PREVIOUS
NEXT
LG LQN120HV4
Enlarge Image
Originally $899.00, you save 5%
Our Price: $854.05
synchrony card icon
$143 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Tuesday, December 24th
Shipping to60601
LG 12,000 BTU Low Wall Console Unit
LG 12,000 BTU Low Wall Console Unit Model: LQN120HV4 Item Number: 106102
$854.05
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    36 Pounds Learn More
    36 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
    UPC
    048231391870
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for LG LQN120HV4

Low Wall Console units are designed for high efficiency, and easy installation. Ideal for variety of residential and light commercial applications, the new Low Wall Console units’ capacities range from 9,000 to 12,000 Btu/h for Single Zone and from 9,000 to 15,000 Btu/h for Multi-zone. The Low Wall Console unit is ideal for residential and light commercial applications where a more traditional type of unit is not possible due to room design or space constraints. Ideal space applications for these units include rooms with gabled ceilings or sunrooms. Designed to be installed low on the wall or on the floor, the console unit increases design flexibility while offering high efficiency and easy installation.
  • Installation Flexibility
  • Able to be mounted to the floor or wall, LG's low wall console is a perfect solution to cooling and heating rooms with limited space.
  • Quiet Design
  • The low wall console can operate at volumes as low as 27 dB. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow as well as a brushless motor, which ensures minimal electrical and mechanical noise.
  • Jet Temperature Control
  • Quickly get your zone comfortable with the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Improved Air Quality
  • LG's low wall consoles feature washable anti-bacterial filters to keep your air clean and free of microscopic irritants.
  • Hot Start
  • When the hot start function is enabled, the console's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Product Note
    LG Low Wall Consoles can be mounted to the floor or to the wall with a maximum of 9-27/32" from the floor.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    UPC
    048231391870
    General Information
    Type
    Floor Mounted
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Motor Type
    Digital Controlled
    Installation Location
    Indoor
    Electric Heat
    Yes
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    13000 BTU
    Heating Capacity
    15000 BTU
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    244 CFM
    Minimum Sound Level
    27 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    8 13/48 Inches
    Product Weight
    36 Pounds
    Shipping Weight
    42 Pounds
    Liquid Valve Connection Size
    1/4 Inch
    Suction Valve Connection Size
    3/8 Inch
    Certifications
    UL Listed
    Yes
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
