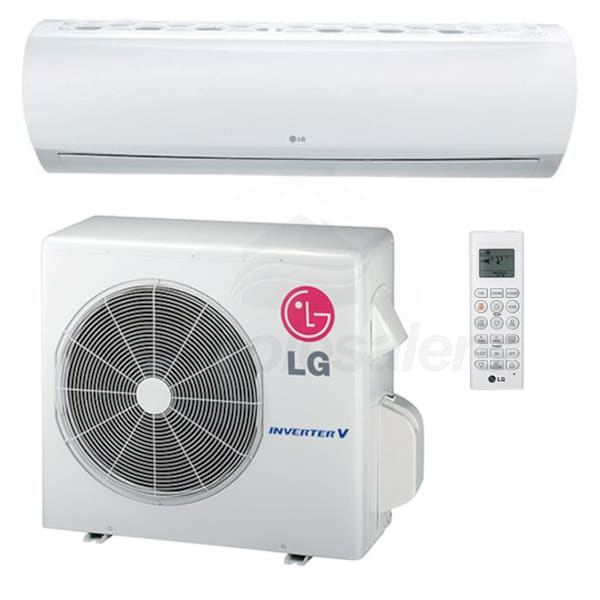

LG - 24k Cooling + Heating - Wall Mounted - Air Conditioning System - 21.5 SEER

Model: LS243HLV Item Number: 72545
LG LS243HLV
PREVIOUS
NEXT
LG LS243HLV
LG LS243HLV
LG LS243HLV
LG LS243HLV
LG LS243HLV
LG LS243HLV
LG LS243HLV
Enlarge Image
LG LS243HLV
LG LS243HLV
LG LS243HLV
Watch Video
LG LS243HLV
Watch Video
LG LS243HLV
Watch Video
LG LS243HLV
Watch Video
LG LS243HLV
Watch Video
LG LS243HLV
LG LS243HLV
LG LS243HLV
LG LS243HLV
LG LS243HLV
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
View LG - 24k Cooling + Heating - Wall Mounted - Air Conditioning System - 22.0 SEER2
Model:
LS243HLV3
$2,492.00
$2,242.80
Factory-Direct
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    165 Pounds Learn More
    165 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Low Wall Console
    Operating Mode
    Heating and Cooling
Bundle Includes 2 items
  • product image
    (1) LG - 24k BTU - Outdoor Condenser - For Single-Zone Only (LSU243HLV)
  • product image
    (1) LG 24,000 BTU Wall Mounted Heat Pump Air Handler (LSN243HLV)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LS243HLV

LG LS243HLV Single Zone Extended Pipe systems include advanced technology for cost-effective, energy efficient operation and improved piping capability to allow longer pipe length and higher elevation differences. These systems are available in heat pump configurations with 24,000, 30,000, and 36,000 Btu/h capacities.LG System will improve your quality of life in an affordable, eco-friendly way. Over the years, LG strives to meet the demand for high quality air conditioning solutions with greater energy efficiency, helping the environment while also reducing electricity costs for consumers.
  • Extended Pipe Capable
  • These LG single zone systems feature advance technology for efficient operation and improved piping capability. This allows the systems to operate with a longer pipe length than standard single zone systems.
  • Wi-Fi Enabled
  • The LG indoor units come equipped with a built-in Wi-Fi adapter. This allows you to control your unit using LG's Smart AC App on almost any mobile device.
  • Inverter Technology
  • LG's ductless heat pump systems are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser carefully regulate the refrigerant flow and reduce energy consumption.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LS243HLV's heat exchanger, LG employs a Gold Fin coating that protects against corrosion and improves durability.
  • Low Ambient Operations
  • This outdoor unit supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.
  • Quiet Design
  • The LSN243HLV indoor unit features a cross flow fan that restricts the pressure of air flow and lowers sound levels. Both units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.
  • Air Flow Options
  • This unit gives you three air flow options: automatic, swing mod, and Chaos Wind. In swing mode, the unit will rotate through all four air flow directions and with the Chaos Wind feature, it cycles both air flow direction and fan speed.
  • Jet Temperature Control
  • Getting your zones comfortable quickly is no problem with this system thanks to the Jet Heat and Jet Cool modes. With one button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Dehumidify
  • LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LSN243HLV indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter cleans out dust and bacteria. Additionally, a 3M Micro Protection Filter captures microscopic irritants for pristine air quality.
  • Product Note
    This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system.LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 2 items
    • product kit image

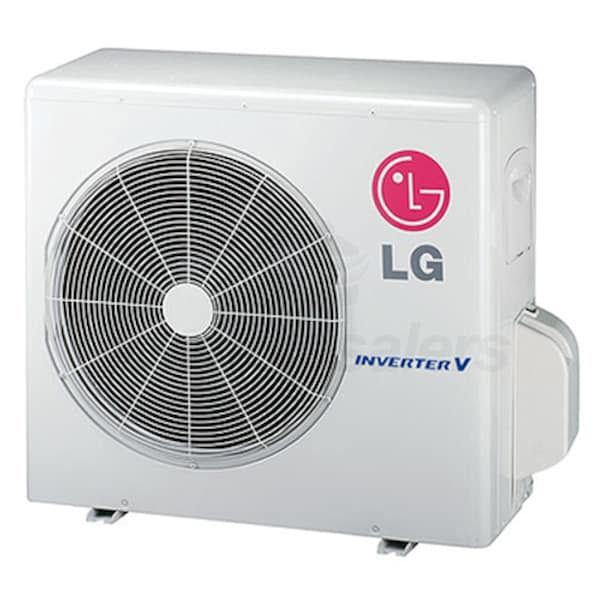

      LG - 24k BTU - Outdoor Condenser - For Single-Zone Only
      Model: LSU243HLV
      Item Number: 72237
      Quantity: 1
    • product kit image

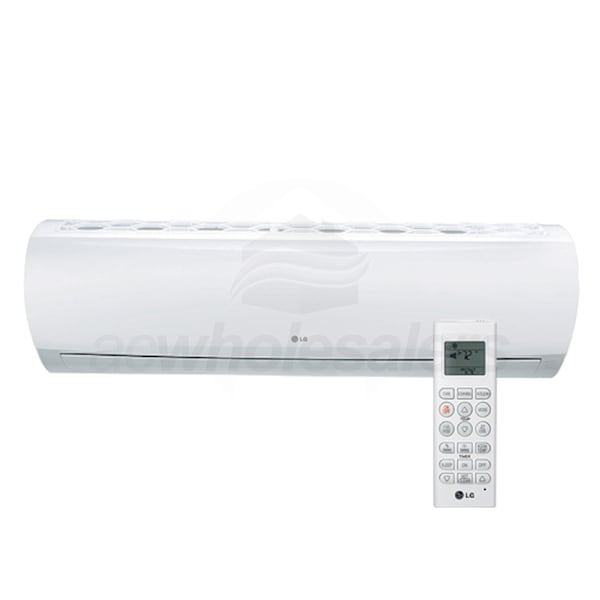

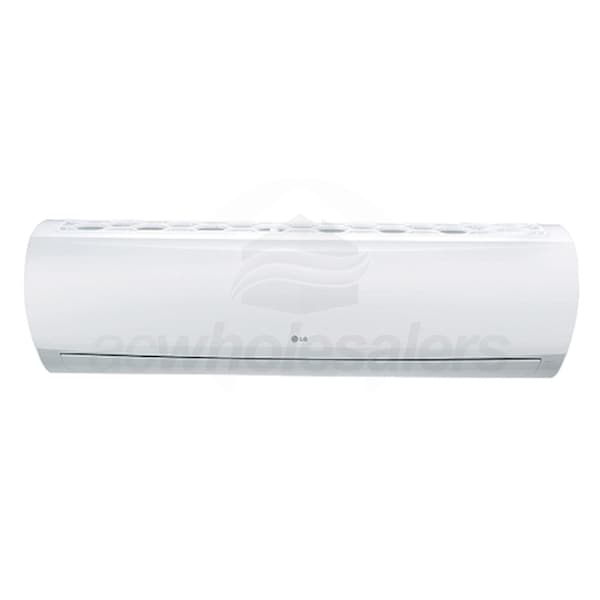

      LG 24,000 BTU Wall Mounted Heat Pump Air Handler
      Model: LSN243HLV
      Item Number: 72236
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Low Wall Console
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    22000 BTU
    Heating Capacity
    27000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    21.5
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.5
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    11.0
    Cooling Power Input
    1760 Watts
    Heating Power Input
    2380 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Recommended Breaker Size
    25 Amps
    Dimensions
    Product Weight
    165 Pounds
    Shipping Weight
    169 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    9122552
    General Information
    Type
    Outdoor Condenser
    Product Line
    Extended Pipe
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    24000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    164 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    31 1/2 Inches
    Product Width
    34 1/4 Inches
    Product Depth
    12 5/8 Inches
    Product Weight
    125 Pounds
    Shipping Weight
    133 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    Extended Pipe
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A

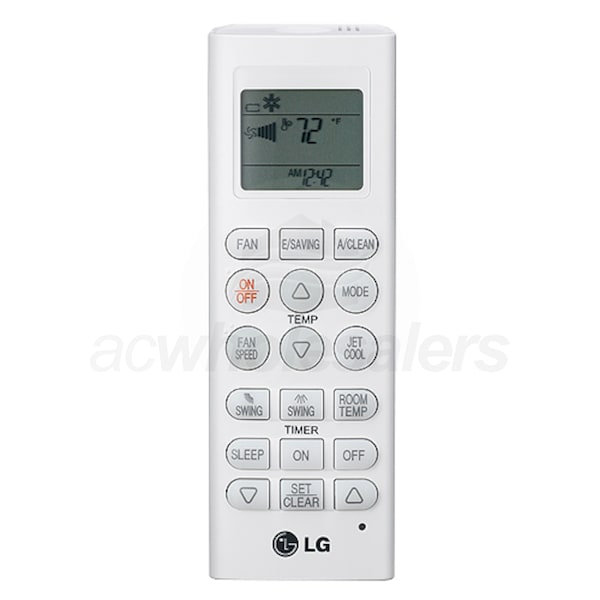

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Maximum Air Flow
    953 CFM
    Minimum Air Flow
    530 CFM
    Minimum Sound Level
    37 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    13 5/8 Inches
    Product Width
    46 7/8 Inches
    Product Depth
    10 7/16 Inches
    Product Weight
    40 Pounds
    Shipping Weight
    46 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
