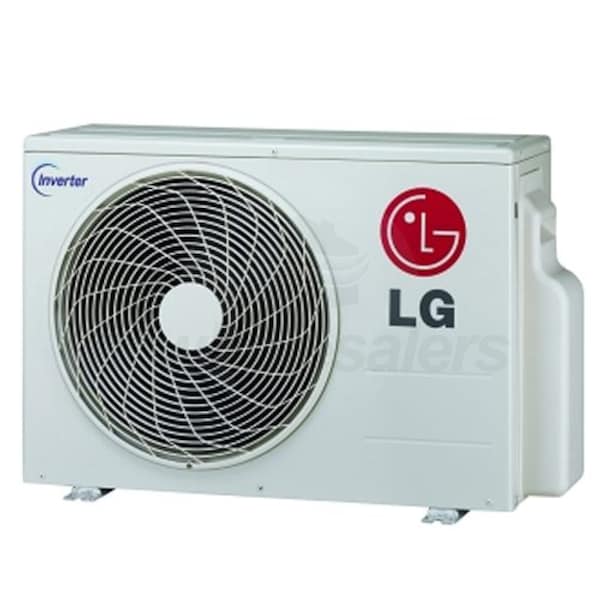

LG - 9k BTU - Mega Outdoor Condenser - 115V - Single Zone Only

Model: LSU090HXV2 Item Number: 99986
LG LSU090HXV2
PREVIOUS
NEXT
LG LSU090HXV2
Enlarge Image
LG LSU090HXV2
LG LSU090HXV2
Watch Video
LG LSU090HXV2
Watch Video
LG LSU090HXV2
Watch Video
LG LSU090HXV2
Watch Video
LG LSU090HXV2
Watch Video
View All
Originally $700.00, you save 10%
Our Price: $630.00
synchrony card icon
$105 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, November 25th
Shipping to60601
LG - 9k BTU - Mega Outdoor Condenser - 115V - Single Zone Only
LG - 9k BTU - Mega Outdoor Condenser - 115V - Single Zone Only Model: LSU090HXV2 Item Number: 99986
$630.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    67 Pounds Learn More
    67 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Outdoor Condenser
    Product Line
    Mega
Capacity (BTU/hr)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for LG LSU090HXV2

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LSU090HXV2 is a single zone mini split outdoor condenser capable of supplying ductless heating and cooling to any room in your home. With inverter technology and quiet operation this well-rounded mini split outdoor condenser is an easy choice for any system. This product requires a compatible indoor unit for functionality.
  • Inverter Technology
  • LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LSU090HXV2's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design
  • Thanks to a brushless direct current motor and a twin rotary compressor, the LSU090HXV2 is significantly quieter than traditional air conditioning systems. These components reduce mechanical sound, electrical sound, and vibrations within the unit.
  • Product Note
    This product requires a compatible LG mini split outdoor condenser and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    Specifications
    View More

    Specifications

    General Information
    Type
    Outdoor Condenser
    Product Line
    Mega
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    UPC
    048231390637
    Performance
    Cooling BTU
    9000
    Heating BTU
    10900
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    50 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    14 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    15 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Maximum Line Length
    49.2 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    19 1/2 Inches
    Product Width
    28 1/4 Inches
    Product Depth
    9 1/16 Inches
    Product Weight
    67 Pounds
    Shipping Weight
    79 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
