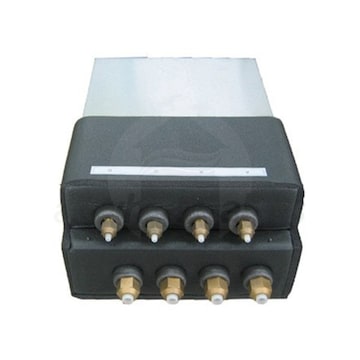

LG Multi F - Branch Box - 4 Ports

Model: PMBD3640 Item Number: 45715
LG PMBD3640
PREVIOUS
NEXT
LG PMBD3640
Enlarge Image
Our Price: $394.00
synchrony card icon
$66 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Wednesday, December 18th
Shipping to60601
LG Multi F - Branch Box - 4 Ports
LG Multi F - Branch Box - 4 Ports Model: PMBD3640 Item Number: 45715
$394.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    16 Pounds Learn More
    16 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Accessories
    UPC
    048231368179
Number of Ports
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for LG PMBD3640

The PMBD3640 is a four port branch distribution unit for LG's Multi F LMU540HV mini split outdoor condensers. A branch distribution unit is required to provide power, communication, and refrigerant flow from the LMU540HV to Multi F mini split indoor units.
  • Simple Installation
  • This branch distribution unit features flared joints to improve the speed and ease of installation.
  • Product Compatible With
  • LG LMU360HHV Mini Split Outdoor Condenser
  • LG LMU420HHV Mini Split Outdoor Condenser
  • LG LMU480HV Mini Split Outdoor Condenser
  • LG LMU540HV Mini Split Outdoor Condenser
  • LG LMU600HV Mini Split Outdoor Condenser
  • LG LMU361HHV Mini Split Outdoor Condenser
  • LG LMU421HHV Mini Split Outdoor Condenser
  • LG LMU480HHV Mini Split Outdoor Condenser
  • LG LMU483HV Mini Split Outdoor Condenser
  • LG LMU543HV Mini Split Outdoor Condenser
  • LG LMU601HV Mini Split Outdoor Condenser
  • Product Note
    All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box and from the branch box to the indoor unit.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split Accessories
    UPC
    048231368179
    General Information
    Type
    Branch Box
    Product Line
    Multi F
    Product Category
    Mini Split Accessories
    Ports Quantity
    4
    Performance
    Maximum Port Capacity
    24000 BTU
    Maximum Total Port Capacity
    73000 BTU
    Electrical Data
    Power Consumption
    32 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    3/8 Inch
    Product Height
    5 11/12 Inches
    Product Width
    9 41/48 Inches
    Product Depth
    11 13/16 Inches
    Product Weight
    16 Pounds
    Shipping Weight
    18 Pounds
    Certifications
    Country of Origin
    Korea
