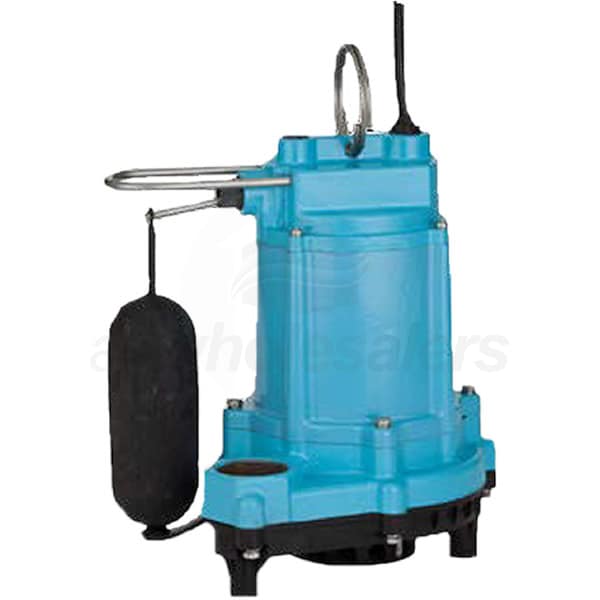

Little Giant 6EC-CIA-SFS Sump Pump - 20' Power Cord & Float Switch

Model: 506804 Item Number: 62945
Little Giant 506804
PREVIOUS
NEXT
Little Giant 506804
Little Giant 506804
Enlarge Image
Little Giant 506804
Little Giant 506804
Watch Video
Little Giant 506804
Watch Video
Little Giant 506804
Watch Video
Little Giant 506804
View All
Our Price: $230.00
In-Stock
Ships Thursday, April 3rd
Shipping to43085
Little Giant 6EC-CIA-SFS Sump Pump - 20' Power Cord & Float Switch
Little Giant 6EC-CIA-SFS Sump Pump - 20' Power Cord & Float Switch Model: 506804 Item Number: 62945
$230.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Sump Pump
Recommended Accessories
View More
Installation Accessories
Little Giant CV-114/112 Slip-On Sump Pump Check Valve 1-1/4" or 1-1/2"
Model: 599059
Qty
$23.00
Only 1 In-Stock
Add To Cart
Features
View More

Features

Overview for Little Giant 506804

Overview for Little Giant 506804

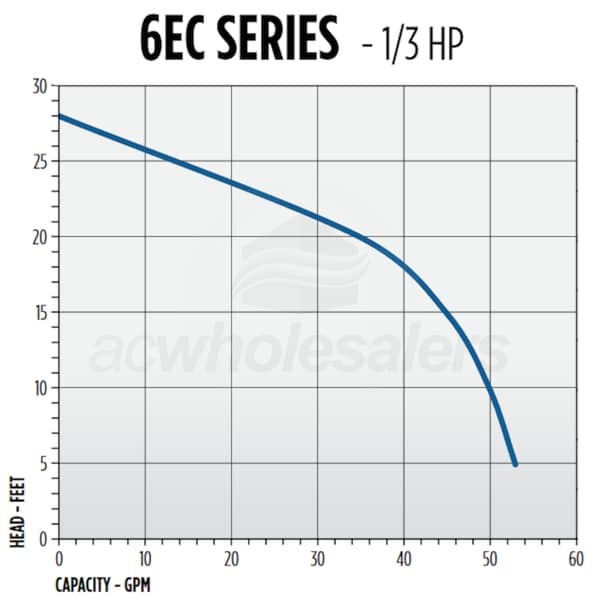

Little Giant 6EC Series pumps feature 1 / 3 HP Permanent Split Capacitor ( PSC ) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1 / 3 hp 6EC series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warrranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Sump Pump
    Base
    Base Material
    Polypropylene
    Min Sump Basin Size
    18 Inch
    Motor
    Voltage
    120 Volt
    Thermal Protection
    Yes
    Power Cord Length
    20 Feet
    Oil Free Motor
    No
    Pump
    Housing Material
    Cast Iron
    Impeller Material
    Nylon
    Solids Handling Size
    .5 inch
    Float Type
    Vertical Float
    GPH @ 0 feet
    3180
    GPH @ 5 feet
    3180
    GPH @ 10 feet
    3000
    GPH @ 15 feet
    2520
    GPH @ 20 feet
    2040
    Discharge Port Size
    1-1/2 Inch
    Check Valve Included
    No
    Float On
    8-11 Inches
    Float Off
    2-5 Inches
    Manual Override
    No
    Engine
    Horsepower
    .33 HP
    Overview
    Product Category
    Sump Pump
    Weight
    29 Pounds
    Consumer Warranty
    2 Years
    Product Length
    10.66 Inches
    Product Width
    8.48 Inches
    Product Height
    11.28 Inches
    UPC
    010121149052
    Reviews
    5.0 out of 5 stars5.0 out of 5 stars
    (1)
    View More

    Reviews

    Overall Rating from 1 Reviews
    icons-ratings-full
    5.00 / 5
    5 Stars
    (1)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Star
    (0)
    100%of Customers Recommend This Product
    Features
    5.0/5
    Quality
    5.0/5
    Performance
    5.0/5
    Value
    5.0/5
    Sort By:
    5
    Rated Out Of 5
    5.0 out of 5 stars5.0 out of 5 stars
    An excellent product.
    By KJHALF
    Check Mark
    KJHALF Recommends This
    Review Posted 05/06/2017
    Had BIG rain here last week. Backyard not soggy as before the pump. Installation not difficult.Highly recommend.
