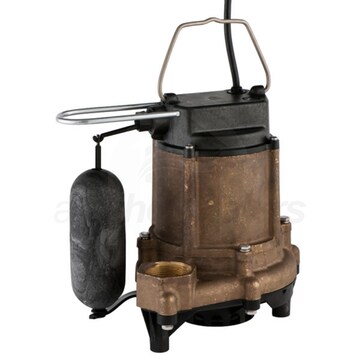

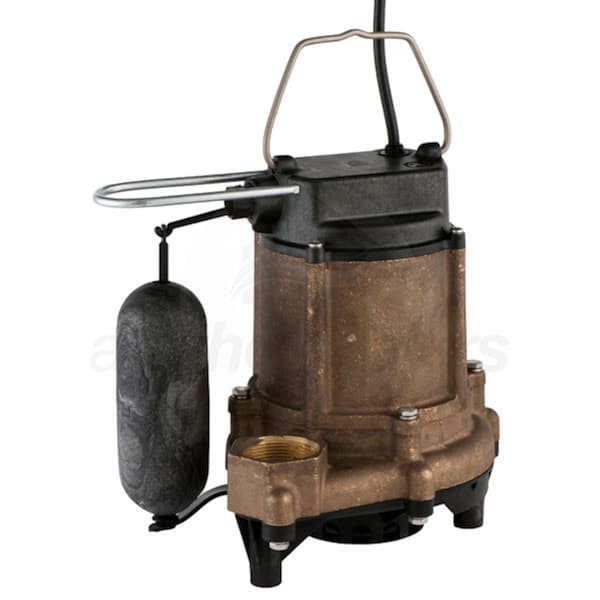

Little Giant 10EN-CBA-SFS Automatic Submersible Sump Pump - Bronze

Model: 511343 Item Number: 70635
Little Giant 511343
PREVIOUS
NEXT
Little Giant 511343
Little Giant 511343
Enlarge Image
Little Giant 511343
Little Giant 511343
Watch Video
Little Giant 511343
Watch Video
Little Giant 511343
Watch Video
Little Giant 511343
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Base Material
    Thermoplastic
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Little Giant 511343

Overview for Little Giant 511343

Little Giant 10EN Series pumps feature 1 / 2 HP Permanent Split Capacitor ( PSC ) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Touting a full-load rating of only 8.0 amps the 10EN produces 67 gpm @ 5 ft. of head and a maximum shut off of 30 ft. In addition to a stainless intake plate, the 10EN also features a cast iron cover on the manual and RF ( remote float switch ) versions.
  • Bronze Submersible Sump Pump
  • Continuous duty rated for residential & light commercial use
  • Polypropylene Base w/ Epoxy Coated Cast Bronze Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • A great option for sump pits w/ brine water (water softener)
  • 1/2 HP PSC w/ Thermal Overload Protection
  • Permanent Split Capacitor (PSC) motor is cooler running
  • Vortex Style Nylon Impeller
  • Corrosion resistant design minimizes clogging
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper Sintered-Sleeve Bearing & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 2-Year Limited Warranty
  • 20' Power Cord
  • Specifications
    View More

    Specifications

    Base
    Base Material
    Thermoplastic
    Motor
    Voltage
    120 Volt
    Running Amps
    8
    Thermal Protection
    Yes
    Power Cord Length
    20 Feet
    Oil Free Motor
    No
    Pump
    Outlet Diameter
    1-1/2 Inch
    Housing Material
    Cast-Bronze
    Solids Handling Size
    1/2 inch
    Maximum PSI
    13
    Float Type
    No Switch
    GPH @ 0 feet
    4020
    GPH @ 5 feet
    4020
    GPH @ 10 feet
    3660
    GPH @ 15 feet
    3000
    GPH @ 20 feet
    2400
    Discharge Port Size
    1-1/2 Inch
    Check Valve Included
    No
    Float On
    7-10 Inches
    Float Off
    2-5 Inches
    Manual Override
    Yes
    Max Head
    30 Feet
    Engine
    Horsepower
    .5 HP
    Overview
    Weight
    28 Pounds
    Consumer Warranty
    2 Years
    Product Length
    10.18 Inches
    Product Width
    10.6 Inches
    Product Height
    8.39 Inches
    UPC
    010121139558
