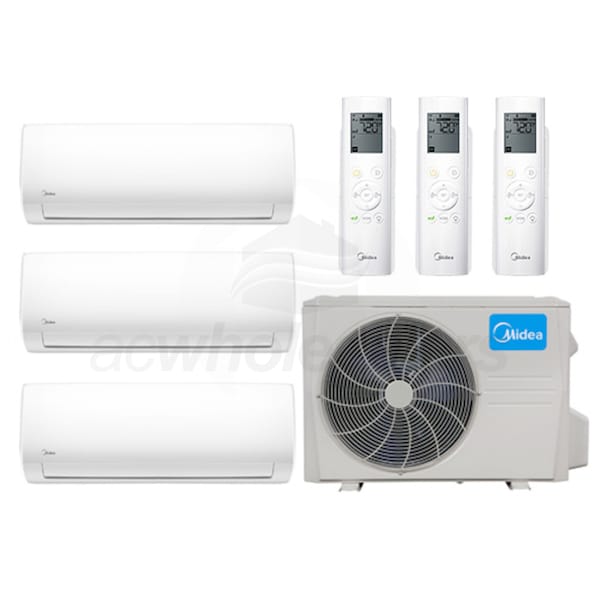

Midea 27,000 BTU 20.4 SEER Ductless Tri Zone Heat Pump 9 + 9 + 9

Model: MCH3U-27PHH2 3-MEHSU-09 Item Number: 88205
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Midea MCH3U-27PHH2 3-MEHSU-09
PREVIOUS
NEXT
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Enlarge Image
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
Midea MCH3U-27PHH2 3-MEHSU-09
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    170 Pounds Learn More
    170 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 4 items
  • product image
    (1) Midea 27,000 BTU 20.4 SEER Ductless Multi-Zone Heat Pump Condenser (MCH3U-27PHH2)
  • product image
    (3) Midea Premier Hyper 9,000 BTU Wall Mounted Heat Pump Air Handler 230V (MEHSU-09PHH2)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Midea MCH3U-27PHH2 3-MEHSU-09

Overview for Midea MCH3U-27PHH2 3-MEHSU-09PHH2 27,000 BTU 20.4 SEER Ductless Tri Zone Heat Pump System The Benefits of the Midea MCH3U-27PHH2 3-MEHSU-09PHH2 Heat Pump System The Midea MCH3U-27PHH2 3-MEHSU-09PHH2 is a convenient, economical and energy-efficient air conditioning and heating solution that can be used in one room or expanded to multiple rooms. Installing or expanding an existing air conditioner and heater system can be difficult and expensive, with all the ductwork that has to be completed. Rather than running additional ductwork throughout a home or building, the system Condenser pumps Cool or heated refrigerant through small lines directly to the air handler unit in the room. The Midea MCH3U-27PHH2 3-MEHSU-09PHH2 system condenser is conveniently placed outside, with lines connecting to the wall mounted unit inside. Because the condener unit is not placed inside the house or in the window it offers an extremely quiet option. What is an inverter? The invert controls the operating speed of the DC motor inside the condenser by controlling the frequency and voltage of the power supplied to the motor. The Midea inverter controlled compressor runs at the RPM to provide the best capacity and efficiency. The Midea Company Profile The Midea Group has become a leading manufacturer in appliances and HVAC systems. The Midea company has more than 60 overseas branches and over 20 production bases worldwide. Midea products are exported to more than 200 countries and regions around the world. The Midea Company invests at least three percent of global revenues into RAC/HVAC research and development every year.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 4 items
    • product kit image
      Midea 27,000 BTU 20.4 SEER Ductless Multi-Zone Heat Pump Condenser
      Model: MCH3U-27PHH2
      Item Number: 84575
      Quantity: 1
    • product kit image
      Midea Premier Hyper 9,000 BTU Wall Mounted Heat Pump Air Handler 230V
      Model: MEHSU-09PHH2
      Item Number: 84592
      Quantity: 3
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    MCH3U-27PHH2 Specifications
    MEHSU-09PHH2 Specifications
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    3
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9 + 9 + 9
    Performance
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    25
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    14
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    60 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    9 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Weight
    170 Pounds
    Shipping Weight
    175 Pounds
    Liquid Valve Connection Size
    1/4 Inch
    Suction Valve Connection Size
    3/8 Inch
    Certifications
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    63.4 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    25 Amps
    Recommended Breaker Size
    35 Amps
    Dimensions
    Suction Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    31 43/48 Inches
    Product Width
    37 1/4 Inches
    Product Depth
    16 7/48 Inches
    Product Weight
    149.91 Pounds
    Shipping Weight
    152 Pounds
    Certifications
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Color
    White
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Heating Capacity
    12000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    24.7
    Maximum Air Flow
    294 CFM
    Minimum Air Flow
    159 CFM
    Minimum Operating Temperature
    -22 F
    Maximum Operating Temperature
    122 F
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    27 Sones
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    9 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Drain Outlet Diameter
    5/8 Inch
    Product Height
    11 19/24 Inches
    Product Width
    31 43/48 Inches
    Product Depth
    7 7/8 Inches
    Product Weight
    18 Pounds
    Shipping Weight
    28 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
