NewNewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
168 Pounds168 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

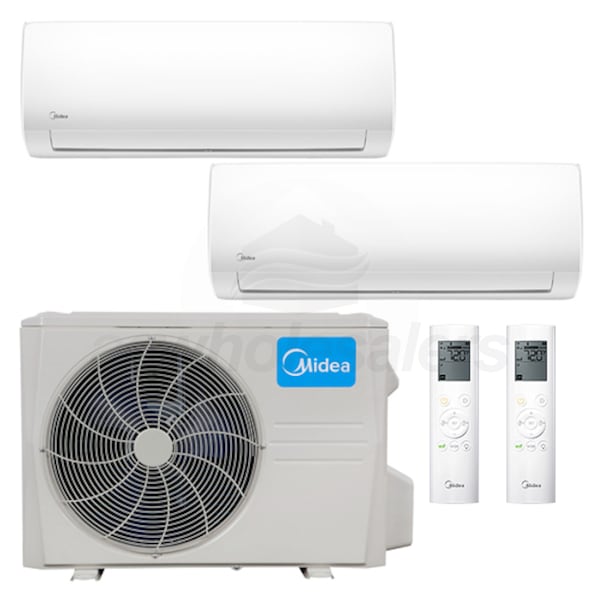

Overview for Midea MCH3U-27PHH2 MEHSU-09PHH2 MEHSU-18PHH2 27,000 BTU 20.4 SEER Ductless Dual Zone Heat Pump SystemThe Benefits of the Midea MCH3U-27PHH2 MEHSU-09PHH2 MEHSU-18PHH2 Heat Pump System
The Midea MCH3U-27PHH2 MEHSU-09PHH2 MEHSU-18PHH2 is a convenient, economical and energy-efficient air conditioning and heating solution that can be used in one room or expanded to multiple rooms.
Installing or expanding an existing air conditioner and heater system can be difficult and expensive, with all the ductwork that has to be completed. Rather than running additional ductwork throughout a home or building, the system Condenser pumps Cool or heated refrigerant through small lines directly to the air handler unit in the room.
The Midea MCH3U-27PHH2 MEHSU-09PHH2 MEHSU-18PHH2 system condenser is conveniently placed outside, with lines connecting to the wall mounted unit inside. Because the condener unit is not placed inside the house or in the window it offers an extremely quiet option.
What is an inverter?
The invert controls the operating speed of the DC motor inside the condenser by controlling the frequency and voltage of the power supplied to the motor. The Midea inverter controlled compressor runs at the RPM to provide the best capacity and efficiency.
The Midea Company Profile
The Midea Group has become a leading manufacturer in appliances and HVAC systems. The Midea company has more than 60 overseas branches and over 20 production bases worldwide. Midea products are exported to more than 200 countries and regions around the world. The Midea Company invests at least three percent of global revenues into RAC/HVAC research and development every year.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Midea Premier Hyper 9,000 BTU Wall Mounted Heat Pump Air Handler 230V
Model: MEHSU-09PHH2
Item Number: 84592
Quantity: 1
Specifications
Specifications
Included In This Bundle
Bundle Overview
Bundle Overview
MCH3U-27PHH2 Specifications
MEHSU-09PHH2 Specifications
General Information
Type
Wall Mounted
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
2
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 18
Performance
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63.4 dB
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
25 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
37 43/48 Inches
Product Width
37 1/4 Inches
Product Depth
16 7/48 Inches
Product Weight
168 Pounds
Shipping Weight
180 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
1/4 Inch
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years

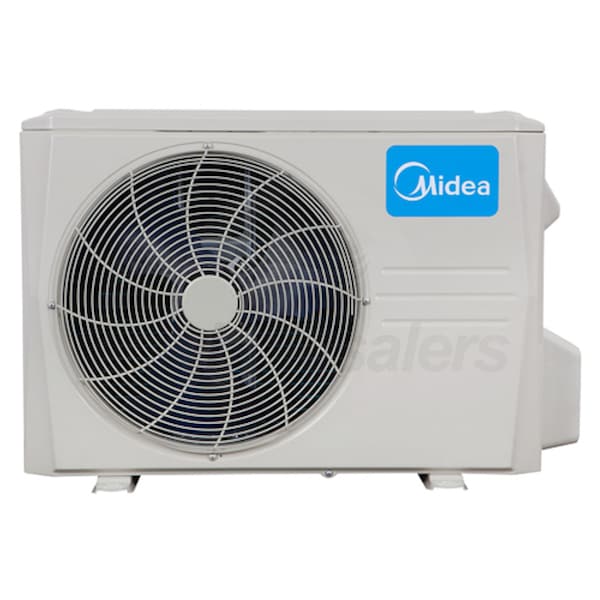

General Information
Type
Outdoor Condenser
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63.4 dB
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
25 Amps
Recommended Breaker Size
35 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
31 43/48 Inches
Product Width
37 1/4 Inches
Product Depth
16 7/48 Inches
Product Weight
149.91 Pounds
Shipping Weight
152 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Color
White
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
12000 BTU
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
24.7
Maximum Air Flow
294 CFM
Minimum Air Flow
159 CFM
Minimum Operating Temperature
-22 F
Maximum Operating Temperature
122 F
Maximum Sound Level Maximum Sound LevelThe sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
27 Sones
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
11 19/24 Inches
Product Width
31 43/48 Inches
Product Depth
7 7/8 Inches
Product Weight
18 Pounds
Shipping Weight
28 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
